D Series Series

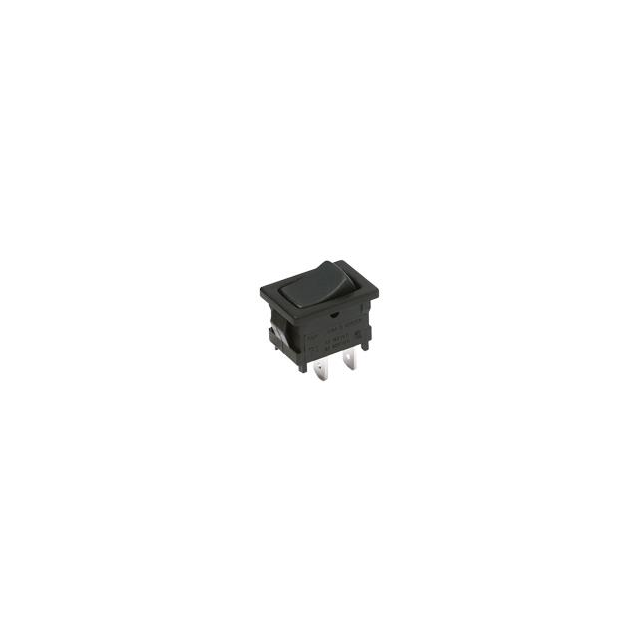

Miniature Snap-in Power Rocker Switch
Manufacturer: Littelfuse/Commercial Vehicle Products
Catalog
Miniature Snap-in Power Rocker Switch
...
| Part | Color - Actuator/Cap | Current Rating (Amps) | Actuator Type | Electrical Life | Mounting Type | Termination Style | Voltage Rating - AC | Circuit | Actuator Marking | Switch Function | Approval Agency | Operating Temperature [Max] | Operating Temperature [Min] | Panel Cutout Dimensions [y] | Panel Cutout Dimensions | Panel Cutout Dimensions [x] | Termination Style |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

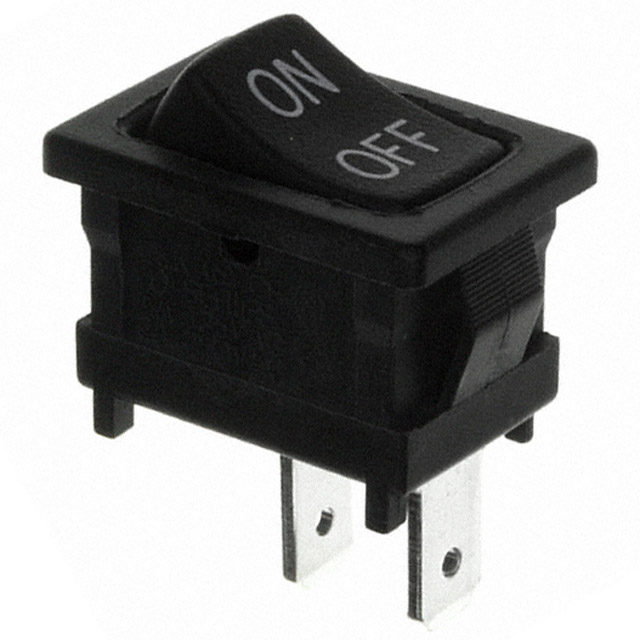

 Littelfuse/Commercial Vehicle Products | Black | 4 A | Concave (Curved) | 10000 Cycles | Panel Mount Snap-In | Quick Connect - 0.187" (4.7mm) | 125 V | SPST | ON OFF Vertical | On-Off | cULus | 65 °C | -30 ░C | 12.9 mm | Rectangular | 19.2 mm | |
 Littelfuse/Commercial Vehicle Products | Black | 4 A | Paddle | 10000 Cycles | Panel Mount Snap-In | Quick Connect - 0.187" (4.7mm) | 125 V | DPDT | No Marking | On-On | cULus | 65 °C | -30 ░C | 19.2 mm | 22.53 mm | ||
Littelfuse/Commercial Vehicle Products | White | 10 A | Concave (Curved) | 10000 Cycles | Panel Mount Snap-In | Quick Connect - 0.187" (4.7mm) | 125 V | SPST | No Marking | On-Off | cULus | 65 °C | -30 ░C | 12.9 mm | Rectangular | 19.2 mm | |
 Littelfuse/Commercial Vehicle Products | Red | 10 A | Concave (Curved) | 10000 Cycles | Panel Mount Snap-In | Quick Connect - 0.187" (4.7mm) | 125 V | DPDT | No Marking | On-On | cULus | 65 °C | -30 ░C | 19.2 mm | 22.53 mm | ||
 Littelfuse/Commercial Vehicle Products | Black | 10 A | Concave (Curved) | 10000 Cycles | Panel Mount Right Angle Snap-In | PC Pin | 125 V | SPDT | No Marking | On-On | cULus | 65 °C | -30 ░C | 12.9 mm | Rectangular | 19.2 mm | |

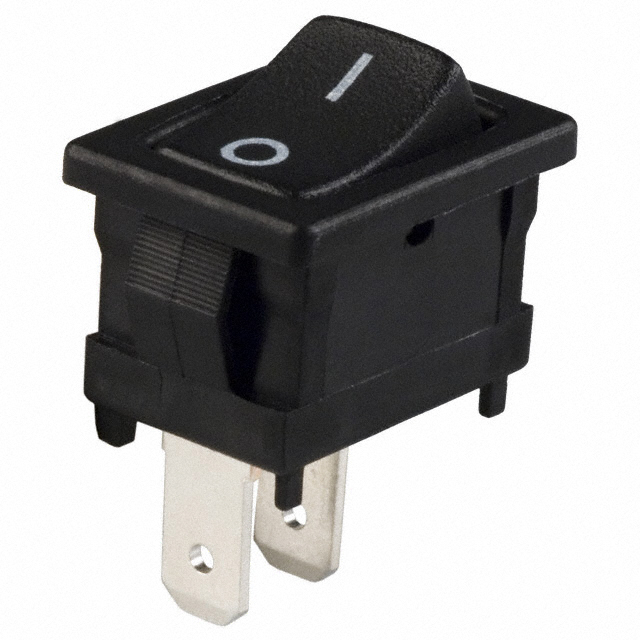

 Littelfuse/Commercial Vehicle Products | Black | 4 A | Concave (Curved) | 10000 Cycles | Panel Mount Snap-In | Quick Connect - 0.187" (4.7mm) | 125 V | SPST | O - | On-Off | cULus | 65 °C | -30 ░C | 12.9 mm | Rectangular | 19.2 mm | |
Littelfuse/Commercial Vehicle Products | Black | 4 A | Concave (Curved) | 10000 Cycles | Panel Mount Snap-In | Quick Connect Solder | 125 V | SPDT | Dot | On-On | cULus | 65 °C | -30 ░C | 12.9 mm | Rectangular | 19.2 mm | 0.187 in 4.7 mm |
Littelfuse/Commercial Vehicle Products | White | 4 A | Concave (Curved) | 10000 Cycles | Panel Mount Snap-In | Quick Connect - 0.187" (4.7mm) | 125 V | SPST | ON OFF Vertical | On-Off | cULus | 65 °C | -30 ░C | 12.9 mm | Rectangular | 19.2 mm | |
Littelfuse/Commercial Vehicle Products | Red | 10 A | Concave (Curved) | 10000 Cycles | Panel Mount Snap-In | Quick Connect - 0.187" (4.7mm) | 125 V | DPDT | No Marking | On-On | cULus | 65 °C | -30 ░C | 19.2 mm | 22.53 mm | ||
 Littelfuse/Commercial Vehicle Products | Black | 4 A | Concave (Curved) | 10000 Cycles | Panel Mount Snap-In | Quick Connect - 0.187" (4.7mm) | 125 V | SPDT | No Marking | On-On | cULus | 65 °C | -30 ░C | 12.9 mm | Rectangular | 19.2 mm |
Key Features
• Momentary and maintained models
• PC and quick connect terminals
• Recessed bracket available — prevents accidental actuation
Description
AI
The D series from C&K are miniature snap-in power rocker switches that are commonly used by designers of small appliance, computer and peripheral or medical instrumentation products. C&K’s D series switches feature both momentary and maintained models, PC and quick connect terminals – and have an available recessed bracket, helping to prevent accidental actuation.
