LZ4-04 Series

Catalog

LED LUXIGEN RGBW 624/525/457

Part	Thermal Resistance of Package	Supplier Device Package	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Current - Max [custom]	Current - Max [custom]	Current - Max [custom]	Current - Max [custom]	Color	Package / Case	Mounting Type	Voltage - Forward (Vf) (Typ)	Luminous Flux @ Current/Temperature [custom]	Luminous Flux @ Current/Temperature [custom]	Luminous Flux @ Current/Temperature [custom]	Luminous Flux @ Current/Temperature [custom]	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Wavelength	Viewing Angle	Lumens/Watt @ Current - Test [custom]	Lumens/Watt @ Current - Test [custom]	Lumens/Watt @ Current - Test [custom]	Lumens/Watt @ Current - Test [custom]	Temperature - Test	Orientation	Current - DC Forward (If) (Max) [Max]	Radiant Intensity (Ie) Min @ If [Min]	Wavelength [Min]	Wavelength [Max]	Type	Operating Temperature
ams-OSRAM USA INC. LZ4-04MDCB-0000	0.7 °C/W	SMD	0.276 "	0.276 in	7 mm	7 mm	1 A	1 A	1 A	1 A	Blue Green Red White	2828 (7070 Metric)	Surface Mount	2.5 V 3.3 V 3.3 V 3.7 V	24 lm	133 lm	183 lm	82 lm	0.065 "	1.65 mm	457 nm 525 nm 624 nm 6500 K	110 °	47 lm/W	10 lm/W	79 lm/W	51 lm/W	25 °C

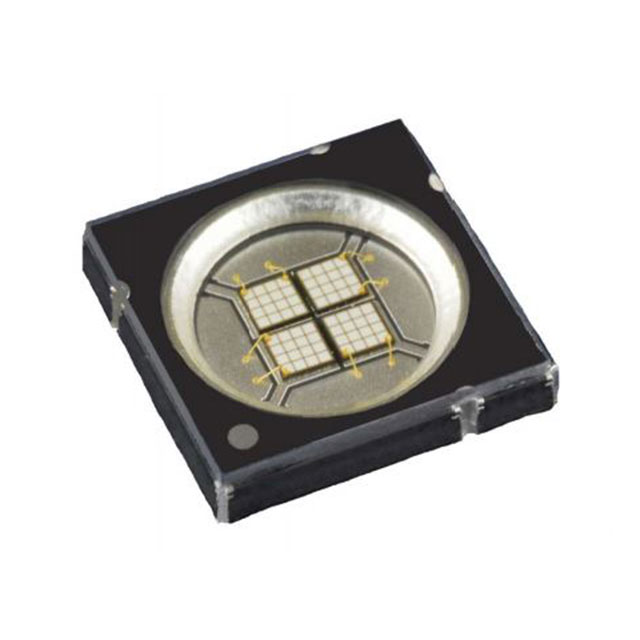

ams-OSRAM USA INC. LZ4-04UV0R-0000												2828 (7070 Metric)	Surface Mount	15.2 V							368 nm	110 °						Top View	1 A	3800 mW/sr	365 nm	370 nm	Ultraviolet (UV)	130 °C
