RF CONNECTORS / COAXIAL CONNECTORS TYPE N RIGHT ANGLE PLUG
| Part | Impedance | Mounting Type | Contact Termination | Number of Ports | Connector Style | Cable Group | Cable Group | Housing Color | Center Contact Material | Shield Termination | Connector Type | Frequency - Max [Max] | Fastening Type | Center Contact Plating | Mating Cycles | Dielectric Material | Body Material | Operating Temperature [Max] | Operating Temperature [Min] | Includes | Voltage Rating | Body Finish | Insertion Loss | Convert To (Adapter End) | Adapter Type | Convert From (Adapter End) | Conversion Type | Style | Adapter Series | Mounting Feature | Ingress Protection |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Rosenberger | 50 Ohms | Free Hanging (In-Line) Right Angle | Solder | 1 | N Type | RG-214 | 393 | Silver | Brass | Crimp | Plug Male Pin | 11 GHz | Threaded | ||||||||||||||||||

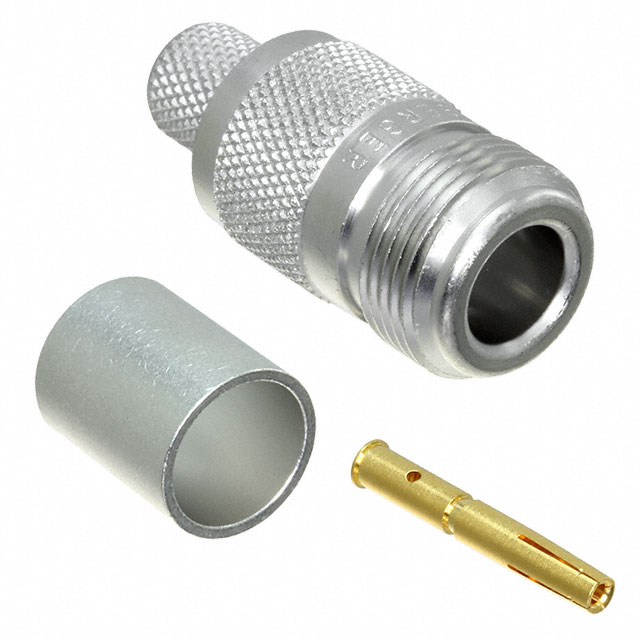

 Rosenberger | 50 Ohms | Free Hanging (In-Line) | Crimp | 1 | N Type | RG-213 | Silver | Beryllium Copper | Crimp | Female Socket Jack | 11 GHz | Threaded | Gold | 500 | Polytetrafluoroethylene (PTFE) | Brass | 155 C | -55 C | 1 Connector 1 Contact 1 Ferrule | 500 V | White Bronze | ||||||||||

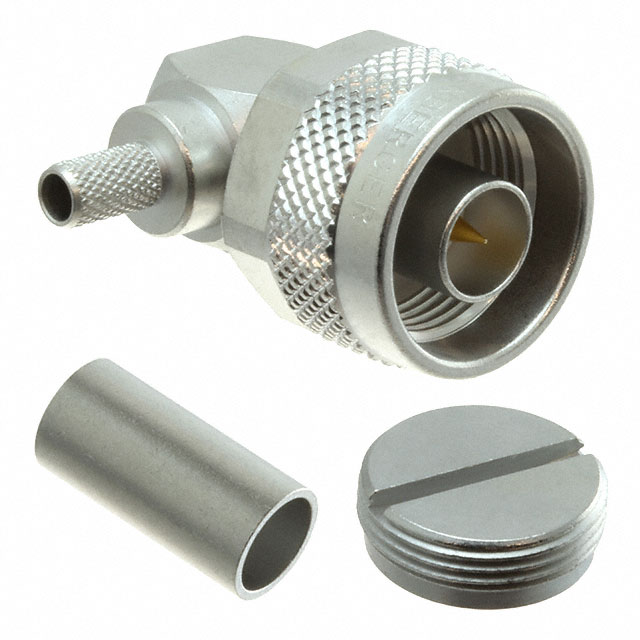

 Rosenberger | 50 Ohms | Free Hanging (In-Line) Right Angle | Solder | 1 | N Type | 141 RG-58C | Silver | Brass | Crimp | Plug Male Pin | 11 GHz | Threaded | Gold | 500 | Polytetrafluoroethylene (PTFE) | Brass | 155 C | -55 C | 1 Connector 1 End Cap 1 Ferrule | 500 V | White Bronze | 0.05 dB | |||||||||
 Rosenberger | 50 Ohms | Free Hanging (In-Line) | 11 GHz | Gold | N Jack Female Socket (2) | Plug to Jack | N Plug Male Pin | Same Series | T-Shape | N to N Dual | |||||||||||||||||||||
 Rosenberger | 50 Ohms | Free Hanging (In-Line) | Solder | 1 | N Type | Silver | Brass | Solder | Plug Male Pin | 11 GHz | Threaded | ||||||||||||||||||||

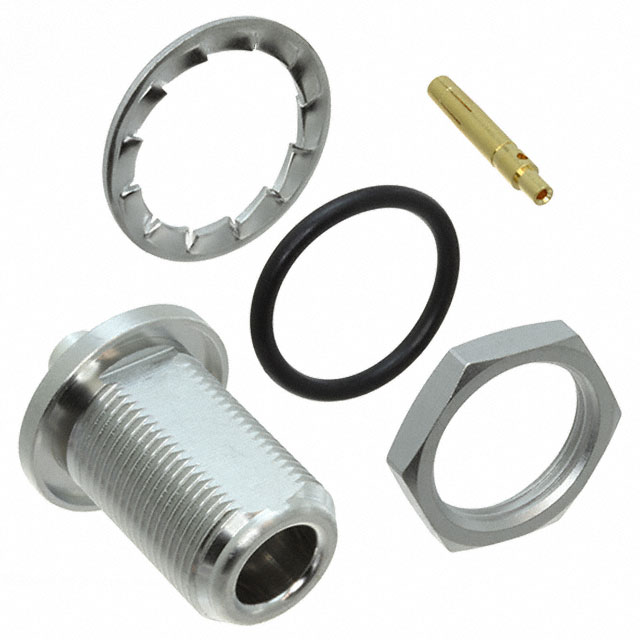

 Rosenberger | 50 Ohms | Panel Mount | Crimp | 1 | N Type | 141 RG-58C | Silver | Beryllium Copper | Crimp | Female Socket Jack | 11 GHz | Threaded | Gold | 500 | Polytetrafluoroethylene (PTFE) | Brass | 110 °C | -25 °C | 1 Connector 1 Contact 1 Ferrule 1 Lockwasher 1 Nut | 500 V | White Bronze | 0.05 dB | Bulkhead - Front Side Nut | IP67 - Dust Tight Waterproof | |||||||
 Rosenberger | 50 Ohms | Panel Mount | Solder | 1 | N Type | Silver | Beryllium Copper | Solder | Female Socket Jack | 11 GHz | Threaded | Gold | 500 | Polytetrafluoroethylene (PTFE) | Brass | 155 C | -55 C | 500 V | White Bronze | Flange | |||||||||||
 Rosenberger | 50 Ohms | Free Hanging (In-Line) Right Angle | Solder | 1 | N Type | RG-142B | 223 400 | Silver | Brass | Crimp | Plug Male Pin | 11 GHz | Threaded | Gold | 500 | Polytetrafluoroethylene (PTFE) | Brass | 155 C | -55 C | 1 Connector 1 End Cap 1 Ferrule | 500 V | White Bronze | 0.05 dB | ||||||||
 Rosenberger | 50 Ohms | Panel Mount | Solder | 1 | N Type | Silver | Beryllium Copper | Solder | Female Socket Jack | 11 GHz | Threaded | Gold | 500 | Polytetrafluoroethylene (PTFE) | Brass | 110 °C | -25 °C | 1 Connector 1 Lockwasher 1 Nut | 500 V | White Bronze | 0.05 dB | Bulkhead - Front Side Nut | IP67 - Dust Tight Waterproof |
