24_BNC-75 Series
Manufacturer: Huber+Suhner, Inc.
Beta
⌘K

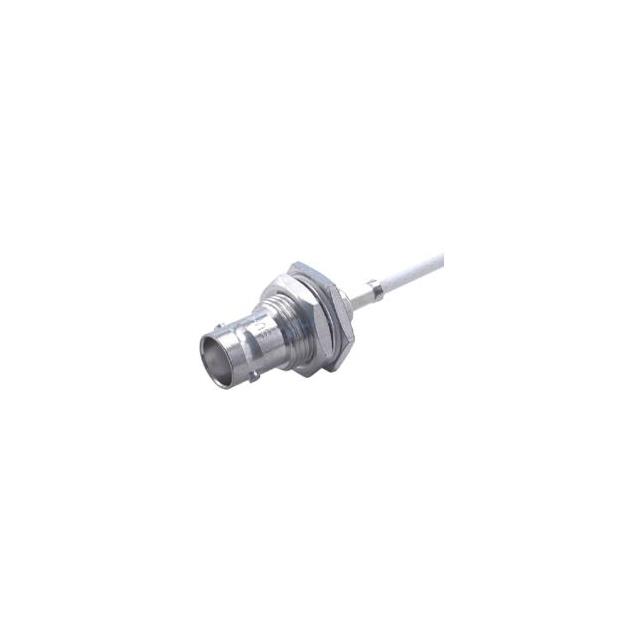

24_BNC-75-2-6/133_NH
| Part | Body Finish | Mating Cycles | Dielectric Material | Body Material | Voltage Rating | Operating Temperature [Min] | Operating Temperature [Max] | Center Contact Plating | Frequency - Max [Max] | Center Contact Material | Impedance | Housing Color | Mounting Feature | Fastening Type | Connector Style | Mounting Type | Cable Group | Contact Termination | Connector Type | Shield Termination | Number of Ports |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Huber+Suhner, Inc. | White Bronze | 500 | Perfluoroalkoxy (PFA) Polytetrafluoroethylene (PTFE) | Brass | 500 V | -65 ░C | 165 °C | Gold | 1 GHz | Beryllium Copper Brass | 75 Ohms | Silver | Bulkhead - Front Side Nut | Bayonet Lock | BNC | Panel Mount | 187 RG-179 | Crimp | Female Socket Jack | Crimp | 1 |
 Huber+Suhner, Inc. | Gold | 500 | Perfluoroalkoxy (PFA) Polytetrafluoroethylene (PTFE) | Brass | -65 ░C | 165 °C | Gold | 1 GHz | Beryllium Copper | 75 Ohms | Gold | Bulkhead - Front Side Nut | Bayonet Lock | BNC | Panel Mount | Solder | Female Socket Jack | Crimp | 1 | ||
 Huber+Suhner, Inc. | Tri-Metal | 500 | Perfluoroalkoxy (PFA) Polytetrafluoroethylene (PTFE) | Brass | -65 ░C | 165 °C | Gold | 1 GHz | Beryllium Copper | 75 Ohms | Silver | Bulkhead - Front Side Nut | Bayonet Lock | BNC | Panel Mount | Solder | Female Socket Jack | Solder | 1 |
