10075025 Series

Catalog

CONN HEADER VERT 6POS 2MM

Part	Contact Finish Thickness - Post [custom]	Contact Finish Thickness - Post [custom]	Row Spacing - Mating	Row Spacing - Mating	Contact Shape	Current Rating (Amps)	Features	Contact Length - Post	Contact Length - Post	Connector Type	Material Flammability Rating	Voltage Rating	Number of Rows [custom]	Pitch - Mating	Pitch - Mating	Insulation Material	Style	Contact Material	Number of Positions	Insulation Height	Insulation Height	Contact Finish - Mating	Mounting Type	Shrouding	Contact Type	Number of Positions Loaded	Insulation Color	Contact Length - Mating	Contact Length - Mating	Termination	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Fastening Type	Contact Finish - Post	Contact Finish Thickness - Mating	Number of Positions [custom]	Contact Length - Post	Operating Temperature [Min]	Operating Temperature [Max]

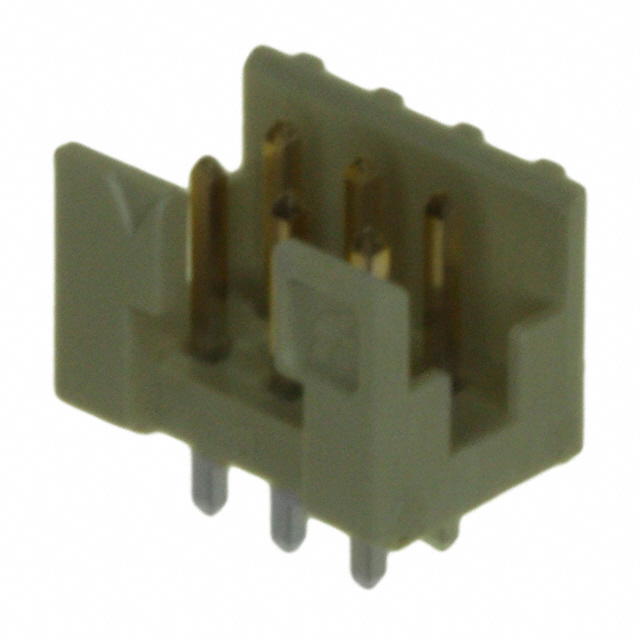

Amphenol ICC (FCI) 10075025-G01-06LF	78.7 µin	2 µm	2 mm	0.079 in	Square	2 A	Keying Slot	2 mm	0.079 in	Header	UL94 V-0	200 V	2	0.079 "	2 mm	Thermoplastic	Board to Board Cable	Copper Alloy	6	5.6 mm	0.22 in	Gold GXT™	Through Hole	Shrouded - 4 Wall	Male Pin	All	Natural	4 mm	0.157 in	Solder	0.76 Ám	30 Áin	Detent Lock	Tin
Amphenol ICC (FCI) 10075025-S01-50ULF	78.7 µin	2 µm	2 mm	0.079 in	Square	2 A	Keying Slot	2 mm	0.079 in	Header	UL94 V-0	200 V	2	0.079 "	2 mm	Thermoplastic	Board to Board Cable	Copper Alloy	50	5.6 mm	0.22 in	Gold GXT™	Through Hole	Shrouded - 4 Wall	Male Pin	All	Natural	4 mm	0.157 in	Solder	0.38 µm	15 µin	Detent Lock	Tin
Amphenol ICC (FCI) 10075025-F01-38ULF	78.7 µin	2 µm	2 mm	0.079 in	Square	2 A	Keying Slot	2 mm	0.079 in	Header	UL94 V-0	200 V	2	0.079 "	2 mm	Thermoplastic	Board to Board Cable	Copper Alloy	38	5.6 mm	0.22 in	Gold	Through Hole	Shrouded - 4 Wall	Male Pin	All	Natural	4 mm	0.157 in	Solder			Detent Lock	Tin	Flash

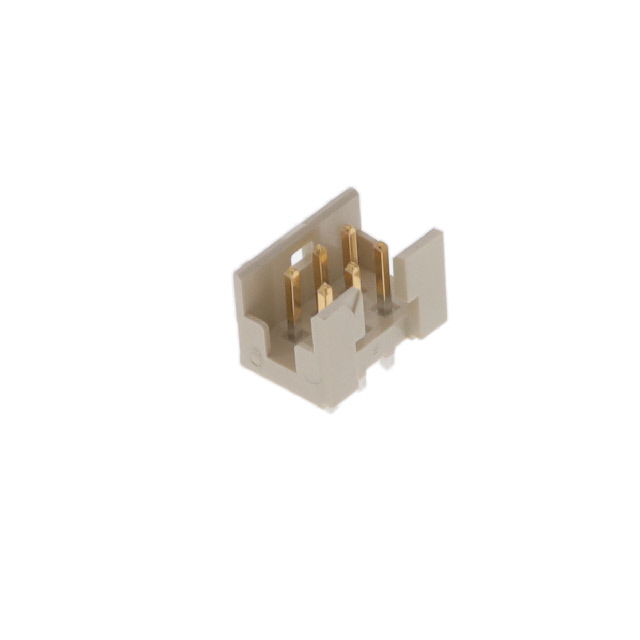

Amphenol ICC (FCI) 10075025-G01-06ULF	78.7 µin	2 µm	2 mm	0.079 in	Square	2 A	Keying Slot	2 mm	0.079 in	Header	UL94 V-0	200 V	2	0.079 "	2 mm	Thermoplastic	Board to Board Cable	Copper Alloy	6	5.6 mm	0.22 in	Gold GXT™	Through Hole	Shrouded - 4 Wall	Male Pin	All	Natural	4 mm	0.157 in	Solder	0.76 Ám	30 Áin	Detent Lock	Tin
Amphenol ICC (FCI) 10075025-F01-08ALF	78.7 µin	2 µm	2 mm	0.079 in	Square	2 A	Keying Slot Pick and Place	2 mm	0.079 in	Header	UL94 V-0	200 V	2	0.079 "	2 mm	Thermoplastic	Board to Board Cable	Copper Alloy	8	5.6 mm	0.22 in	Gold	Through Hole	Shrouded - 4 Wall	Male Pin	All	Natural	4 mm	0.157 in	Solder			Detent Lock	Tin	Flash
Amphenol ICC (FCI) 10075025-G01-48ULF	78.7 µin	2 µm	2 mm	0.079 in	Square	2 A	Keying Slot	2 mm	0.079 in	Header	UL94 V-0	200 V	2	0.079 "	2 mm	Thermoplastic	Board to Board Cable	Copper Alloy	48	5.6 mm	0.22 in	Gold GXT™	Through Hole	Shrouded - 4 Wall	Male Pin	All	Natural	4 mm	0.157 in	Solder	0.76 Ám	30 Áin	Detent Lock	Tin
Amphenol ICC (FCI) 10075025-S01-34ULF	78.7 µin	2 µm	2 mm	0.079 in	Square	2 A	Keying Slot	2 mm	0.079 in	Header	UL94 V-0	200 V	2	0.079 "	2 mm	Thermoplastic	Board to Board Cable	Copper Alloy		5.6 mm	0.22 in	Gold GXT™	Through Hole	Shrouded - 4 Wall	Male Pin	All	Natural	4 mm	0.157 in	Solder	0.38 µm	15 µin	Detent Lock	Tin		34
Amphenol ICC (FCI) 10075025-F02-16LF	78.7 µin	2 µm	2 mm	0.079 in	Square	2 A	Pick and Place Polarizing Key		2.5 mm	Header	UL94 V-0	200 VAC	2	0.079 "	2 mm	Thermoplastic	Board to Cable/Wire	Copper Alloy	16	5.9 mm	0.232 in	Gold GXT™	Through Hole	Shrouded - 4 Wall	Male Pin	All	Natural	4 mm	0.157 in	Solder			Push-Pull	Tin	Flash		0.098 in	-55 C	125 °C
Amphenol ICC (FCI) 10075025-S01-10ULF	78.7 µin	2 µm	2 mm	0.079 in	Square	2 A	Keying Slot	2 mm	0.079 in	Header	UL94 V-0	200 V	2	0.079 "	2 mm	Thermoplastic	Board to Board Cable	Copper Alloy	10	5.6 mm	0.22 in	Gold GXT™	Through Hole	Shrouded - 4 Wall	Male Pin	All	Natural	4 mm	0.157 in	Solder	0.38 µm	15 µin	Detent Lock	Tin

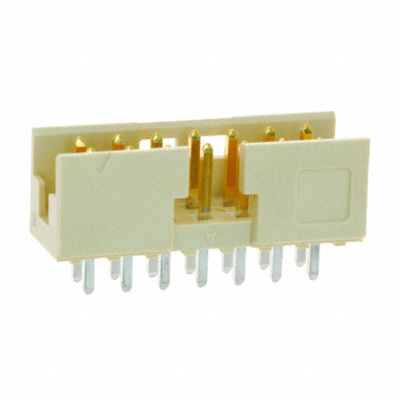

Amphenol ICC (FCI) 10075025-G01-14ULF	78.7 µin	2 µm	2 mm	0.079 in	Square	2 A	Keying Slot	2 mm	0.079 in	Header	UL94 V-0	200 V	2	0.079 "	2 mm	Thermoplastic	Board to Board Cable	Copper Alloy	14	5.6 mm	0.22 in	Gold GXT™	Through Hole	Shrouded - 4 Wall	Male Pin	All	Natural	4 mm	0.157 in	Solder	0.76 Ám	30 Áin	Detent Lock	Tin
