M2473 Series
Manufacturer: ALPHA WIRE
Beta
⌘K

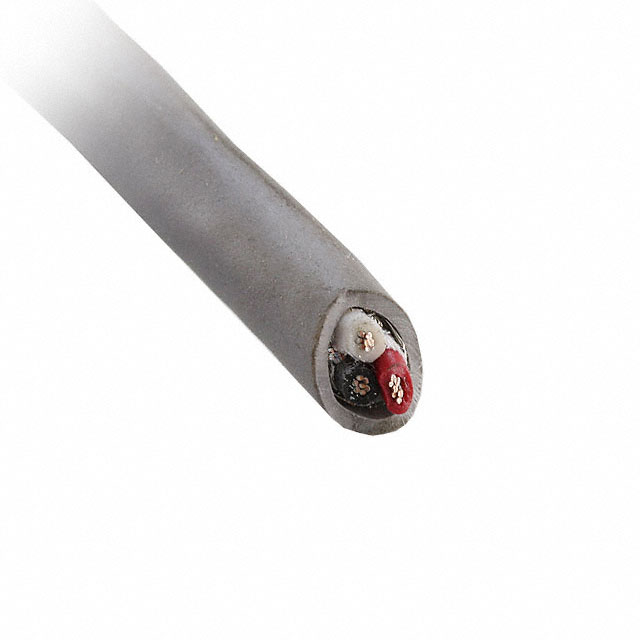

CABLE 3CON 22AWG SLATE SHLD 100'
| Part | Shield Coverage | Shield Material | Features | Operating Temperature [Max] | Operating Temperature [Min] | Ratings | Jacket Color | Conductor Strand [custom] | Conductor Strand [custom] | Number of Conductors | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Material | Length [x] | Length [x] | Wire Gauge | Conductor Material | Conductor Insulation | Voltage | Cable Type | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Shield Type | Length | Length |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ALPHA WIRE | 65 % 100 % | Aluminum Copper Tinned | Drain Wire Rip Cord | 80 °C | -20 ░C | UL Style 2464 | Slate | 28 AWG | 7 | 3 | 5.03 mm | 0.198 in | Poly-Vinyl Chloride (PVC) | 100 ft | 30.5 m | 22 AWG | Copper Tinned | Poly-Vinyl Chloride (PVC) | 300 VDC | Multi-Conductor | 0.813 mm | 0.032 in | Braid Foil | ||
ALPHA WIRE | 65 % 100 % | Aluminum Copper Tinned | Drain Wire Rip Cord | 80 °C | -20 ░C | UL Style 2464 | Slate | 28 AWG | 7 | 3 | 5.03 mm | 0.198 in | Poly-Vinyl Chloride (PVC) | 22 AWG | Copper Tinned | Poly-Vinyl Chloride (PVC) | 300 VDC | Multi-Conductor | 0.813 mm | 0.032 in | Braid Foil | 914.4 m | 3000 ' |
