MPL-AL6050 Series

Catalog

FIXED IND 2.2UH 12A 8.3 MOHM SMD

Part	Current Rating (Amps)	Current - Saturation (Isat)	Mounting Type	Inductance	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Inductance Frequency - Test	Type	Size / Dimension [x]	Size / Dimension [y]	Package / Case	Operating Temperature [Min]	Operating Temperature [Max]	Shielding	DC Resistance (DCR)
MONOLITHIC POWER SYSTEMS (MPS) MPL-AL6050-2R2	12 A	15 A	Surface Mount	2.2 µH	0.197 in	5 mm	100 kHz	Molded	0.26 " 6.6 mm	0.252 " 6.4 mm	2-SMD	-40 °C	155 °C	Unshielded	8.3 mOhm
MONOLITHIC POWER SYSTEMS (MPS) MPL-AL6050-3R3	10.1 A		Surface Mount	3.3 µH	0.197 in	5 mm	100 kHz	Molded	0.26 " 6.6 mm	0.252 " 6.4 mm	2-SMD	-40 °C	155 °C	Unshielded	11.5 mOhm
MONOLITHIC POWER SYSTEMS (MPS) MPL-AL6050-1R2	14.6 A	20 A	Surface Mount	1.2 µH	0.197 in	5 mm	100 kHz	Molded	0.26 " 6.6 mm	0.252 " 6.4 mm	2-SMD	-40 °C	155 °C	Unshielded	5.3 mOhm

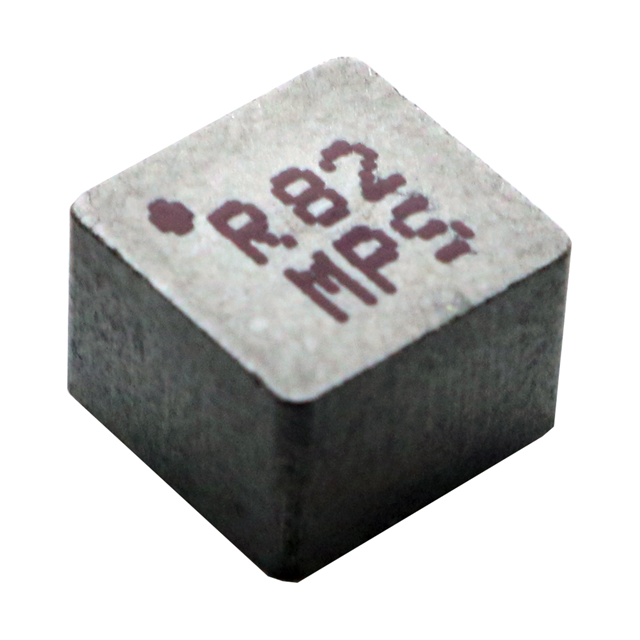

MONOLITHIC POWER SYSTEMS (MPS) MPL-AL6050-1R0	16.2 A	21 A	Surface Mount	1 µH	0.197 in	5 mm	100 kHz	Molded	0.26 " 6.6 mm	0.252 " 6.4 mm	2-SMD	-40 °C	155 °C	Unshielded	4.3 mOhm
MONOLITHIC POWER SYSTEMS (MPS) MPL-AL6050-4R7	7.5 A	11 A	Surface Mount	4.7 ÁH	0.197 in	5 mm	100 kHz	Molded	0.26 " 6.6 mm	0.252 " 6.4 mm	2-SMD	-40 °C	155 °C	Unshielded	16.5 mOhm
MONOLITHIC POWER SYSTEMS (MPS) MPL-AL6050-1R5	13.3 A	18 A	Surface Mount	1.5 µH	0.197 in	5 mm	100 kHz	Molded	0.26 " 6.6 mm	0.252 " 6.4 mm	2-SMD	-40 °C	155 °C	Unshielded	6 mOhm
