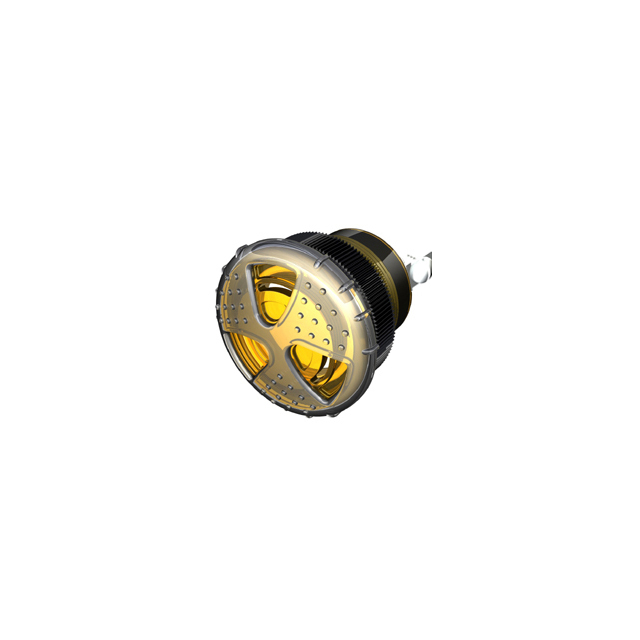

TLHC-V88Y Series
Manufacturer: Floyd Bell Inc
Beta
⌘K
BUZZER 35.81MM PNL MNT
| Part | Port Location | Size / Dimension [diameter] | Size / Dimension [diameter] | Frequency | Input Type | Driver Circuitry | Current - Supply [Min] [x] | Current - Supply [Max] [x] | Ingress Protection | Operating Mode | Mounting Type | Sound Pressure Level (SPL) | Height - Seated (Max) [Max] [z] | Height - Seated (Max) [Max] [z] | Voltage Range [Max] | Voltage Range [Min] | Termination | Termination | Termination | Approval Agency |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Floyd Bell Inc | Top | 1.41 in | 35.81 mm | 2.9 kHz | DC | Indicator Internally Driven | 50 mA | 110 mA | IP68 - Dust Tight Waterproof | Single Tone | Panel Mount | 103 dB | 1.25 " | 31.75 mm | 30 V | 9 V | Quick Connect Tab | 0.25 " | 6.35 mm | UL UR |
 Floyd Bell Inc | Top | 1.41 in | 35.81 mm | 2.9 kHz | DC | Indicator Internally Driven | 50 mA | 110 mA | IP68 - Dust Tight Waterproof | Single Tone | Panel Mount | 103 dB | 1.25 " | 31.75 mm | 30 V | 9 V | Screw Terminal Quick Connect Tab | 0.25 " | 6.35 mm | UL UR |
