15SW Series

Manufacturer: Serpac

Catalog

BOX ABS ALMOND 5.63"L X 3.25"W

Part	Weight	Weight	Height [z]	Height [z]	Container Type	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Thickness	Thickness	Ratings	Material Flammability Rating	Design	Features	Color	Area (L x W)	Area (L x W)	Material

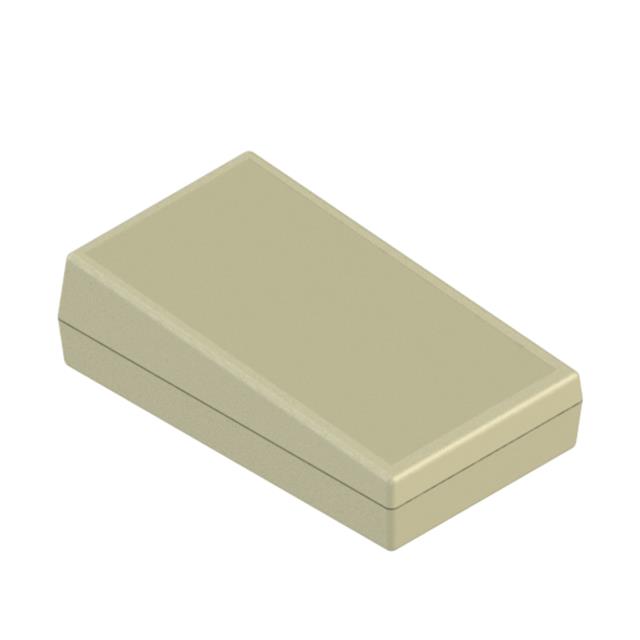

Serpac 15SW,AL	99.79 g	0.22 lb	38.35 mm	1.51 "	Box	143 mm	5.63 in	82.55 mm	3.25 "	2.54 mm	0.1 in	IP40	UL94 HB	Split Sides and Slanted Top	PCB Supports Wall Mount	Almond	18.3 in²	118 cm²	ABS Plastic

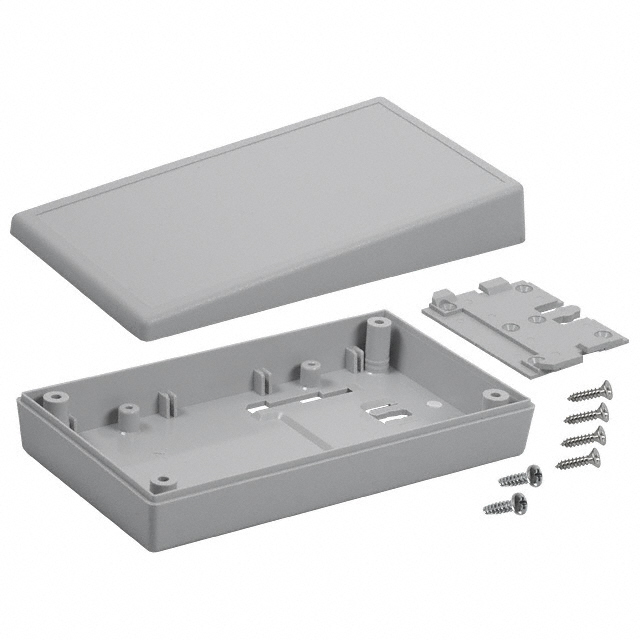

Serpac 15SW,GY	99.79 g	0.22 lb	38.35 mm	1.51 "	Box	143 mm	5.63 in	82.55 mm	3.25 "	2.54 mm	0.1 in	IP40	UL94 HB	Split Sides and Slanted Top	PCB Supports Wall Mount	Gray	18.3 in²	118 cm²	ABS Plastic

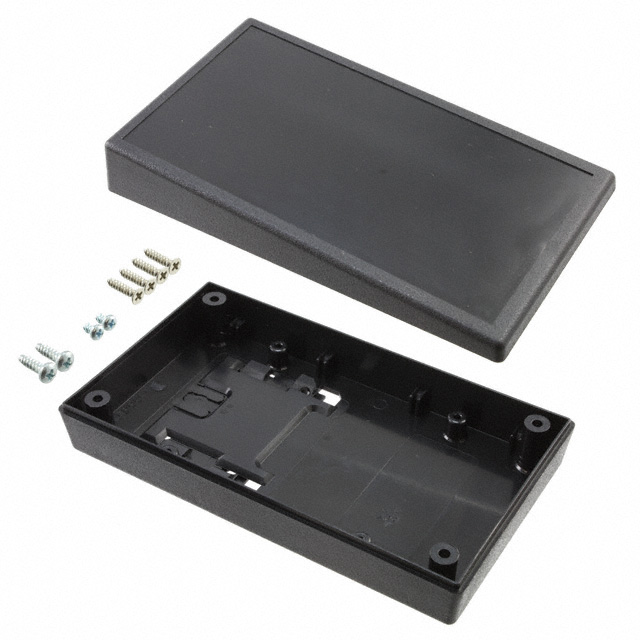

Serpac 15SW,BK	99.79 g	0.22 lb	38.35 mm	1.51 "	Box	143 mm	5.63 in	82.55 mm	3.25 "	2.54 mm	0.1 in	IP40	UL94 HB	Split Sides and Slanted Top	PCB Supports Wall Mount	Black	18.3 in²	118 cm²	ABS Plastic
