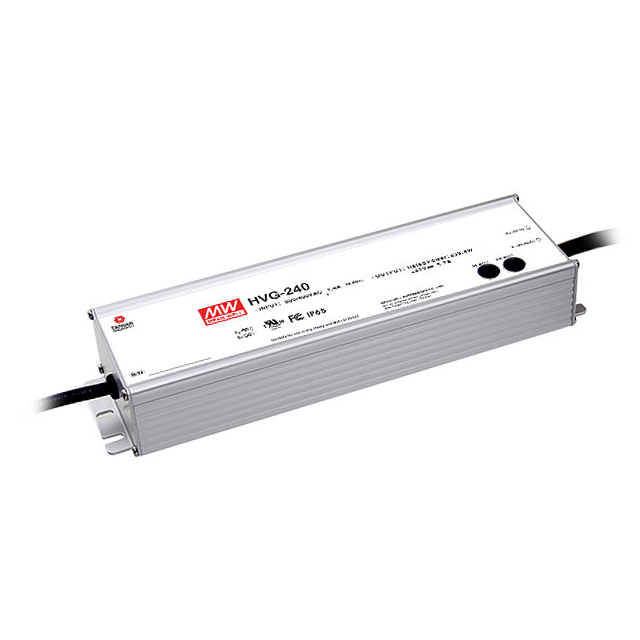

HVG-240 Series

Catalog

LED DRVR CC/CV AC/DC 21-42V 5.7A

Part	Mounting Type	Efficiency	Power (Watts)	Topology	Current - Output (Max) [Max]	Features	Ratings	Dimming	Operating Temperature [Max]	Operating Temperature [Min]	Number of Outputs	Voltage - Isolation	Voltage - Input (Max) [Max]	Voltage - Input (Min) [Min]	Termination Style	Type	Voltage - Output [Max]	Voltage - Output [Min]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Current - Output (Max)	Approval Agency	Voltage - Output	Standard Number
MEAN WELL USA Inc. HVG-240-42B	Chassis Mount	93 %	235 W	AC DC Converter	5.7 A	OCP OTP OVP SCP	IP67	Analog PWM	90 °C	-40 C	1	3750 VDC	528 VAC	180 VAC	Wire Leads	Constant Current Voltage	42 V	21 V	1.53 in	230.2 mm	38.8 mm	68 mm	2.68 in	9.06 "
MEAN WELL USA Inc. HVG-240-48AB	Chassis Mount	92.5 %	240 Watts	AC DC Converter		OCP OTP OVP SCP	IP65	Analog PWM	90 °C	-40 C	1	3750 VDC	528 VAC	180 VAC	Wire Leads	Constant Current Voltage			1.53 in	230.2 mm	38.8 mm	68 mm	2.68 in	9.06 "	5 A	cURus EAC FCC	48 V
MEAN WELL USA Inc. HVG-240-48A	Chassis Mount	92.5 %	240 Watts	AC DC Converter		OCP OTP OVP SCP	IP65		90 °C	-40 C	1	3750 VDC	528 VAC	180 VAC	Wire Leads	Constant Current Voltage	51.2 V	44.8 V	1.53 in	230.2 mm	38.8 mm	68 mm	2.68 in	9.06 "	5 A
MEAN WELL USA Inc. HVG-240-54AB	Chassis Mount	93 %	243 W	AC DC Converter	4.5 A	OCP OTP OVP SCP	IP65	Analog PWM	90 °C	-40 C	1	3750 VDC	528 VAC	180 VAC	Wire Leads	Constant Current Voltage			1.53 in	230.2 mm	38.8 mm	68 mm	2.68 in	9.06 "		cURus EAC FCC	54 V
MEAN WELL USA Inc. HVG-240-36B	Chassis Mount	93 %	241 W	AC DC Converter	6.7 A	OCP OTP OVP SCP	IP67	Analog PWM	90 °C	-40 C	1	3750 VDC	528 VAC	180 VAC	Wire Leads	Constant Current Voltage	36 V	18 V	1.53 in	230.2 mm	38.8 mm	68 mm	2.68 in	9.06 "
MEAN WELL USA Inc. HVG-240-24B	Chassis Mount	92.5 %	240 Watts	AC DC Converter	10 A	OCP OTP OVP SCP	IP67	Analog PWM	90 °C	-40 C	1	3750 VDC	528 VAC	180 VAC	Wire Leads	Constant Current Voltage	24 V	12 V	1.53 in	230.2 mm	38.8 mm	68 mm	2.68 in	9.06 "
MEAN WELL USA Inc. HVG-240-54B	Chassis Mount	93 %	243 W	AC DC Converter	4.5 A	OCP OTP OVP SCP	IP67	Analog PWM	90 °C	-40 C	1	3750 VDC	528 VAC	180 VAC	Wire Leads	Constant Current Voltage	54 V	27 V	1.53 in	230.2 mm	38.8 mm	68 mm	2.68 in	9.06 "

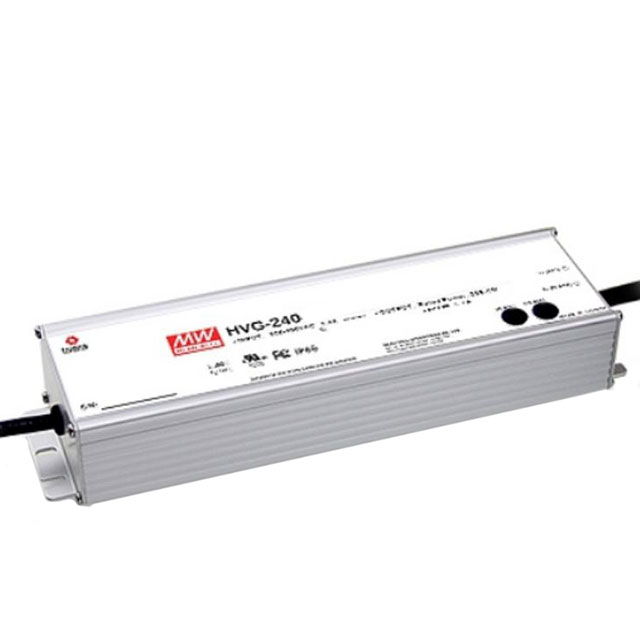

MEAN WELL USA Inc. HVG-240-42AB	Chassis Mount	92.5 %	235 W	AC DC Converter	10 A	OCP OTP OVP SCP	IP65	Analog PWM	90 °C	-40 C	1	3750 VDC	528 VAC	180 VAC	Wire Leads	Constant Current Voltage			1.53 in	230.2 mm	38.8 mm	68 mm	2.68 in	9.06 "		cURus EAC FCC	24 V	UL 8750
MEAN WELL USA Inc. HVG-240-36A	Chassis Mount	93 %	241 W	AC DC Converter	6.7 A	OCP OTP OVP SCP	IP65		90 °C	-40 C	1	3750 VDC	528 VAC	180 VAC	Wire Leads	Constant Current Voltage	38.5 V	33.5 V	1.53 in	230.2 mm	38.8 mm	68 mm	2.68 in	9.06 "
