MAX4947 Series

Catalog

IC SWITCH DPDT X 3 5.5OHM 25UCSP

Part	Charge Injection	Number of Circuits	Switch Circuit	Operating Temperature [Max]	Operating Temperature [Min]	Channel-to-Channel Matching (ΔRon)	Voltage - Supply, Single (V+) [Min]	Voltage - Supply, Single (V+) [Max]	Multiplexer/Demultiplexer Circuit	Supplier Device Package	On-State Resistance (Max) [Max]	Channel Capacitance (CS(off), CD(off)) [custom]	Channel Capacitance (CS(off), CD(off)) [custom]	Mounting Type	Switch Time (Ton, Toff) (Max) [custom]	Switch Time (Ton, Toff) (Max) [custom]	Crosstalk	Current - Leakage (IS(off)) (Max)	Package / Case	-3db Bandwidth

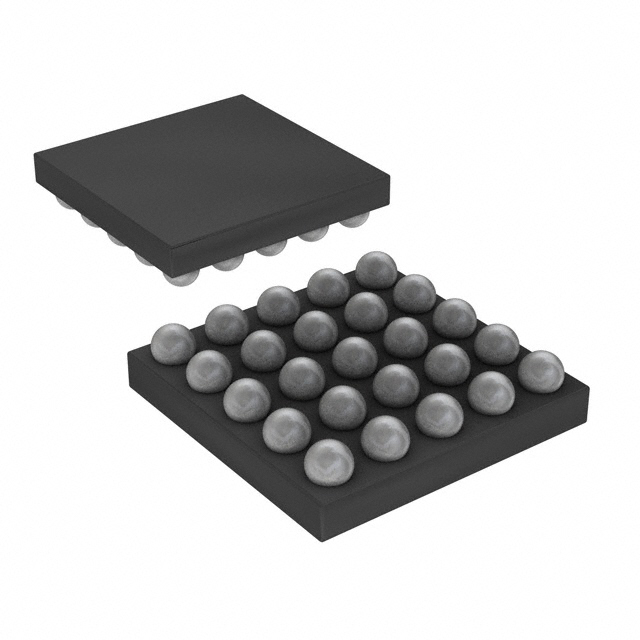

Analog Devices Inc./Maxim Integrated MAX4947EBA+T	10 pC	3	DPDT	85 °C	-40 °C	300 mOhm	1.8 V	5.5 V	2:2	25-UCSP (2.54x2.54)	5.5 Ohm	15 pF	15 pF	Surface Mount	800 ns	800 ns	-90 dB	3 nA	25-WFBGA CSPBGA	300 MHz
Analog Devices Inc./Maxim Integrated MAX4947ETG+T	10 pC	3	DPDT	85 °C	-40 °C	300 mOhm	1.8 V	5.5 V	2:2	24-TQFN (4x4)	5.5 Ohm	15 pF	15 pF	Surface Mount	800 ns	800 ns	-90 dB	3 nA	24-WFQFN Exposed Pad	300 MHz
Analog Devices Inc./Maxim Integrated MAX4947ETG+	10 pC	3	DPDT	85 °C	-40 °C	300 mOhm	1.8 V	5.5 V	2:2	24-TQFN (4x4)	5.5 Ohm	15 pF	15 pF	Surface Mount	800 ns	800 ns	-90 dB	3 nA	24-WFQFN Exposed Pad	300 MHz
