MTSMC-H5 Series

Catalog

RF TXRX MODULE CELL SMD

Part	RF Family/Standard	Operating Temperature [Max]	Operating Temperature [Min]	Protocol	Serial Interfaces	Mounting Type	Package / Case	Frequency	Voltage - Supply [Max]	Voltage - Supply [Min]	Current - Receiving	Current - Transmitting	Data Rate	Power - Output	Antenna Type	Sensitivity	Current - Transmitting [x]	Interface
Multi-Tech Systems Inc. MTSMC-H5-IP.R2-SP	Cellular	85 °C	-35 °C	2G/3G HSPA+ (AT&T/T-Mobile)	USB	Surface Mount	Module	1.7 GHz 1.8 GHz 1.9 GHz 2.1 GHz 850 MHz 900 MHz	5 V	3.3 V

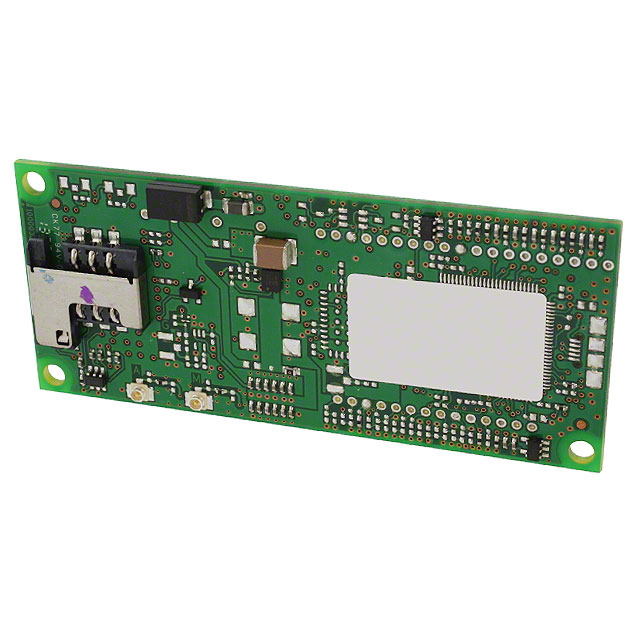

Multi-Tech Systems Inc. MTSMC-H5-SP	Cellular	85 °C	-35 °C	2G/3G HSPA+ (AT&T/T-Mobile)	UART USB	Surface Mount	Module	1.7 GHz 1.8 GHz 1.9 GHz 2.1 GHz 850 MHz 900 MHz	5 V	3.3 V	502 mA	502 mA	5.76 Mbps	32 dBm	Antenna Not Included U.FL	-110 dBm
Multi-Tech Systems Inc. MTSMC-H5-GP.R1-SP	Cellular	85 °C	-35 °C	2G/3G HSPA+ GPS (AT&T/T-Mobile)	Serial UART USB	Through Hole	Module	1.7 GHz 1.8 GHz 1.9 GHz 2.1 GHz 850 MHz 900 MHz	5 V	3.3 V	154 mA				Antenna Not Included U.FL		154 mA
Multi-Tech Systems Inc. MTSMC-H5.R2-SP	Cellular	85 °C	-35 °C	2G/3G HSPA+ (AT&T/T-Mobile)	USB	Surface Mount	Module	1.7 GHz 1.8 GHz 1.9 GHz 2.1 GHz 850 MHz 900 MHz	5 V	3.3 V	397 mA	397 mA			Antenna Not Included U.FL
Multi-Tech Systems Inc. MTSMC-H5-GP	Cellular Navigation	85 °C	-35 °C	2G/3G HSPA+ GPS (AT&T/T-Mobile)	UART USB	Surface Mount	Module	1.7 GHz 1.8 GHz 1.9 GHz 2.1 GHz 850 MHz 900 MHz	5 V	3.3 V	580 mA	580 mA	5.76 Mbps	32 dBm	Antenna Not Included U.FL	-110 dBm
Multi-Tech Systems Inc. MTSMC-H5-U.R2-SP	Cellular	85 °C	-35 °C	2G/3G HSPA+ (AT&T/T-Mobile)	USB	Surface Mount	Module	1.7 GHz 1.8 GHz 1.9 GHz 2.1 GHz 850 MHz 900 MHz	5 V	3.3 V	397 mA	397 mA			Antenna Not Included U.FL
Multi-Tech Systems Inc. MTSMC-H5-U.R2	Cellular	85 °C	-35 °C	2G/3G HSPA+ (AT&T/T-Mobile)	USB	Surface Mount	Module	1.7 GHz 1.8 GHz 1.9 GHz 2.1 GHz 850 MHz 900 MHz	5 V	3.3 V	397 mA	397 mA			Antenna Not Included U.FL
Multi-Tech Systems Inc. MTSMC-H5-U	Cellular	85 °C	-35 °C	2G/3G HSPA+ (AT&T/T-Mobile)	UART USB	Surface Mount	Module	1.7 GHz 1.8 GHz 1.9 GHz 2.1 GHz 850 MHz 900 MHz	5 V	3.3 V	397 mA	397 mA	5.76 Mbps	32 dBm	Antenna Not Included U.FL	-110 dBm
Multi-Tech Systems Inc. MTSMC-H5									5 V	3.3 V								Serial

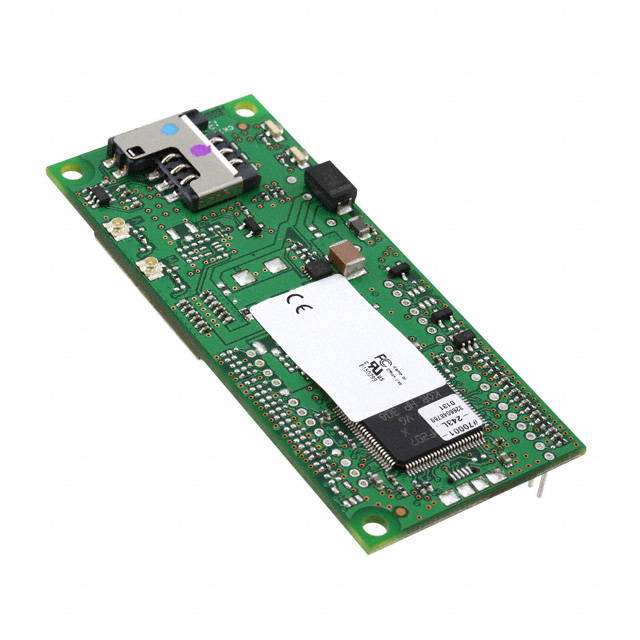

Multi-Tech Systems Inc. MTSMC-H5-IP	Cellular	85 °C	-35 °C	2G/3G HSPA+ (AT&T/T-Mobile)	UART USB	Surface Mount	Module	1.7 GHz 1.8 GHz 1.9 GHz 2.1 GHz 850 MHz 900 MHz	5 V	3.3 V	502 mA	502 mA	5.76 Mbps	32 dBm	Antenna Not Included U.FL	-110 dBm
