EB3-04 Series
Manufacturer: Adam Tech
Beta
⌘K
EURO BLOCK 4P
| Part | Contact Material | Housing Material | Insulation Height | Insulation Height | Material Flammability Rating | Contact Tail Length | Contact Tail Length | Color | Number of Positions | Mounting Type | Pitch | Pitch | Type | Termination Style | Header Orientation | Number of Levels | Contact Mating Finish | Positions Per Level | Operating Temperature [Max] | Operating Temperature [Min] | Current - UL | Voltage - UL |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

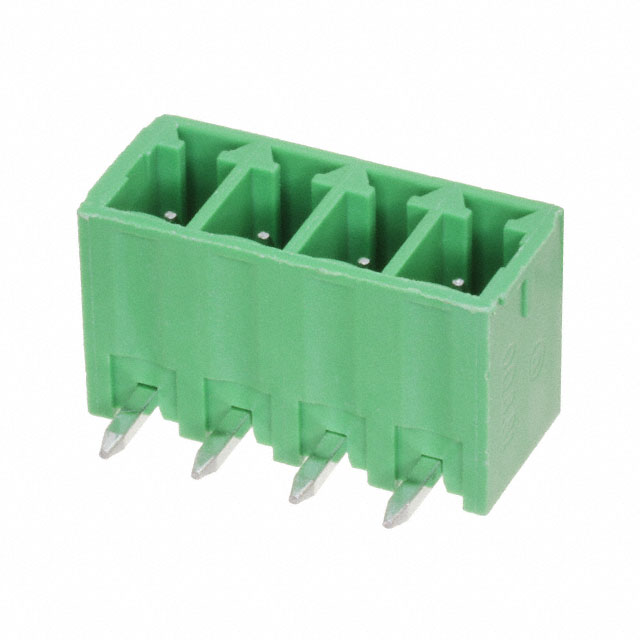

 Adam Tech | Copper Alloy | Thermoplastic | 0.283 in | 7.19 mm | UL94 V-0 | 0.138 in | 3.5 mm | Green | 4 | Through Hole | 3.81 mm | 0.15 in | Header Male Pins Shrouded (4 Side) | Solder | 90° Right Angle | 1 | Tin | 4 | 115 °C | -40 C | 10 A | 300 V |

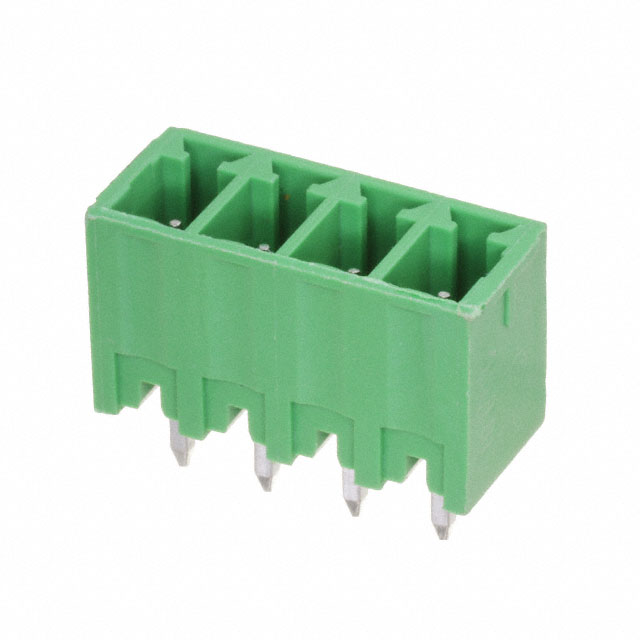

 Adam Tech | Copper Alloy | Thermoplastic | 0.362 in | 9.2 mm | UL94 V-0 | 0.138 in | 3.5 mm | Green | 4 | Through Hole | 3.81 mm | 0.15 in | Header Male Pins Shrouded (4 Side) | Solder | Vertical | 1 | Tin | 4 | 115 °C | -40 C | 10 A | 300 V |
