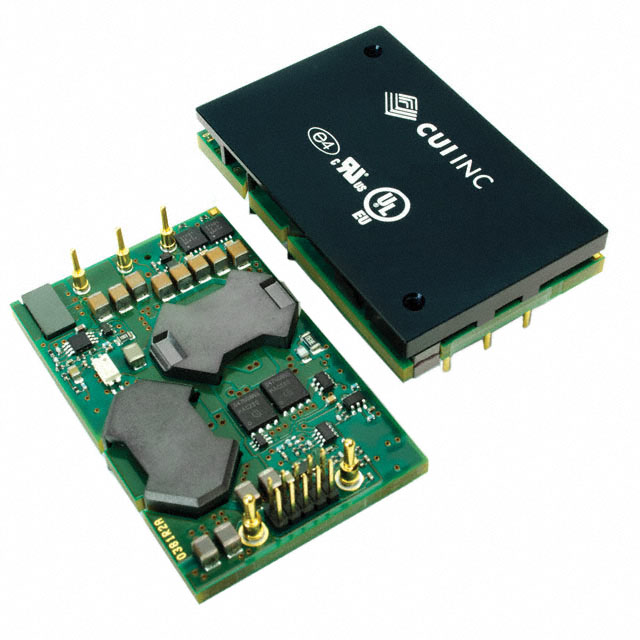

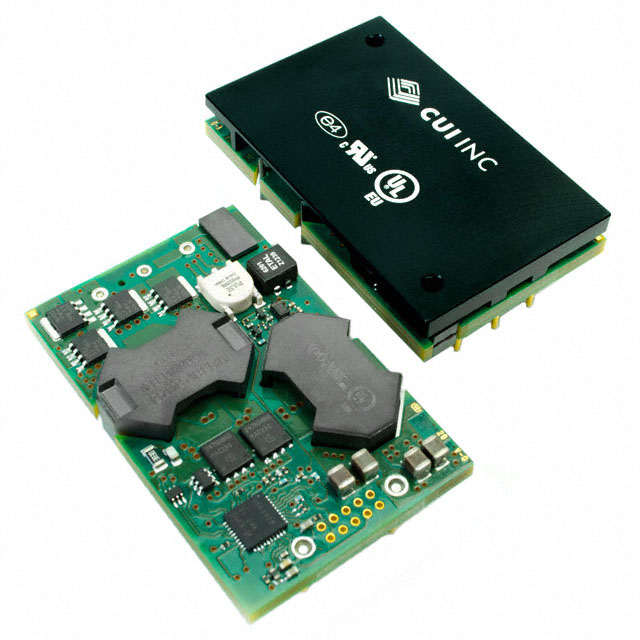

NQB-420 Series

Manufacturer: CUI Inc.

Catalog

DC DC CONVERTER 12V 420W

Part	Efficiency	Voltage - Input (Max) [Max]	Voltage - Output 1	Control Features	Voltage - Isolation	Features	Voltage - Input (Min) [Min]	Applications	Current - Output (Max) [Max]	Power (Watts)	Mounting Type	Number of Outputs	Package / Case	Operating Temperature [Max]	Operating Temperature [Min]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Type
CUI Inc. NQB-420DWA-AN	96.4 %	75 V	12 V	Active Low Enable	2250 VDC	OCP OTP OVP Remote On/Off UVLO	36 V	ITE (Commercial)	35 A	420 W	Through Hole	1	1/4 Brick 15-DIP Module	125 °C	-40 C	0.44 in	11.3 mm	1.45 in	2.28 "	57.9 mm	36.8 mm	Intermediate Bus Converter Digital
CUI Inc. NQB-420DWA-ANH	96.4 %	75 V	12 V	Active Low Enable	2250 VDC	OCP OTP OVP Remote On/Off UVLO	36 V	ITE (Commercial)	35 A	420 W	Through Hole	1	1/4 Brick 15-DIP Module	125 °C	-40 C	0.52 in	13.2 mm	1.45 in	2.28 "	57.9 mm	36.8 mm	Intermediate Bus Converter Digital
CUI Inc. NQB-420NWA-ANH	96.4 %	75 V	12 V	Active Low Enable	2250 VDC	OCP OTP OVP Remote On/Off UVLO	36 V	ITE (Commercial)	35 A	420 W	Through Hole	1	5-DIP Module 1/4 Brick	125 °C	-40 C	0.52 in	13.2 mm	1.45 in	2.28 "	57.9 mm	36.8 mm	Intermediate Bus Converter
CUI Inc. NQB-420NWA-DANH	96.4 %	75 V	12 V	Active Low Enable	2250 VDC	OCP OTP OVP Remote On/Off UVLO	36 V	ITE (Commercial)	35 A	420 W	Through Hole	1	5-DIP Module 1/4 Brick	125 °C	-40 C	0.52 in	13.2 mm	1.45 in	2.28 "	57.9 mm	36.8 mm	Intermediate Bus Converter
CUI Inc. NQB-420NWA-AN	96.4 %	75 V	12 V	Active Low Enable	2250 VDC	OCP OTP OVP Remote On/Off UVLO	36 V	ITE (Commercial)	35 A	420 W	Through Hole	1	5-DIP Module 1/4 Brick	125 °C	-40 C	0.44 in	11.3 mm	1.45 in	2.28 "	57.9 mm	36.8 mm	Intermediate Bus Converter
