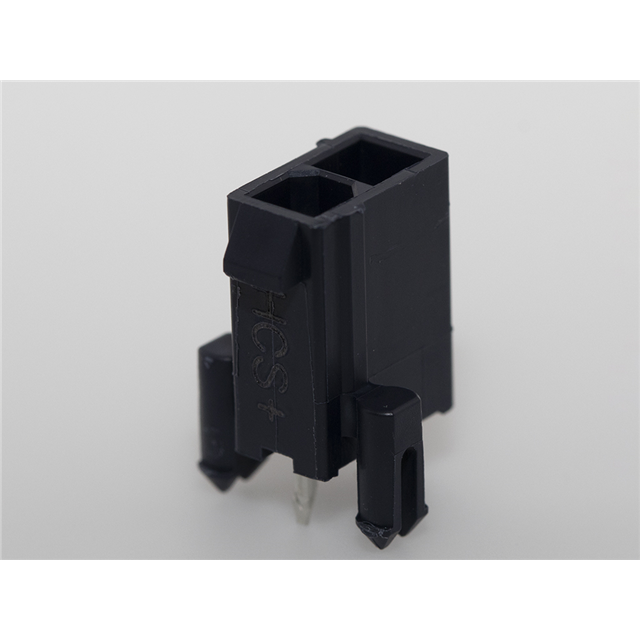

Mini-Fit Plus HCS Header, Dual Row, Vertical, 2 Circuits, PA Polyamide Nylon 6/6, UL 94V-2, Glow-Wire Capable, Tin (Sn) Plating
Mini-Fit Plus HCS Header, Dual Row, Vertical, 2 Circuits, PA Polyamide Nylon 6/6, UL 94V-2, Glow-Wire Capable, Tin (Sn) Plating
Mini-Fit Plus HCS Header, Dual Row, Vertical, 2 Circuits, PA Polyamide Nylon 6/6, UL 94V-2, Glow-Wire Capable, Tin (Sn) Plating
| Part | Contact Finish Thickness - Post | Contact Finish Thickness - Post | Applications | Contact Length - Post | Contact Length - Post | Fastening Type | Insulation Material | Mounting Type | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Material Flammability Rating | Connector Type | Insulation Color | Style | Shrouding | Features | Row Spacing - Mating | Row Spacing - Mating | Termination | Contact Finish - Post | Pitch - Mating | Pitch - Mating | Contact Type | Number of Positions Loaded | Insulation Height [z] | Insulation Height [z] | Contact Shape | Contact Material | Contact Finish - Mating | Number of Positions | Number of Rows [custom] | Number of Positions Loaded | Insulation Height | Insulation Height | Operating Temperature [Min] | Operating Temperature [Max] | Current Rating (Amps) | Voltage Rating |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

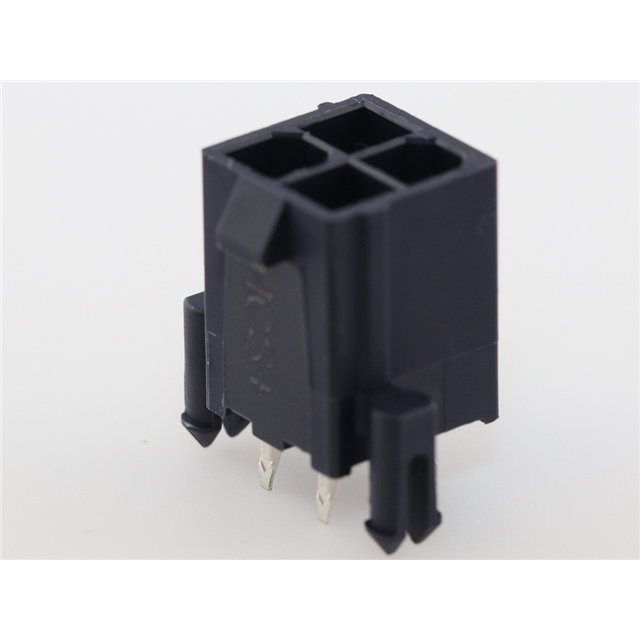

 Molex | 2.54 µm | 100 µin | Automotive General Purpose Industrial Medical Telecommunications | 0.138 in | 3.5 mm | Locking Ramp | Nylon Polyamide (PA) | Through Hole | 0.76 Ám | 30 Áin | UL94 V-2 | Header | Black | Board to Cable/Wire | Shrouded - 4 Wall | Board Lock Glow Wire Compliant | 0.165 in | 4.2 mm | Solder | Tin | 0.165 in | 4.2 mm | Male Pin | All | 12.8 mm | 0.504 " | Rectangular | Copper Alloy | Gold | 4 | 2 | |||||||
 Molex | 0.138 in | 3.5 mm | Locking Ramp | Nylon Polyamide (PA) | Through Hole | 0.76 Ám | 30 Áin | UL94 V-2 | Header | Black | Board to Cable/Wire | Shrouded - 4 Wall | Board Lock Glow Wire Compliant | 0.165 in | 4.2 mm | Solder | Tin | 0.165 in | 4.2 mm | Male Pin | All | 12.8 mm | 0.504 " | Rectangular | Copper Alloy | Gold | 8 | 2 | ||||||||||

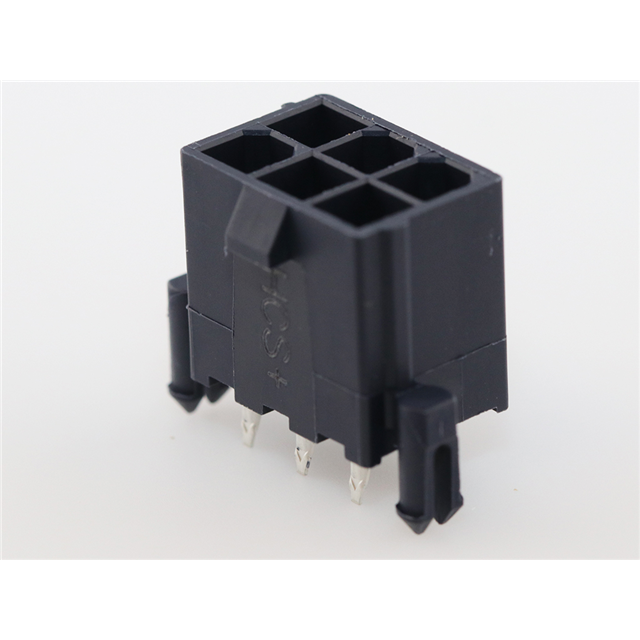

 Molex | 2.54 µm | 100 µin | Automotive General Purpose Industrial Medical Telecommunications | 0.138 in | 3.5 mm | Locking Ramp | Nylon Polyamide (PA) | Through Hole | 0.76 Ám | 30 Áin | UL94 V-2 | Header | Black | Board to Cable/Wire | Shrouded - 4 Wall | Board Lock Glow Wire Compliant | 0.165 in | 4.2 mm | Solder | Tin | 0.165 in | 4.2 mm | Male Pin | All | 12.8 mm | 0.504 " | Rectangular | Copper Alloy | Gold | 6 | 2 | |||||||
 Molex | 2.54 µm | 100 µin | 0.14 in | 3.56 mm | Locking Ramp | Nylon Polyamide (PA) | Through Hole | 2.54 çm | 100 çin | UL94 V-2 | Header | Black | Board to Cable/Wire | Shrouded - 4 Wall | Board Lock | 0.165 in | 4.2 mm | Solder | Tin | 0.165 in | 4.2 mm | Male Pin | Rectangular | Copper Alloy | 2 | 2 | 2 | 0.5 " | 12.7 mm | -40 C | 105 ░C | Varies by Wire Gauge | 600 VAC | |||||
 Molex | 2.54 µm | 100 µin | Automotive General Purpose Industrial Medical Telecommunications | 0.138 in | 3.5 mm | Locking Ramp | Nylon Polyamide (PA) | Through Hole | 2.54 çm | 100 çin | UL94 V-2 | Header | Black | Board to Cable/Wire | Shrouded - 4 Wall | Board Lock Glow Wire Compliant | 0.165 in | 4.2 mm | Solder | Tin | Male Pin | All | 12.8 mm | 0.504 " | Rectangular | Copper Alloy | 2 | 2 |
