LETQ8W Series
Manufacturer: ams-OSRAM USA INC.
Beta
⌘K
LED OSRAM OSTAR GREEN 530NM SMD
| Part | Height - Seated (Max) [Max] | Height - Seated (Max) | Supplier Device Package | Lumens/Watt @ Current - Test | Wavelength | Current - Max [Max] | Voltage - Forward (Vf) (Typ) | Luminous Flux @ Current/Temperature [Min] | Luminous Flux @ Current/Temperature | Luminous Flux @ Current/Temperature [Max] | Mounting Type | Viewing Angle | Package / Case | Color | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [x] | Temperature - Test | Current - Test |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

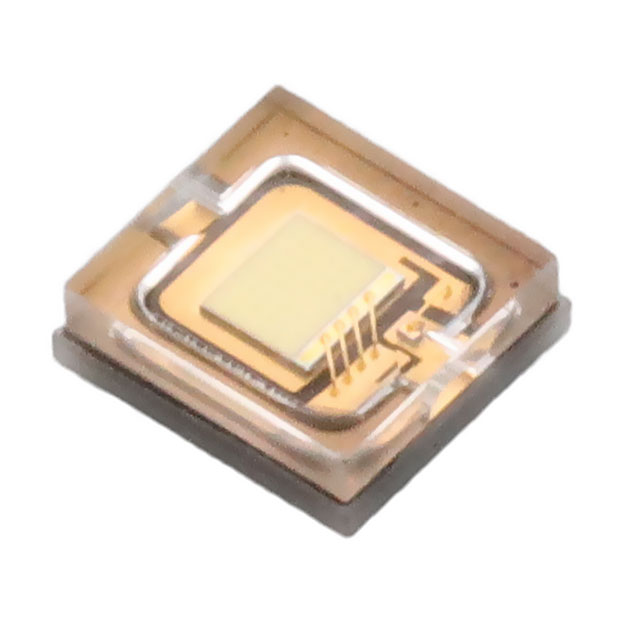

 ams-OSRAM USA INC. | 0.053 " | 1.35 mm | SMD | 67 lm/W | 530 nm | 5 A | 3.6 V | 224 lm | 337 lm | 450 lm | Surface Mount | 120 ° | 2-SMD No Lead Exposed Pad | Green | 0.144 " | 0.154 " | 3.65 mm | 3.9 mm | 25 °C | |

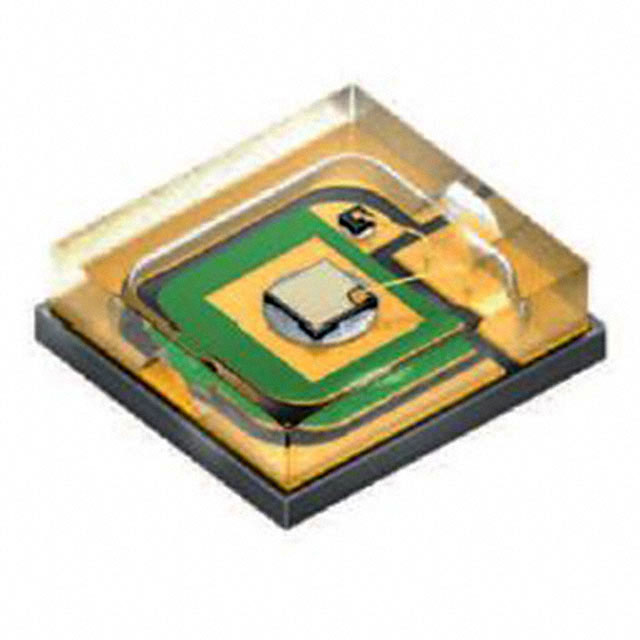

 ams-OSRAM USA INC. | 2-SMD | 74 lm/W | 530 nm | 500 mA | 3.55 V | 92 lm | Surface Mount | 120 ° | 2-SMD No Lead Exposed Pad | Green | 0.144 " | 0.154 " | 3.65 mm | 3.9 mm | 25 °C | 350 mA |
