200M Series

Manufacturer: E-Switch

Catalog

TOGGLE SWITCHES 3A 120VAC / 28VDC ON-OFF-ON PC MNT

Part	Circuit	Actuator Length	Features	Bushing Thread	Panel Cutout Diameter	Panel Cutout Shape	Termination Style	Voltage Rating - AC	Current Rating	Voltage Rating - DC	Switch Function	Illumination	Operating Temperature (Max)	Operating Temperature (Min)	Actuator Type	Mounting Type	Electrical Life (Cycles)	Actuator Material
E-Switch 200MDP3T4B5M2QE	DPDT	10.41 mm	Epoxy Sealed Terminals	1/4-40	0.25 "	Circular	PC Pin	120 V	3 A	28 V	On-Off-On	Non-Illuminated	85 °C	-30 °C	Standard Round	Panel Mount
E-Switch 200MDP1T4B1M6QE	DPDT	0.5 in	Epoxy Sealed Terminals	10-48	4.95 mm	Circular	PC Pin	120 V	3 A	28 V	On-On	Non-Illuminated	85 °C	-30 °C	Standard Round	Panel Mount Right Angle	30000 Cycles	Brass Chrome Plated
E-Switch 200MDP1T4B4M7QE	DPDT	0.5 in	Epoxy Sealed Terminals	Unthreaded			PC Pin	120 V	3 A	28 V	On-On	Non-Illuminated	85 °C	-30 °C	Standard Round	Right Angle Through Hole Vertical

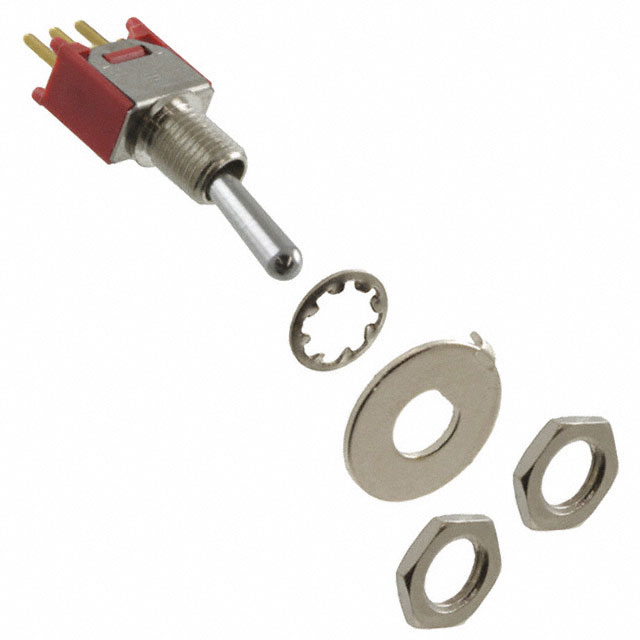

E-Switch 200MSP2T1B1M2REH	SPDT	9.4 mm	Epoxy Sealed Terminals	10-48	4.95 mm	Circular	PC Pin	20 V	0.4 VA	20 V	On-Mom	Non-Illuminated	85 °C	-30 °C	Standard Round	Panel Mount	30000 Cycles	Brass Chrome Plated

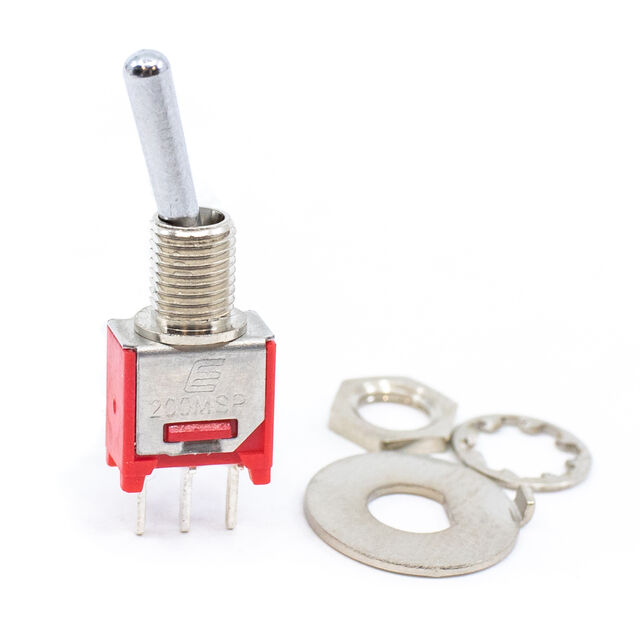

E-Switch 200MSP2T1B1M2QEH	SPDT	9.4 mm	Epoxy Sealed Terminals	10-48	4.95 mm	Circular	PC Pin	120 V	3 A	28 V	On-Mom	Non-Illuminated	85 °C	-30 °C	Standard Round	Panel Mount	30000 Cycles	Brass Chrome Plated
E-Switch 200MDP2T2B7M1QEH	DPDT	5.33 mm	Epoxy Sealed Terminals	1/4-40	0.25 "	Circular	Solder Lug	120 V	3 A	28 V	On-Mom	Non-Illuminated	85 °C	-30 °C	Standard Round	Panel Mount
E-Switch 200MDP1T2B2M6RE	DPDT	5.33 mm	Epoxy Sealed Terminals	Unthreaded			PC Pin	20 V	0.4 VA	20 V	On-On	Non-Illuminated	85 °C	-30 °C	Standard Round	Right Angle Through Hole
E-Switch 200MSP4T1B5M2QE	SPDT	9.4 mm	Epoxy Sealed Terminals	1/4-40	0.25 "	Circular	PC Pin	120 V	3 A	28 V	Mom-Off-Mom	Non-Illuminated	85 °C	-30 °C	Standard Round	Panel Mount	30000 Cycles	Brass Chrome Plated
E-Switch 200MDP3T2B4M2RE	DPDT	5.33 mm	Epoxy Sealed Terminals	Unthreaded			PC Pin	20 V	0.4 VA	20 V	On-Off-On	Non-Illuminated	85 °C	-30 °C	Standard Round	Through Hole
E-Switch 200MDP1T1B1M2CE	DPDT	9.4 mm	Epoxy Sealed Terminals	10-48	4.95 mm	Circular	PC Pin	125 V	3 A		On-On	Non-Illuminated	85 °C	-30 °C	Standard Round	Right Angle Surface Mount
