0393-0 Series

Catalog

CONN PIN RCPT .065-.082 SOLDER

Part	Operating Temperature [Min]	Operating Temperature [Max]	Pin Hole Diameter [diameter]	Pin Hole Diameter [diameter]	Contact Finish	Tail Type	Contact Material	Length - Overall [x]	Length - Overall [x]	Flange Diameter [diameter]	Flange Diameter [diameter]	Contact Finish Thickness	Contact Finish Thickness	Mounting Hole Diameter	Mounting Hole Diameter	Termination	Accepts Pin Diameter [Max]	Accepts Pin Diameter [Max]	Accepts Pin Diameter [Min]	Accepts Pin Diameter [Min]	Socket Depth	Socket Depth
Mill-Max Manufacturing Corp. 0393-0-15-01-07-27-10-0	-55 C	125 °C	2.72 mm	0.107 in	Gold	No Tail	Beryllium Copper	0.412 "	10.46 mm	0.187 in	4.75 mm	30 Áin	0.76 Ám	0.144 "	3.66 mm	Solder	2.08 mm	0.082 "	0.065 "	1.65 mm	0.34 in	8.64 mm
Mill-Max Manufacturing Corp. 0393-0-15-80-07-14-10-0	-55 C	125 °C	2.72 mm	0.107 in	Gold	No Tail	Beryllium Copper	0.412 "	10.46 mm	0.187 in	4.75 mm	10 Áin	0.25 Ám	0.144 "	3.66 mm	Solder	2.08 mm	0.082 "	0.065 "	1.65 mm	0.34 in	8.64 mm

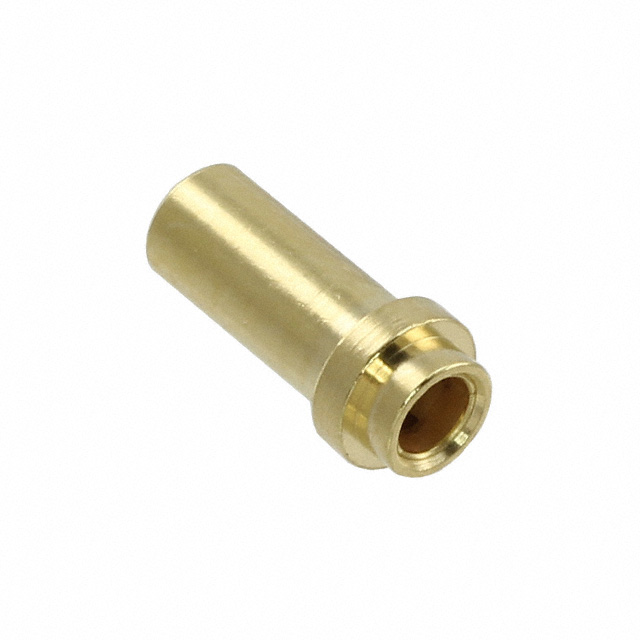

Mill-Max Manufacturing Corp. 0393-0-15-15-07-27-10-0	-55 C	125 °C	2.72 mm	0.107 in	Gold	No Tail	Beryllium Copper	0.412 "	10.46 mm	0.187 in	4.75 mm	30 Áin	0.76 Ám	0.144 "	3.66 mm	Solder	2.08 mm	0.082 "	0.065 "	1.65 mm	0.34 in	8.64 mm
Mill-Max Manufacturing Corp. 0393-0-15-15-07-14-10-0	-55 C	125 °C	2.72 mm	0.107 in	Gold	No Tail	Beryllium Copper	0.412 "	10.46 mm	0.187 in	4.75 mm	10 Áin	0.25 Ám	0.144 "	3.66 mm	Solder	2.08 mm	0.082 "	0.065 "	1.65 mm	0.34 in	8.64 mm
