BS6P-SHF Series
Manufacturer: JST Sales America Inc.
Beta
⌘K

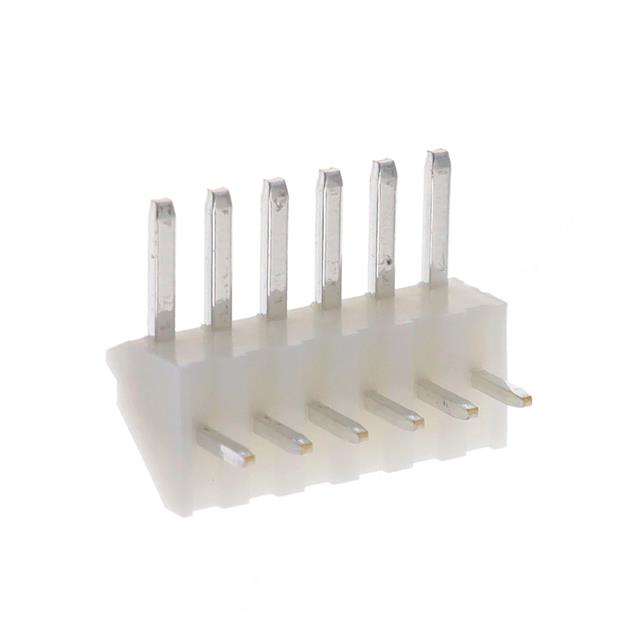

CONN HEADER R/A 6POS 2.5MM
| Part | Connector Type | Contact Length - Post | Contact Length - Post | Contact Material | Contact Length - Mating | Contact Length - Mating | Number of Positions | Number of Rows | Termination | Material Flammability Rating | Contact Type | Operating Temperature [Max] | Operating Temperature [Min] | Fastening Type | Insulation Material | Number of Positions Loaded | Pitch - Mating | Pitch - Mating | Voltage Rating | Contact Shape | Style | Insulation Color | Contact Finish - Post | Current Rating (Amps) | Mounting Type | Shrouding | Insulation Height | Insulation Height |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 JST Sales America Inc. | Header | 0.118 in | 3 mm | Brass | 0.217 in | 5.5 mm | 6 | 1 | Solder | UL94 V-0 | Male Pin | 85 °C | -25 °C | Friction Lock | Nylon 6/6 Polyamide (PA66) | All | 2.5 mm | 0.098 in | 250 V | Square | Board to Cable/Wire | Natural | Tin | 3 A | Right Angle Through Hole | Unshrouded | 5.6 mm | 0.22 in |
