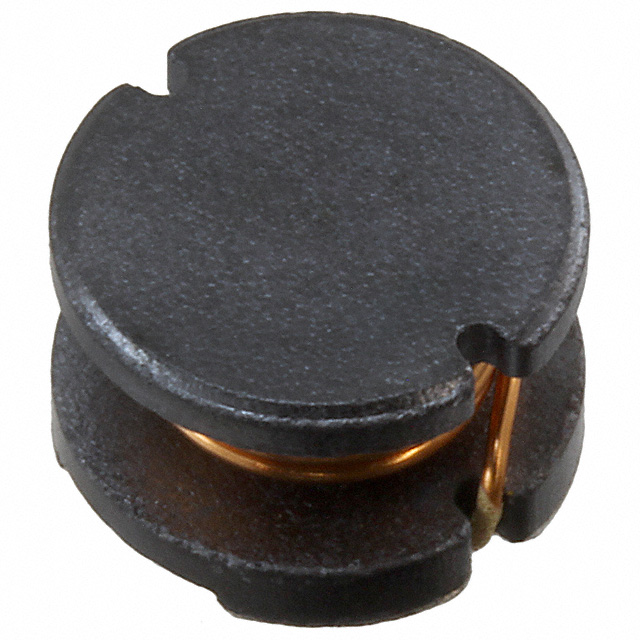

PM75 Series
Manufacturer: Bourns Inc.
Beta
⌘K
FIXED IND 33UH 1.2A 130 MOHM SMD
| Part | Height - Seated (Max) [Max] [z] | Height - Seated (Max) [Max] [z] | Mounting Type | Type | Frequency - Self Resonant | Inductance Frequency - Test | Inductance | Current Rating (Amps) | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [y] | Operating Temperature [Min] | Operating Temperature [Max] | Tolerance | DC Resistance (DCR) | Material - Core | Package / Case | Shielding | Current - Saturation (Isat) | Q @ Freq | DC Resistance (DCR) [Max] | Size / Dimension [diameter] | Size / Dimension [diameter] | Q @ Freq [custom] | Q @ Freq [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Bourns Inc. | 0.209 " | 5.3 mm | Surface Mount | Drum Core Wirewound | 15 MHz | 2.52 MHz | 33 µH | 1.2 A | 7.8 mm | 0.307 " | 0.307 " | 7.8 mm | -30 ░C | 100 °C | 10 % | 130 mOhm | Ferrite | Nonstandard | Unshielded | |||||||
 Bourns Inc. | 0.209 " | 5.3 mm | Surface Mount | Drum Core Wirewound | 9 MHz | 1 kHz | 47 µH | 1 A | 7.8 mm | 0.307 " | 0.307 " | 7.8 mm | -40 C | 125 °C | 10 % | 200 mOhm | Ferrite | Nonstandard | Unshielded | 1.6 A | 2.52 MHz 15 | |||||
 Bourns Inc. | 0.209 " | 5.3 mm | Surface Mount | Drum Core Wirewound | 6 MHz | 1 kHz | 150 µH | 580 mA | -40 C | 125 °C | 10 % | Ferrite | Nonstandard | Unshielded | 850 mA | 12 796 kHz | 680 mOhm | 0.307 in | 7.8 mm | |||||||
Bourns Inc. | 0.209 " | 5.3 mm | Surface Mount | Drum Core Wirewound | 7 MHz | 1 kHz | 82 µH | 780 mA | 7.8 mm | 0.307 " | 0.307 " | 7.8 mm | -40 C | 125 °C | 10 % | Ferrite | Nonstandard | Unshielded | 1.2 A | 12 | 2.52 MHz | |||||
 Bourns Inc. | 0.209 " | 5.3 mm | Surface Mount | Drum Core Wirewound | 10 MHz | 1 kHz | 33 µH | 1.2 A | -40 C | 125 °C | 10 % | Ferrite | Nonstandard | Unshielded | 1.9 A | 2.52 MHz 15 | 140 mOhm | 0.307 in | 7.8 mm | |||||||
Bourns Inc. | 0.209 " | 5.3 mm | Surface Mount | Drum Core Wirewound | 4 MHz | 1 kHz | 390 µH | 360 mA | 7.8 mm | 0.307 " | 0.307 " | 7.8 mm | -40 C | 125 °C | 10 % | Ferrite | Nonstandard | Unshielded | 550 mA | 12 796 kHz | 1.77 Ohm | |||||
Bourns Inc. | 0.209 " | 5.3 mm | Surface Mount | Drum Core Wirewound | 7 MHz | 1 kHz | 0.68 A | -40 C | 125 °C | 10 % | Ferrite | Nonstandard | Unshielded | 1 A | 12 796 kHz | 480 mOhm | 0.307 in | 7.8 mm | ||||||||
Bourns Inc. | 0.209 " | 5.3 mm | Surface Mount | Drum Core Wirewound | 5 MHz | 1 kHz | 220 µH | 490 mA | 7.8 mm | 0.307 " | 0.307 " | 7.8 mm | -30 ░C | 100 °C | 10 % | Ferrite | Nonstandard | Unshielded | 960 mOhm | |||||||
Bourns Inc. | 0.209 " | 5.3 mm | Surface Mount | Drum Core Wirewound | 8 MHz | 1 kHz | 68 µH | 0.85 A | 7.8 mm | 0.307 " | 0.307 " | 7.8 mm | -40 C | 125 °C | 10 % | Ferrite | Nonstandard | Unshielded | 1.3 A | 2.52 MHz 15 | 300 mOhm | |||||
Bourns Inc. | 0.209 " | 5.3 mm | Surface Mount | Drum Core Wirewound | 7 MHz | 1 kHz | 100 µH | 0.72 A | -40 C | 125 °C | 10 % | 450 mOhm | Ferrite | Nonstandard | Unshielded | 1.1 A | 12 796 kHz | 0.307 in | 7.8 mm |
