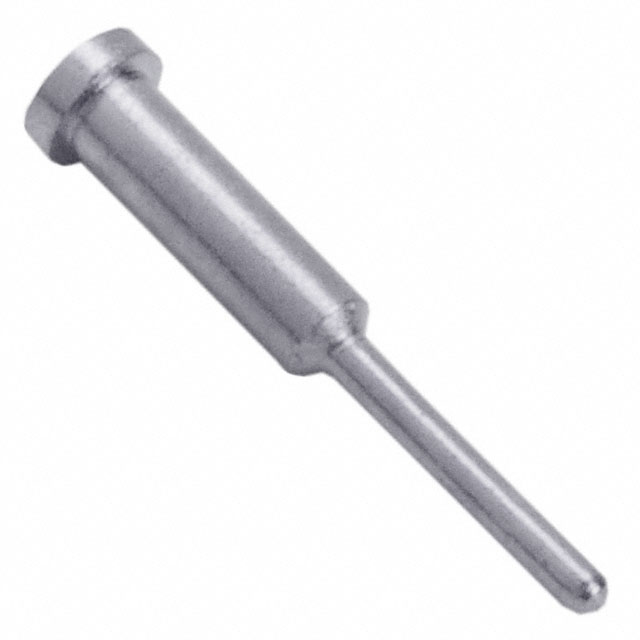

H3192 Series

Catalog

PCB SOCKET, 1POS ROHS COMPLIANT: YES

Part	Insertion Force [Max]	Insertion Force [Min]	Operating Temperature [Min]	Operating Temperature [Max]	Termination	Flange Diameter [diameter]	Flange Diameter [diameter]	Contact Material	Mounting Hole Diameter [Max]	Mounting Hole Diameter [Max]	Mounting Hole Diameter [Min]	Mounting Hole Diameter [Min]	Accepts Pin Diameter [Min]	Accepts Pin Diameter [Max]	Accepts Pin Diameter [Max]	Accepts Pin Diameter [Min]	Contact Finish	Socket Depth	Socket Depth	Tail Type	Tail Diameter [diameter]	Tail Diameter [diameter]	Length - Overall	Length - Overall
Harwin Inc. H3192-05	6 N	2 N	-55 C	125 °C	Solder	0.057 in	1.45 mm	Beryllium Copper	1.09 mm	0.043 in	0.99 mm	0.039 in	0.46 mm	0.51 mm	0.02 in	0.018 in	Gold	0.124 in	3.15 mm	Standard Tail	0.59 mm	0.023 in	7.54 mm	0.297 "
Harwin Inc. H3192-01	6 N	2 N	-55 C	125 °C	Solder	0.057 in	1.45 mm	Beryllium Copper	1.09 mm	0.043 in	0.99 mm	0.039 in	0.46 mm	0.51 mm	0.02 in	0.018 in	Gold	0.124 in	3.15 mm	Standard Tail	0.59 mm	0.023 in	7.54 mm	0.297 "
