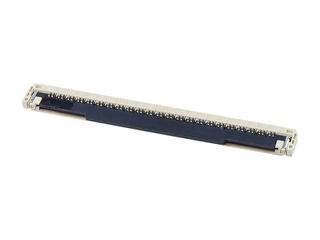

0.50mm Pitch Easy-On FFC/FPC Wide Slim Connector, Right-Angle, ZIF, Surface Mount, Double Bottom Contact Style, 1.50mm Height, 68 Circuits
0.50mm Pitch Easy-On FFC/FPC Wide Slim Connector, Right-Angle, ZIF, Surface Mount, Double Bottom Contact Style, 1.50mm Height, 68 Circuits
0.50mm Pitch Easy-On FFC/FPC Wide Slim Connector, Right-Angle, ZIF, Surface Mount, Double Bottom Contact Style, 1.50mm Height, 68 Circuits
| Part | Actuator Color | Features | Cable End Type | Current Rating (Amps) | Actuator Material | Contact Finish | Locking Feature | Material Flammability Rating | Termination | Operating Temperature [Min] | Operating Temperature [Max] | Pitch [x] | Pitch [x] | Height Above Board | Height Above Board | FFC, FCB Thickness | Mounting Type | Contact Material | Flat Flex Type | Connector/Contact Type | Voltage Rating | Housing Color | Number of Positions | Housing Material | Mating Cycles |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Molex | Black | Solder Retention | Tapered | 0.5 A | Polyphenylene Sulfide (PPS) Glass Filled | Gold | Flip Lock | UL94 V-0 | Solder | -20 C | 105 ░C | 0.5 mm | 0.02 in | 0.059 in | 1.5 mm | 0.3 mm | Surface Mount Right Angle | Phosphor Bronze | FFC FPC | Contacts Bottom | 50 V | Natural | 68 | Liquid Crystal Polymer (LCP) Glass Filled | 20 |
