GBC10D Series

Manufacturer: Sullins Connector Solutions

Catalog

3A VERTICAL WELDING TIN 20P -65℃~+150℃ 2.54MM DOUBLE ROW BLACK PHOSPHOR BRONZE 2.54MM SMD,P=2.54MM PIN HEADERS ROHS

Part	Mounting Type	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Number of Positions Loaded	Fastening Type	Contact Finish - Mating	Insulation Height	Insulation Height	Connector Type	Contact Type	Contact Shape	Contact Material	Insulation Color	Insulation Material	Current Rating (Amps)	Contact Finish - Post	Number of Rows	Number of Positions	Shrouding	Operating Temperature [Min]	Operating Temperature [Max]	Contact Length - Mating [x]	Contact Length - Mating	Material Flammability Rating	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Style	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Termination	Pitch - Mating	Pitch - Mating	Contact Length - Mating [x]	Overall Contact Length	Overall Contact Length	Contact Length - Post	Contact Length - Post

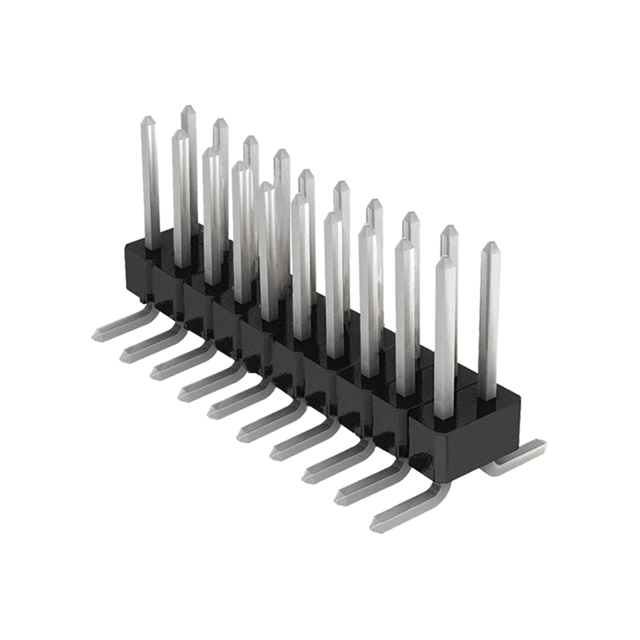

Sullins Connector Solutions GBC10DABN-M30	Surface Mount	2.54 µm	100 µin	All	Push-Pull	Gold	0.1 in	2.54 mm	Breakaway Header	Male Pin	Square	Phosphor Bronze	Black	Nylon 9T Polyamide (PA9T)	3 A	Tin	2	20	Unshrouded	-65 ░C	150 °C	0.23 in	5.84 mm	UL94 V-0	2.54 mm	0.1 in	Board to Board Cable	10 çin	0.25 çm	Solder	0.1 in	2.54 mm
Sullins Connector Solutions GBC10DFBN-M30	Surface Mount	2.54 µm	100 µin	All	Push-Pull	Gold	0.1 in	2.54 mm	Breakaway Header	Male Pin	Square	Phosphor Bronze	Black	Nylon 9T Polyamide (PA9T)	3 A	Tin	2	20	Unshrouded	-65 ░C	150 °C	0.318 "		UL94 V-0	2.54 mm	0.1 in	Board to Board Cable	10 çin	0.25 çm	Solder	0.1 in	2.54 mm	8.08 mm

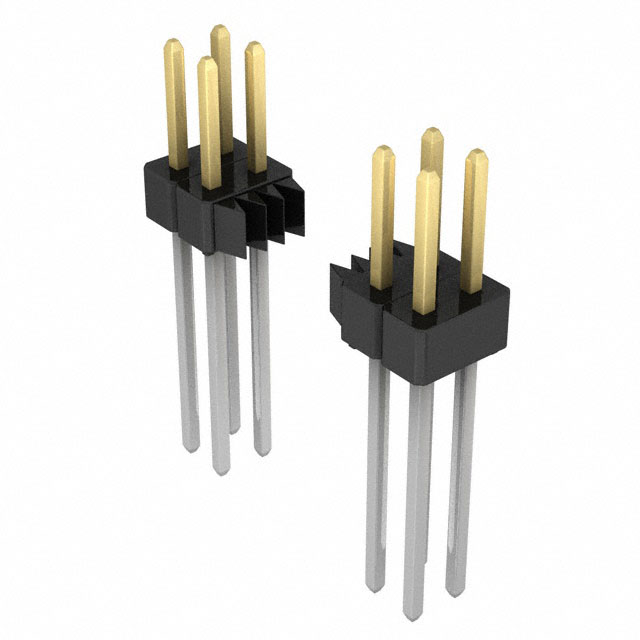

Sullins Connector Solutions GBC10DAEN	Through Hole	2.54 µm	100 µin	All	Push-Pull	Gold	0.1 in	2.54 mm	Breakaway Header	Male Pin	Square	Phosphor Bronze	Black	Nylon 9T Polyamide (PA9T)	3 A	Tin	2	20	Unshrouded	-65 ░C	150 °C	0.23 in	5.84 mm	UL94 V-0	2.54 mm	0.1 in	Board to Board Cable	10 çin	0.25 çm	Solder	0.1 in	2.54 mm		0.85 in	21.59 mm	13.21 mm	0.52 "
