VBM201 Series
Manufacturer: Cinch Connectivity Solutions
Beta
⌘K

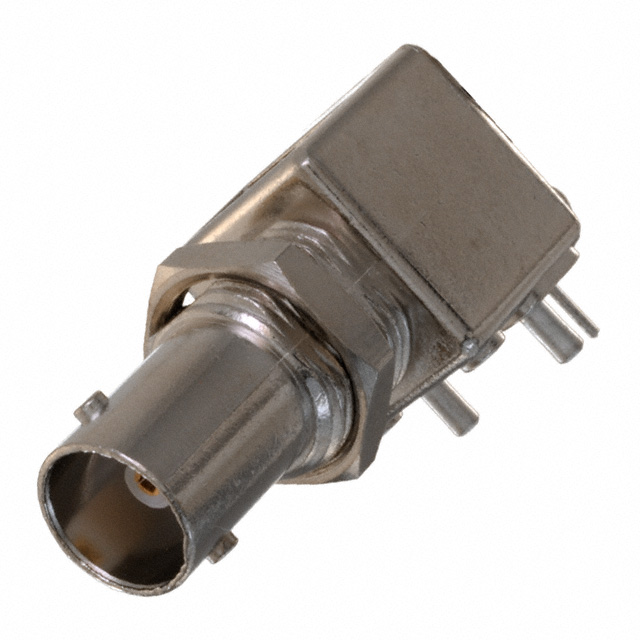

CONN BNC JACK R/A 75 OHM PCB
| Part | Operating Temperature [Min] | Operating Temperature [Max] | Includes | Mating Cycles | Body Material | Dielectric Material | Voltage Rating | Center Contact Plating | Body Finish | Number of Ports | Shield Termination | Housing Color | Impedance | Frequency - Max [Max] | Connector Type | Fastening Type | Mounting Feature | Connector Style | Mounting Type | Center Contact Material | Contact Termination |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Cinch Connectivity Solutions | -55 C | 85 °C | 1 Connector 1 Lockwasher 1 Nut | 500 | Zinc Alloy | Polypropylene (PP) | 500 V | Gold | Nickel | 1 | Solder | Silver | 75 Ohms | 1 GHz | Female Socket Jack | Bayonet Lock | Bulkhead - Front Side Nut | BNC | Panel Mount Right Angle Through Hole | Phosphor Bronze | Solder |
