OSTHI12 Series

Catalog

TERM BLOCK PLUG 12POS STR 5MM

Part	Material Flammability Rating	Housing Material	Contact Material	Termination Style	Mounting Type	Number of Positions	Wire Gauge or Range - AWG [Max]	Wire Gauge or Range - AWG [Min]	Type	Positions Per Level	Voltage - UL	Number of Levels	Operating Temperature [Min]	Operating Temperature [Max]	Pitch	Pitch

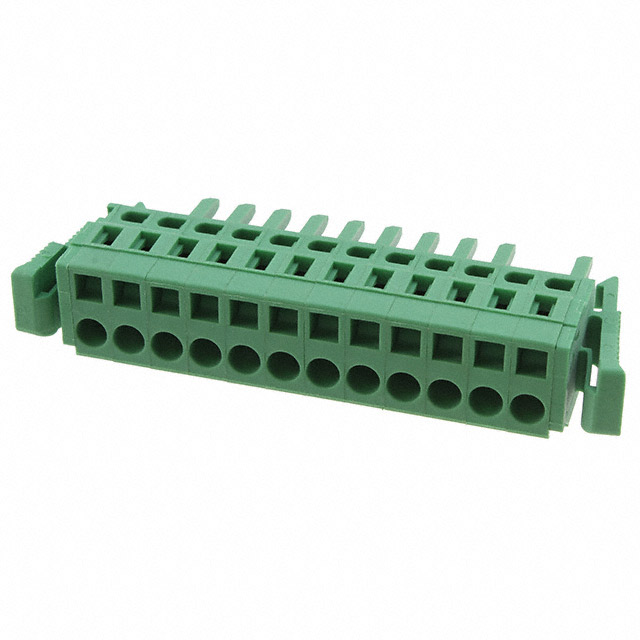

On Shore Technology Inc. OSTHI120053	UL94 V-0	Thermoplastic	Phosphor Bronze	Screwless - Spring Cage Tension Clamp	Free Hanging (In-Line)	12	28 AWG	12 AWG	Plug Female Sockets	12	300 V	1	-33 °C	105 ░C	0.197 in	5 mm
On Shore Technology Inc. OSTHI122051	UL94 V-0	Thermoplastic	Phosphor Bronze	Screwless - Spring Cage Tension Clamp	Free Hanging (In-Line)	12	28 AWG	12 AWG	Plug Female Sockets	12	300 V	1	-33 °C	105 ░C	0.295 in	7.5 mm
