PCM2903C Series

Stereo USB1.1 CODEC with line-out and S/PDIF I/O, Self-powered (HID Interface)

Catalog

Stereo USB1.1 CODEC with line-out and S/PDIF I/O, Self-powered (HID Interface)

Part	Type	Function	Secondary Attributes	Utilized IC / Part	Supplied Contents	Voltage - Supply, Analog [Max]	Voltage - Supply, Analog [Min]	Number of ADCs / DACs [custom]	Number of ADCs / DACs [custom]	Supplier Device Package	Dynamic Range, ADCs / DACs (db) Typ [custom]	Dynamic Range, ADCs / DACs (db) Typ [custom]	Package / Case [custom]	Package / Case	Package / Case [custom]	Voltage - Supply, Digital [Max]	Voltage - Supply, Digital [Min]	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Data Interface	S/N Ratio, ADCs / DACs (db) Typ [custom]	S/N Ratio, ADCs / DACs (db) Typ [custom]	Resolution (Bits)

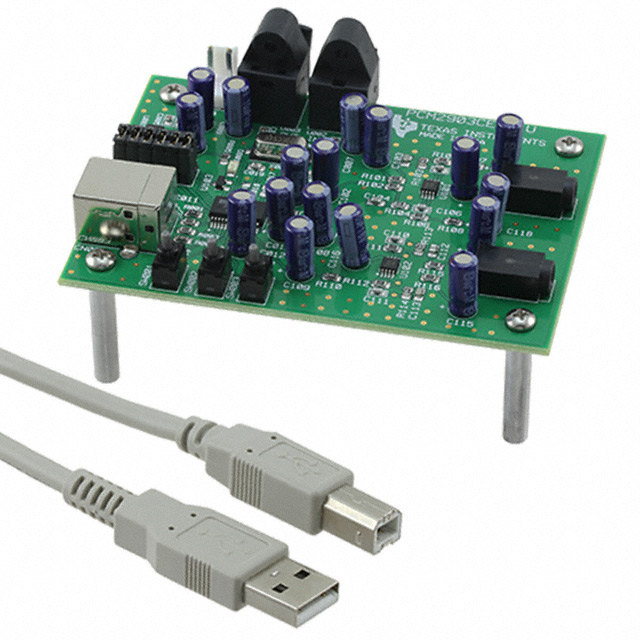

Texas Instruments PCM2903EVM-U	Audio	CODEC	USB Interface(s)	PCM2903	Board(s)
Texas Instruments PCM2903BDB	Stereo Audio					3.6 V	3 V	2	2	28-SSOP	89 db	93 db	0.209 in	28-SSOP	5.3 mm	3.6 V	3 V	Surface Mount	-25 °C	85 °C	USB	96 db	89 db	16 b
Texas Instruments PCM2903CDB	Stereo Audio					3.6 V	3 V	2	2	28-SSOP	89 db	93 db	0.209 in	28-SSOP	5.3 mm	3.6 V	3 V	Surface Mount	-25 °C	85 °C	USB	96 db	89 db	16 b
Texas Instruments PCM2903CDBR	Stereo Audio					3.6 V	3 V	2	2	28-SSOP	89 db	93 db	0.209 in	28-SSOP	5.3 mm	3.6 V	3 V	Surface Mount	-25 °C	85 °C	USB	96 db	89 db	16 b
Texas Instruments PCM2903BDBR	Stereo Audio					3.6 V	3 V	2	2	28-SSOP	89 db	93 db	0.209 in	28-SSOP	5.3 mm	3.6 V	3 V	Surface Mount	-25 °C	85 °C	USB	96 db	89 db	16 b

Catalog

Stereo USB1.1 CODEC with line-out and S/PDIF I/O, Self-powered (HID Interface)

Key Features

• On-Chip USB Interface:With Full-Speed TransceiversFully Compliant with USB 2.0 SpecificationCertified by USB-IFPartially Programmable Descriptors(1)USB Adaptive Mode for PlaybackUSB Asynchronous Mode for RecordSelf-Powered16-Bit Delta-Sigma ADC and DACSampling Rates:DAC: 32, 44.1, 48 kHzADC: 8, 11.025, 16, 22.05, 32, 44.1, 48 kHzOn-Chip Clock Generator With Single 12-MHz Clock SourceS/PDIF Input/OutputSingle Power Supply:3.3 V TypicalStereo ADC:Analog Performance at VCCC= VCCP1= VCCP2= VCCX= VDD= 3.3 V:THD+N = 0.01%SNR = 89 dBDynamic Range = 89 dBDecimation Digital Filter:Passband Ripple = ±0.05 dBStop-Band Attenuation = -65 dBSingle-Ended Voltage InputAntialiasing Filter IncludedDigital HPF IncludedStereo DAC:Analog Performance at VCCC= VCCP1= VCCP2= VCCX= VDD= 3.3 V:THD+N = 0.005%SNR = 96 dBDynamic Range = 93 dBOversampling Digital Filter:Passband Ripple = ±0.1 dBStop-Band Attenuation = -43 dBSingle-Ended Voltage OutputAnalog LPF IncludedMultifunctions:Human Interface Device (HID) Function:Volume and and Mute ControlsSuspend Flag Function28-Pin SSOP PackageAPPLICATIONSUSB Audio SpeakerUSB HeadsetUSB MonitorUSB Audio Interface Box(1)The descriptor can be modified by changing a mask.SpAct is a trademark of Texas Instruments.System Two, Audio Precision are trademarks of Audio Precision, Inc.On-Chip USB Interface:With Full-Speed TransceiversFully Compliant with USB 2.0 SpecificationCertified by USB-IFPartially Programmable Descriptors(1)USB Adaptive Mode for PlaybackUSB Asynchronous Mode for RecordSelf-Powered16-Bit Delta-Sigma ADC and DACSampling Rates:DAC: 32, 44.1, 48 kHzADC: 8, 11.025, 16, 22.05, 32, 44.1, 48 kHzOn-Chip Clock Generator With Single 12-MHz Clock SourceS/PDIF Input/OutputSingle Power Supply:3.3 V TypicalStereo ADC:Analog Performance at VCCC= VCCP1= VCCP2= VCCX= VDD= 3.3 V:THD+N = 0.01%SNR = 89 dBDynamic Range = 89 dBDecimation Digital Filter:Passband Ripple = ±0.05 dBStop-Band Attenuation = -65 dBSingle-Ended Voltage InputAntialiasing Filter IncludedDigital HPF IncludedStereo DAC:Analog Performance at VCCC= VCCP1= VCCP2= VCCX= VDD= 3.3 V:THD+N = 0.005%SNR = 96 dBDynamic Range = 93 dBOversampling Digital Filter:Passband Ripple = ±0.1 dBStop-Band Attenuation = -43 dBSingle-Ended Voltage OutputAnalog LPF IncludedMultifunctions:Human Interface Device (HID) Function:Volume and and Mute ControlsSuspend Flag Function28-Pin SSOP PackageAPPLICATIONSUSB Audio SpeakerUSB HeadsetUSB MonitorUSB Audio Interface Box(1)The descriptor can be modified by changing a mask.SpAct is a trademark of Texas Instruments.System Two, Audio Precision are trademarks of Audio Precision, Inc.

Description

The PCM2903B is Texas Instruments' single-chip, USB, stereo audio codec with a USB-compliant full-speed protocol controller and S/PDIF. The USB protocol controller requires no software code, but the USB descriptors can be modified in some areas (for example, vendor ID and/or product ID). The PCM2903B employs SpAct architecture, TI's unique system that recovers the audio clock from USB packet data. On-chip analog PLLs with SpAct enable playback and record with low clock jitter as well as independent playback and record sampling rates. The PCM2903B is Texas Instruments' single-chip, USB, stereo audio codec with a USB-compliant full-speed protocol controller and S/PDIF. The USB protocol controller requires no software code, but the USB descriptors can be modified in some areas (for example, vendor ID and/or product ID). The PCM2903B employs SpAct architecture, TI's unique system that recovers the audio clock from USB packet data. On-chip analog PLLs with SpAct enable playback and record with low clock jitter as well as independent playback and record sampling rates.
