2823345 Series

Manufacturer: TE Connectivity Raychem Cable Protection

Catalog

6P,2MM,SHRD HDR,DRVT,2.8,0.76AU,

Part	Insulation Color	Fastening Type	Row Spacing - Mating	Row Spacing - Mating	Termination	Contact Type	Shrouding	Contact Length - Mating	Contact Length - Mating	Insulation Height [custom]	Insulation Height [custom]	Insulation Material	Material Flammability Rating	Number of Positions Loaded	Contact Finish - Post	Contact Finish - Mating	Voltage Rating	Connector Type	Contact Material	Number of Positions	Current Rating (Amps)	Mounting Type	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Operating Temperature [Max]	Operating Temperature [Min]	Contact Shape	Pitch - Mating [x]	Pitch - Mating [x]	Contact Length - Post [x]	Contact Length - Post [x]	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Number of Rows	Number of Positions

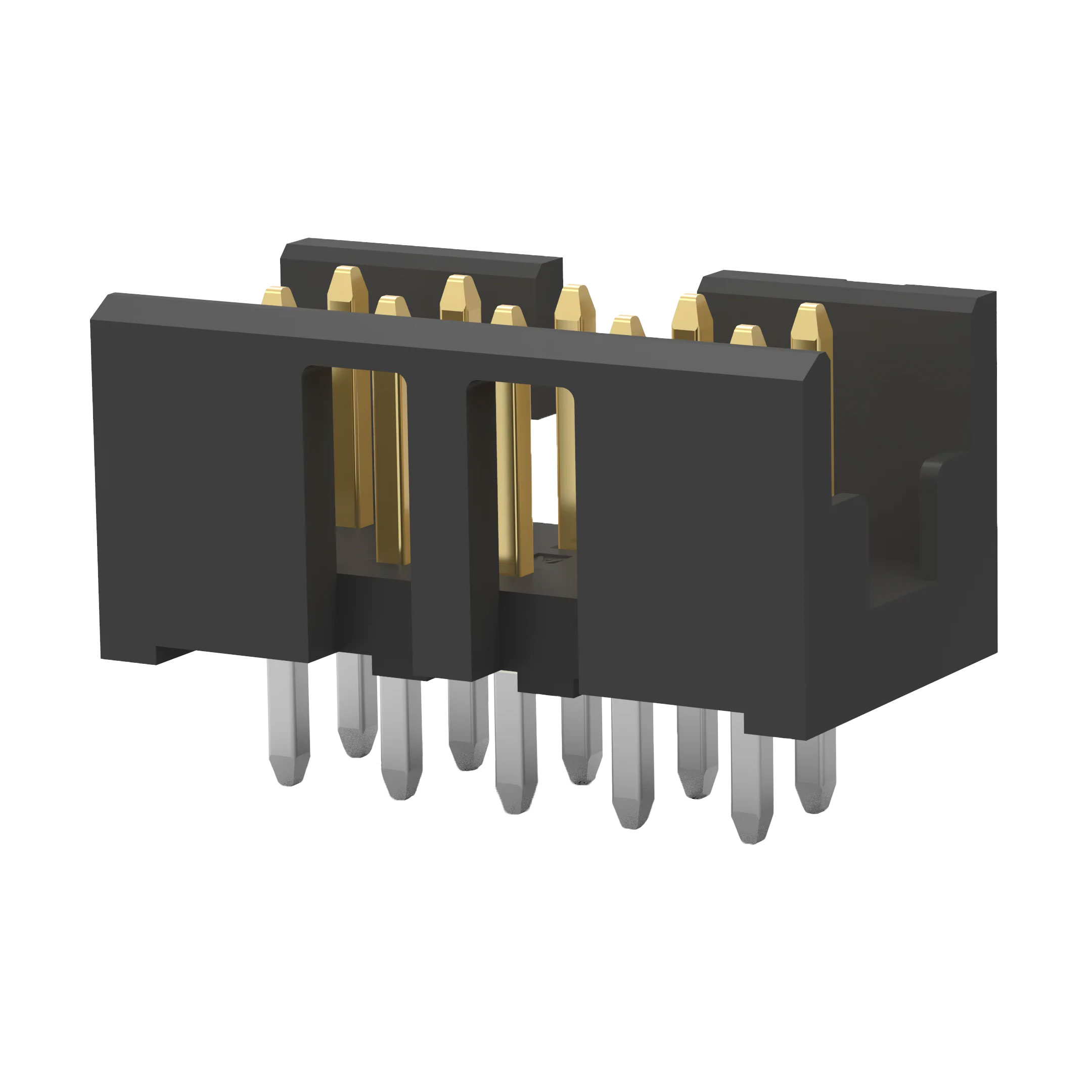

TE Connectivity Raychem Cable Protection 2823345-6	Black	Detent Lock	0.079 in	2 mm	Solder	Male Pin	Shrouded - 2 Wall	4 mm	0.157 in	5.51 mm	0.217 in	Thermoplastic	UL94 V-0	All	Tin	Gold	125 VAC	Header	Phosphor Bronze	6	2 A	Through Hole	30 Áin	0.76 Ám	125 °C	-40 °C	Square	0.079 in	2 mm	0.11 in	2.8 mm	157.5 Áin	4 Ám	2

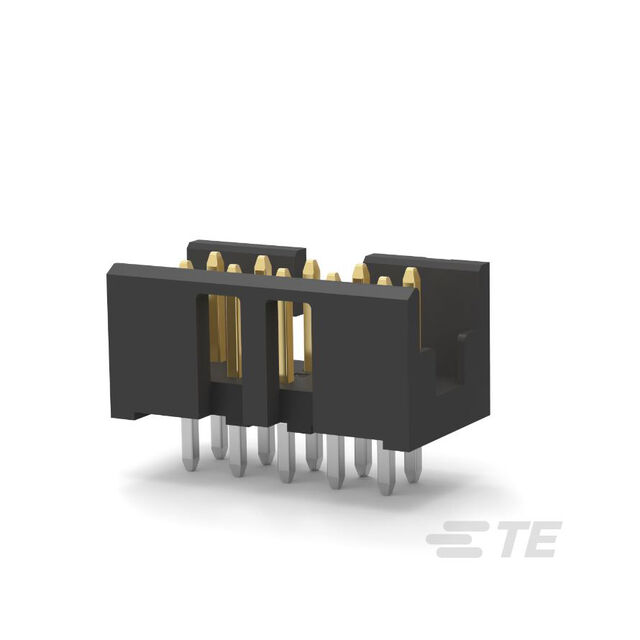

TE Connectivity Raychem Cable Protection 1-2823345-8	Black	Detent Lock	0.079 in	2 mm	Solder	Male Pin	Shrouded - 2 Wall	4 mm	0.157 in	5.51 mm	0.217 in	Thermoplastic	UL94 V-0	All	Tin	Gold	125 VAC	Header	Phosphor Bronze	18	2 A	Through Hole	30 Áin	0.76 Ám	125 °C	-40 °C	Square	0.079 in	2 mm	0.11 in	2.8 mm	157.5 Áin	4 Ám	2
TE Connectivity Raychem Cable Protection 2-2823345-0	Black	Detent Lock	0.079 in	2 mm	Solder	Male Pin	Shrouded - 2 Wall	4 mm	0.157 in	5.51 mm	0.217 in	Thermoplastic	UL94 V-0	All	Tin	Gold	125 VAC	Header	Phosphor Bronze	20	2 A	Through Hole	30 Áin	0.76 Ám	125 °C	-40 °C	Square	0.079 in	2 mm	0.11 in	2.8 mm	157.5 Áin	4 Ám	2

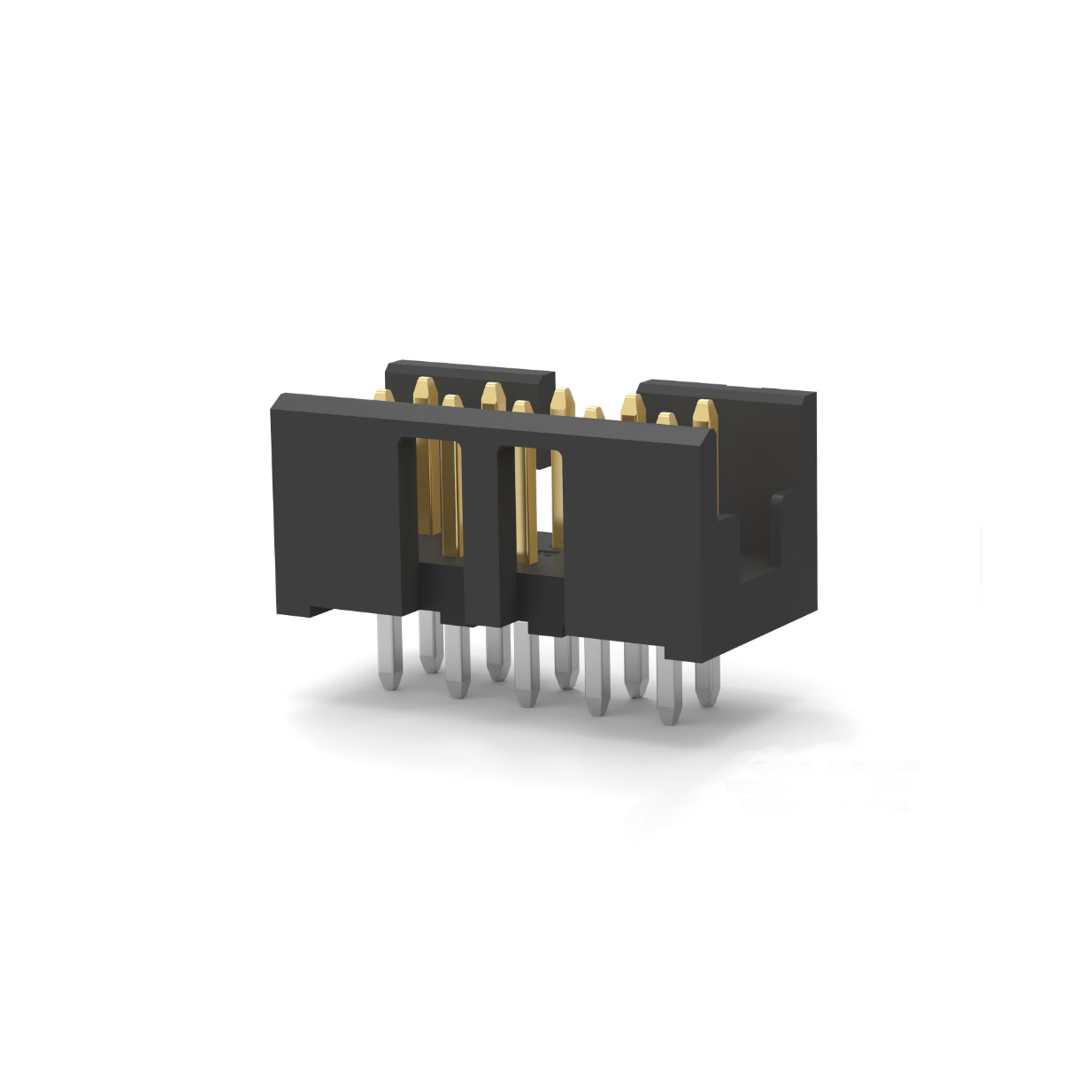

TE Connectivity Raychem Cable Protection 3-2823345-0	Black	Detent Lock	0.079 in	2 mm	Solder	Male Pin	Shrouded - 2 Wall	4 mm	0.157 in	5.51 mm	0.217 in	Thermoplastic	UL94 V-0	All	Tin	Gold	125 VAC	Header	Phosphor Bronze	30	2 A	Through Hole	30 Áin	0.76 Ám	125 °C	-40 °C	Square	0.079 in	2 mm	0.11 in	2.8 mm	157.5 Áin	4 Ám	2
TE Connectivity Raychem Cable Protection 1-2823345-2	Black	Detent Lock	0.079 in	2 mm	Solder	Male Pin	Shrouded - 2 Wall	4 mm	0.157 in	5.51 mm	0.217 in	Thermoplastic	UL94 V-0	All	Tin	Gold	125 VAC	Header	Phosphor Bronze	12	2 A	Through Hole	30 Áin	0.76 Ám	125 °C	-40 °C	Square	0.079 in	2 mm	0.11 in	2.8 mm	157.5 Áin	4 Ám	2

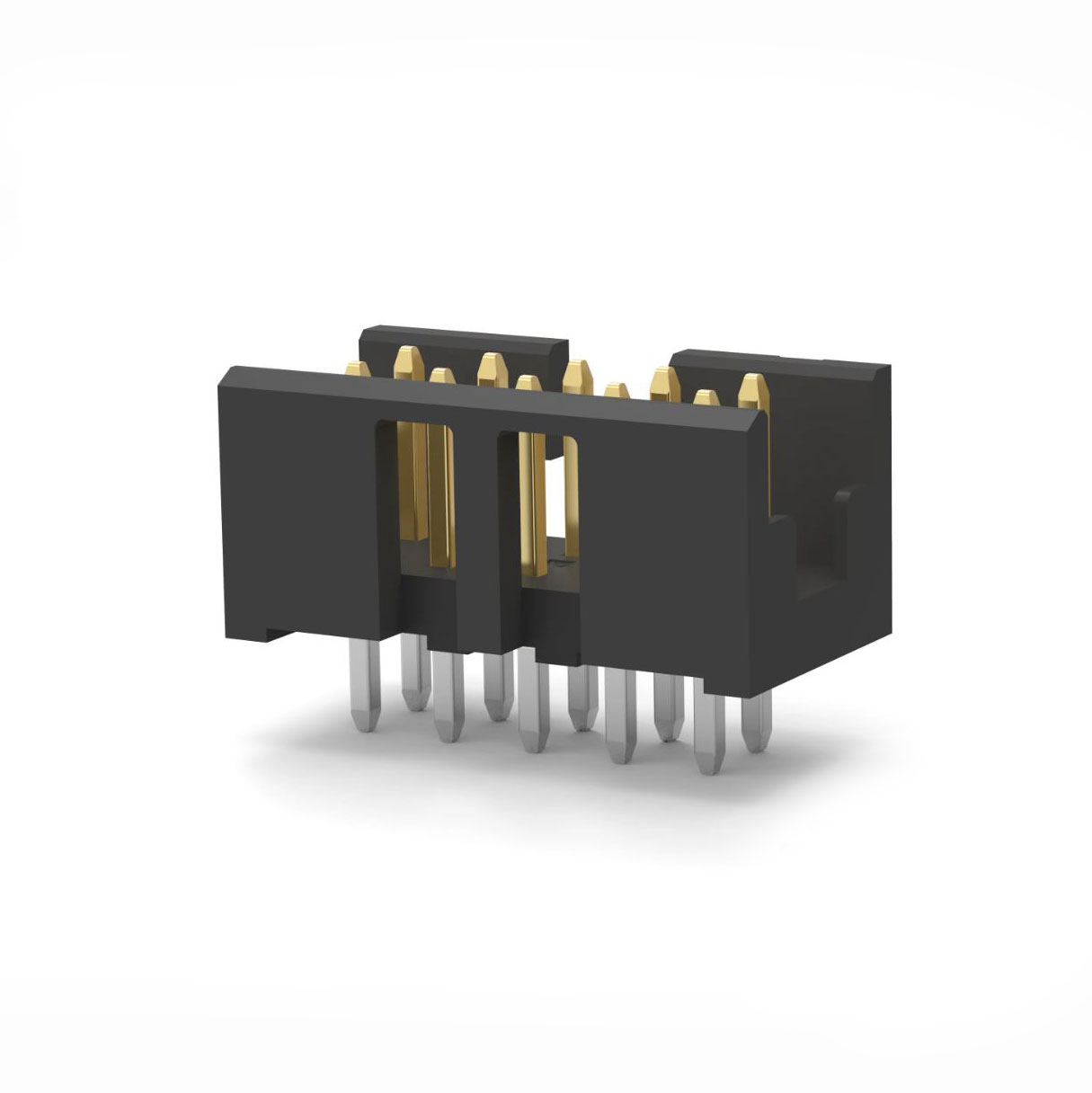

TE Connectivity Raychem Cable Protection 1-2823345-6	Black	Detent Lock	0.079 in	2 mm	Solder	Male Pin	Shrouded - 2 Wall	4 mm	0.157 in	5.51 mm	0.217 in	Thermoplastic	UL94 V-0	All	Tin	Gold	125 VAC	Header	Phosphor Bronze		2 A	Through Hole	30 Áin	0.76 Ám	125 °C	-40 °C	Square	0.079 in	2 mm	0.11 in	2.8 mm	157.5 Áin	4 Ám	2	16
TE Connectivity Raychem Cable Protection 2823345-4	Black	Detent Lock	0.079 in	2 mm	Solder	Male Pin	Shrouded - 2 Wall	4 mm	0.157 in	5.51 mm	0.217 in	Thermoplastic	UL94 V-0	All	Tin	Gold	125 VAC	Header	Phosphor Bronze	4	2 A	Through Hole	30 Áin	0.76 Ám	125 °C	-40 °C	Square	0.079 in	2 mm	0.11 in	2.8 mm	157.5 Áin	4 Ám	2

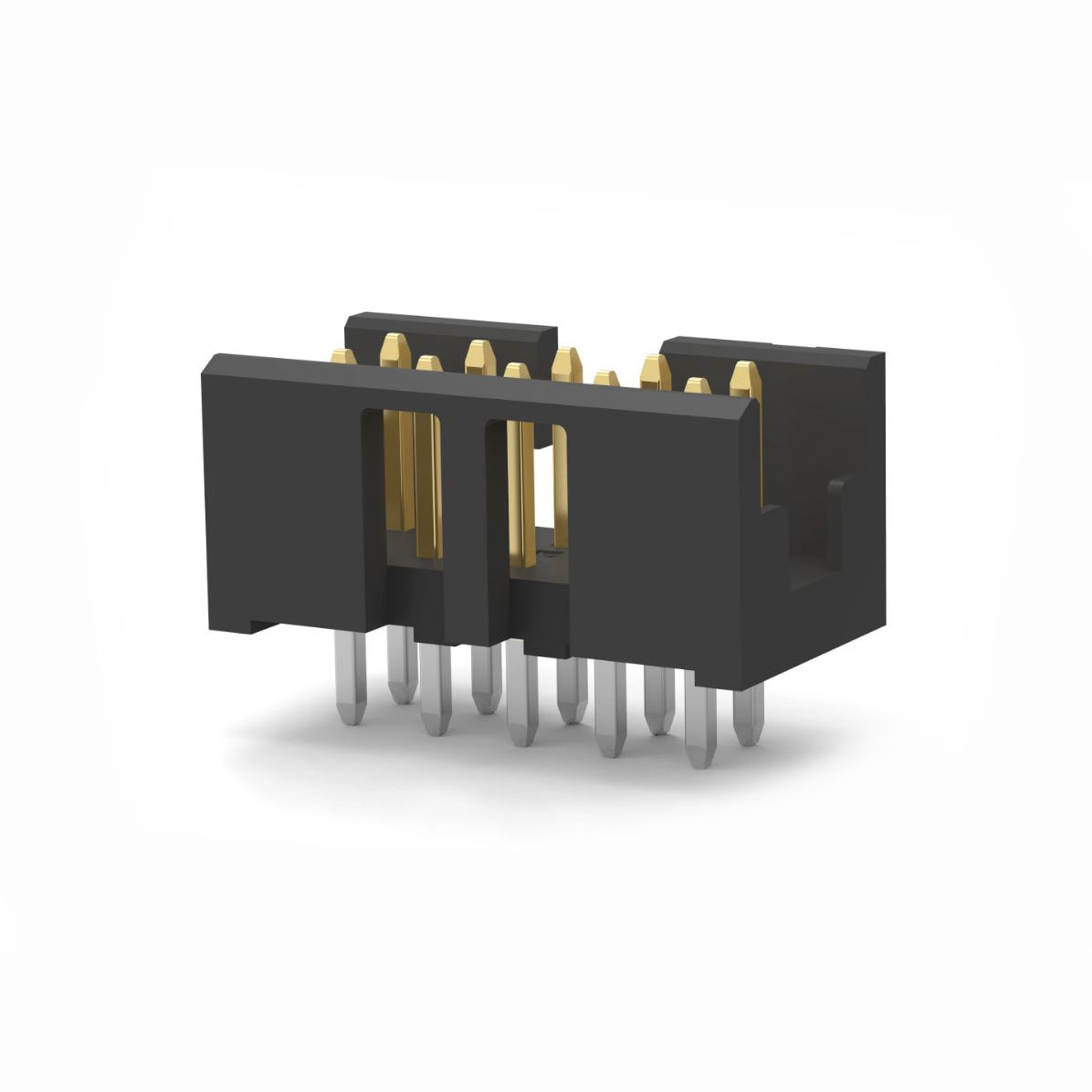

TE Connectivity Raychem Cable Protection 2-2823345-4	Black	Detent Lock	0.079 in	2 mm	Solder	Male Pin	Shrouded - 2 Wall	4 mm	0.157 in	5.51 mm	0.217 in	Thermoplastic	UL94 V-0	All	Tin	Gold	125 VAC	Header	Phosphor Bronze	24	2 A	Through Hole	30 Áin	0.76 Ám	125 °C	-40 °C	Square	0.079 in	2 mm	0.11 in	2.8 mm	157.5 Áin	4 Ám	2

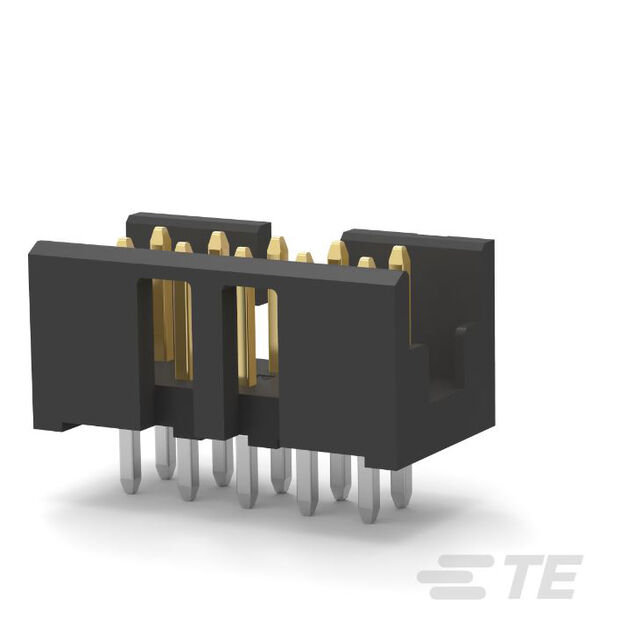

TE Connectivity Raychem Cable Protection 5-2823345-0	Black	Detent Lock	0.079 in	2 mm	Solder	Male Pin	Shrouded - 2 Wall	4 mm	0.157 in	5.51 mm	0.217 in	Thermoplastic	UL94 V-0	All	Tin	Gold	125 VAC	Header	Phosphor Bronze	50	2 A	Through Hole	30 Áin	0.76 Ám	125 °C	-40 °C	Square	0.079 in	2 mm	0.11 in	2.8 mm	157.5 Áin	4 Ám	2
TE Connectivity Raychem Cable Protection 2823345-8	Black	Detent Lock	0.079 in	2 mm	Solder	Male Pin	Shrouded - 2 Wall	4 mm	0.157 in	5.51 mm	0.217 in	Thermoplastic	UL94 V-0	All	Tin	Gold	125 VAC	Header	Phosphor Bronze	8	2 A	Through Hole	30 Áin	0.76 Ám	125 °C	-40 °C	Square	0.079 in	2 mm	0.11 in	2.8 mm	157.5 Áin	4 Ám	2
