MSI3116 Series
Manufacturer: Mechatronics Fan Group
Beta
⌘K

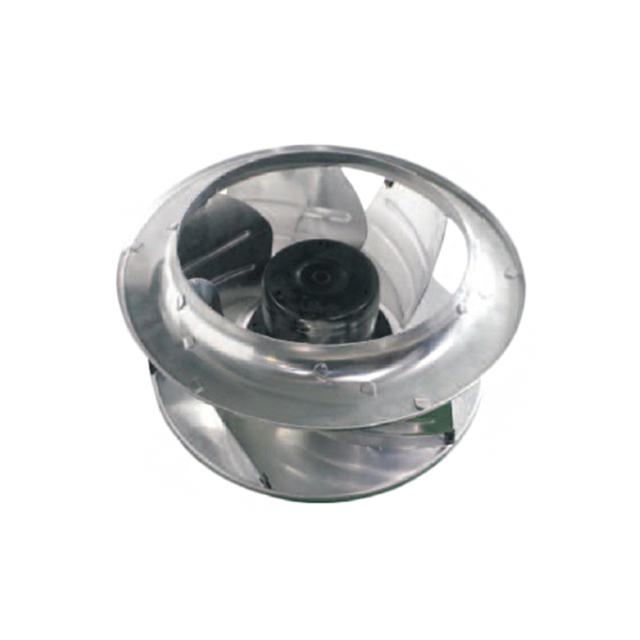

FAN IMP MTRZD 315X161.0MM 48VDC
| Part | Current Rating (Amps) | Material - Blade [custom] | Voltage - Rated | Bearing Type | Static Pressure | Static Pressure | Size / Dimension [diameter] | Size / Dimension | RPM | Air Flow | Air Flow | Weight | Weight | Fan Type | Width [y] | Termination | Noise | Features | Approval Agency |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Mechatronics Fan Group | 8.8 A | Aluminum | 48 VDC | Ball | 3.15 in H2O | 784.7 Pa | 315 mm | Round | 2100 RPM | 1675 CFM | 46.9 m³/min | 6.6 lbs | 3 kg | Motorized Impellers | 161 mm | 3 Wire Leads | 76 dB(A) | Auto Restart Speed Sensor (Tach) Voltage Control | CE cUL TUV UL |
Mechatronics Fan Group | 8.8 A | Aluminum | 48 VDC | Ball | 3.15 in H2O | 784.7 Pa | 315 mm | Round | 2100 RPM | 1675 CFM | 46.9 m³/min | 6.6 lbs | 3 kg | Motorized Impellers | 161 mm | 2 Wire Leads | 76 dB(A) | Auto Restart | CE cUL TUV UL |
Mechatronics Fan Group | 8.8 A | Aluminum | 48 VDC | Ball | 3.15 in H2O | 784.7 Pa | 315 mm | Round | 2100 RPM | 1675 CFM | 46.9 m³/min | 6.6 lbs | 3 kg | Motorized Impellers | 161 mm | 3 Wire Leads | 76 dB(A) | Auto Restart Speed Sensor (Tach) | CE cUL TUV UL |
Mechatronics Fan Group | 8.8 A | Aluminum | 48 VDC | Ball | 3.15 in H2O | 784.7 Pa | 315 mm | Round | 2100 RPM | 1675 CFM | 46.9 m³/min | 6.6 lbs | 3 kg | Motorized Impellers | 161 mm | 3 Wire Leads | 76 dB(A) | Auto Restart Locked Rotor Sensor | CE cUL TUV UL |
Mechatronics Fan Group | 8.8 A | Aluminum | 48 VDC | Ball | 3.15 in H2O | 784.7 Pa | 315 mm | Round | 2100 RPM | 1675 CFM | 46.9 m³/min | 6.6 lbs | 3 kg | Motorized Impellers | 161 mm | 4 Wire Leads | 76 dB(A) | Auto Restart PWM Control Speed Sensor (Tach) | CE cUL TUV UL |
