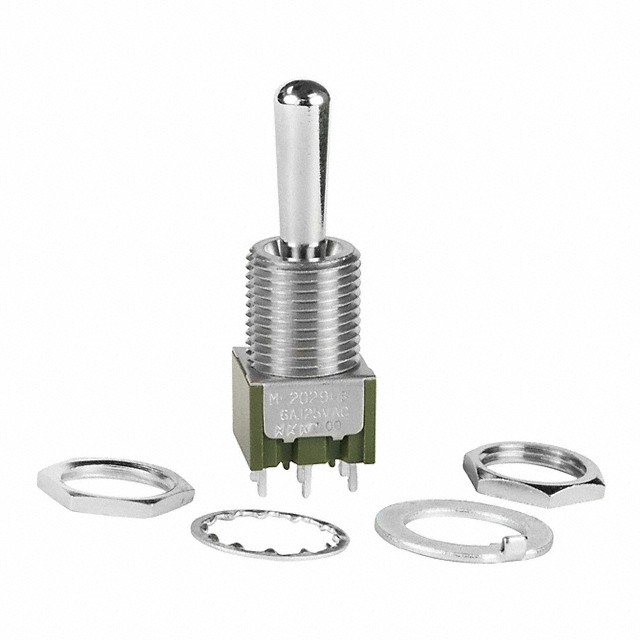

M2029B2 Series
Manufacturer: NKK Switches
Beta
⌘K
SWITCH TOGGLE DPDT 6A 125V
| Part | Electrical Life | Actuator Material | Features | Panel Cutout Dimensions [diameter] | Termination Style | Operating Temperature [Max] | Operating Temperature [Min] | Illumination | Voltage Rating - DC | Bushing Thread | Switch Function | Voltage Rating - AC | Actuator Length [x] | Current Rating (Amps) | Mounting Type | Actuator Type | Circuit |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 NKK Switches | 25000 Steps | Brass Chrome Plated | Epoxy Sealed Terminals | 12.5 mm | Solder Lug | 85 °C | -30 ░C | Non-Illuminated | 30 V | M12 x 1 | On-Off-Mom | 125 V | 17.5 mm | 3 A 6 A | Panel Mount | Standard Round | DPDT |
