C146 10G015 Series

Catalog

CONN HOOD SIDE ENTRY SZA10 PG21

Part	Style	Ingress Protection	Connector Type	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Thread Size	Housing Material	Operating Temperature [Min]	Operating Temperature [Max]	Lock Location	Size	Features

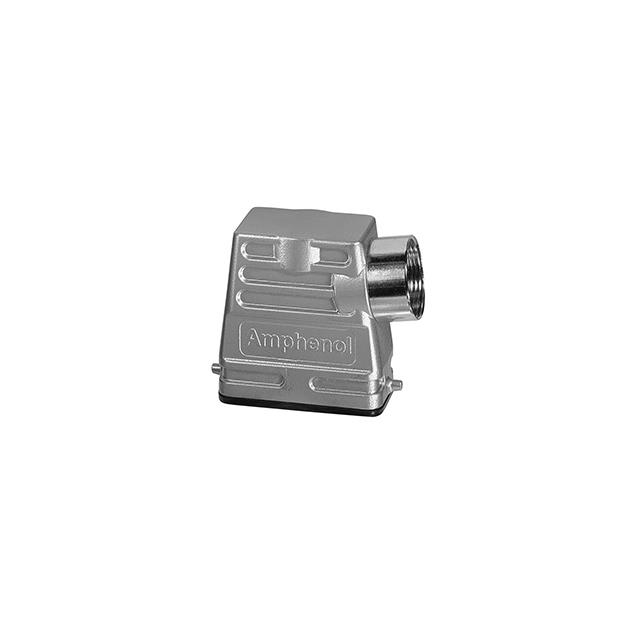

Amphenol Tuchel Industrial C146 10G015 500 2	Side Entry	IP65 - Dust Tight Water Resistant	Hood	2.539 "	29.5 mm	2.461 "	1.161 in	64.5 mm	62.5 mm	PG21	Aluminum Alloy Die Cast	-40 C	100 °C	Locking Clip (1) on Base Bottom	A10
Amphenol Tuchel Industrial C146 10G015 501 2	Side Entry	IP65 - Dust Tight Water Resistant	Hood	2.539 "	29.5 mm	2.461 "	1.161 in	64.5 mm	62.5 mm	PG16	Aluminum Alloy Die Cast	-40 C	100 °C	Locking Clip (1) on Base Bottom	A10

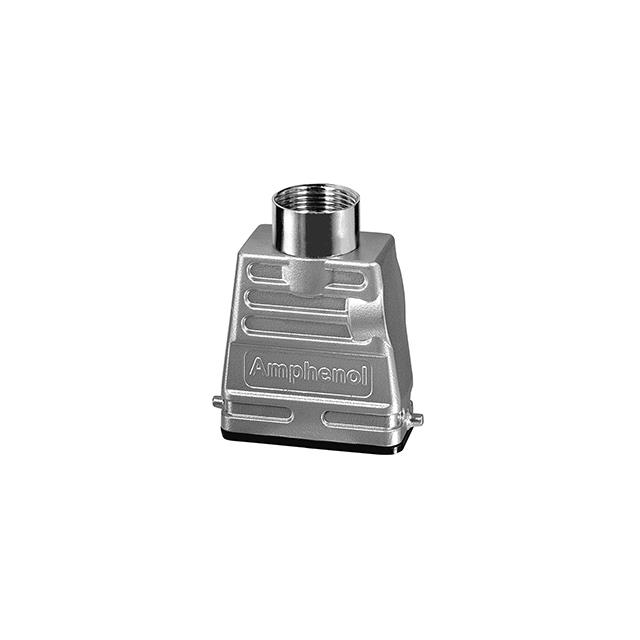

Amphenol Tuchel Industrial C146 10G015 600 2	Top Entry	IP65 - Dust Tight Water Resistant	Hood	2.539 "	29.5 mm	2.461 "	1.161 in	64.5 mm	62.5 mm	PG21	Aluminum Alloy Die Cast	-40 C	100 °C	Locking Clip (1) on Base Bottom	A10

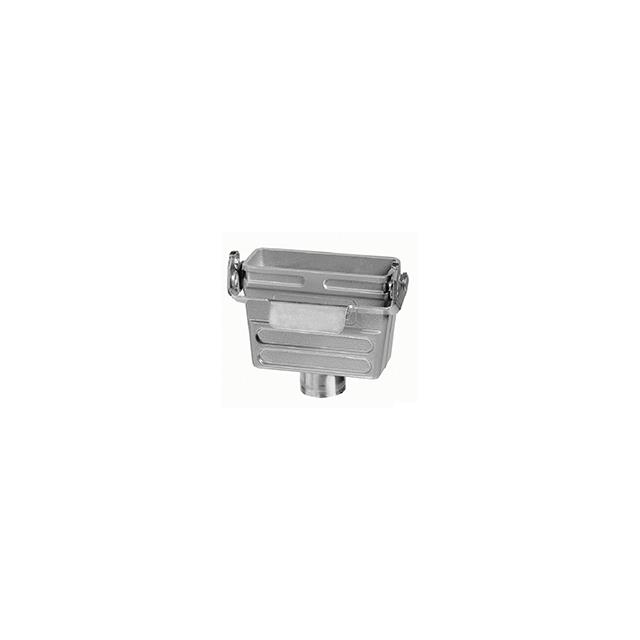

Amphenol Tuchel Industrial C146 10G015 804 2	Bottom Entry Top or Bottom Entry	IP65 - Dust Tight Water Resistant	Hood - Coupling	2.323 in	29.5 mm	2.461 "	1.161 in	59 mm	62.5 mm	PG21	Aluminum Alloy Die Cast	-40 C	100 °C	Locking Clip (1) on Hood Top	A10	Cable to Cable
