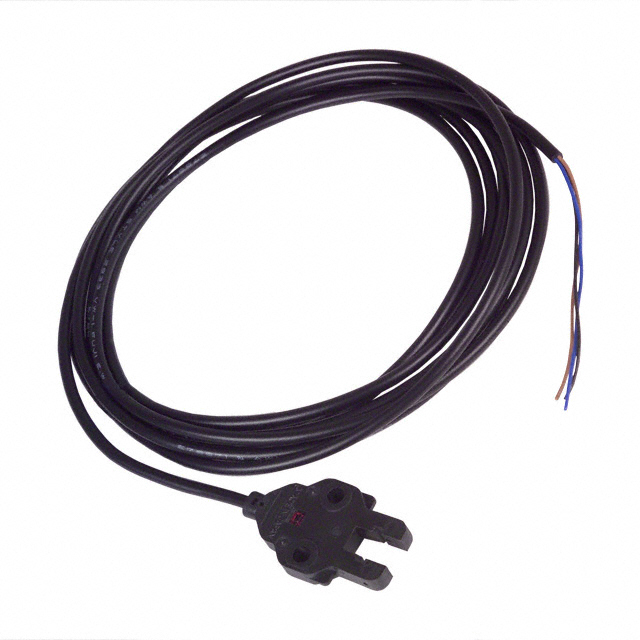

EE-SX770 Series

Catalog

PHOTOMICROSENSOR WITH SLIM CABLE

Part	Operating Temperature [Max]	Operating Temperature [Min]	Sensing Distance	Sensing Distance	Sensing Method	Package / Case	Output Configuration	Mounting Type	Current - Supply	Voltage - Supply [Max]	Voltage - Supply [Min]
Omron Automation and Safety EE-SX770R 5M	55 °C	-25 °C	5 mm	0.197 in	Through-Beam	Module Slot Type Wire Leads	PNP - Open Collector/Dark-ON	Chassis Mount M3 Screw

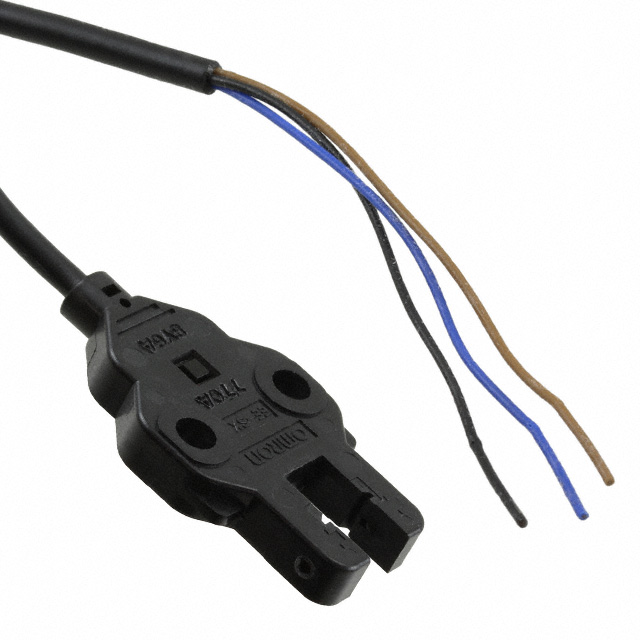

Omron Automation and Safety EE-SX770A	55 °C	-25 °C	5 mm	0.197 in	Through-Beam	Module Wire Leads	NPN - Open Collector/Dark-ON	Chassis Mount M3 Screw	35 mA	24 V	5 V
Omron Automation and Safety EE-SX770R	55 °C	-25 °C	5 mm	0.197 in	Through-Beam	Module Wire Leads	PNP - Open Collector/Dark-ON	Chassis Mount M3 Screw	30 mA	24 V	5 V
