C14610N025 Series

Catalog

CONN BASE SIDE ENTRY SZA16 M20

Part	Operating Temperature [Min]	Operating Temperature [Max]	Housing Material	Ingress Protection	Style	Lock Location	Features	Thread Size	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size	Connector Type

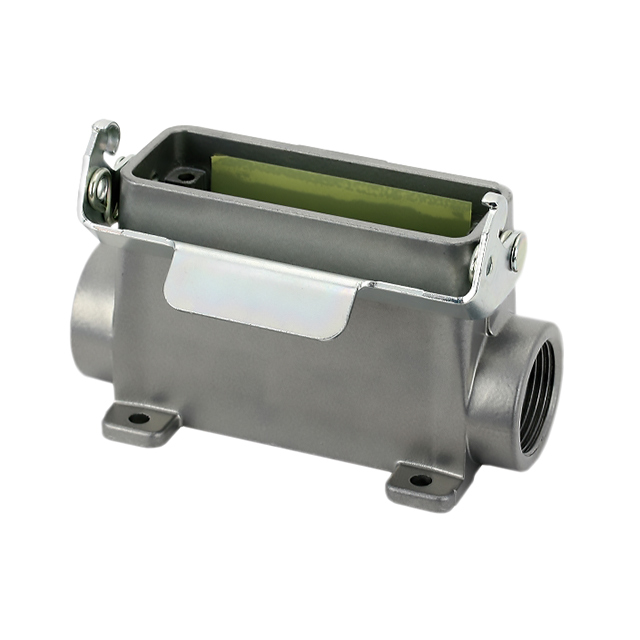

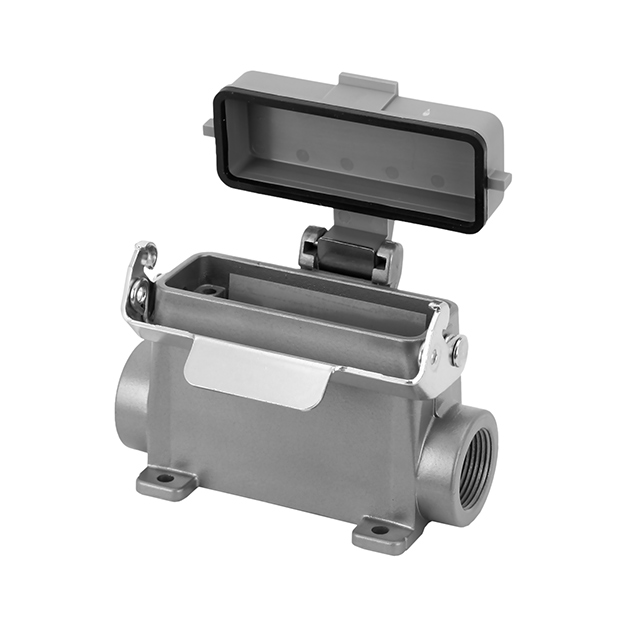

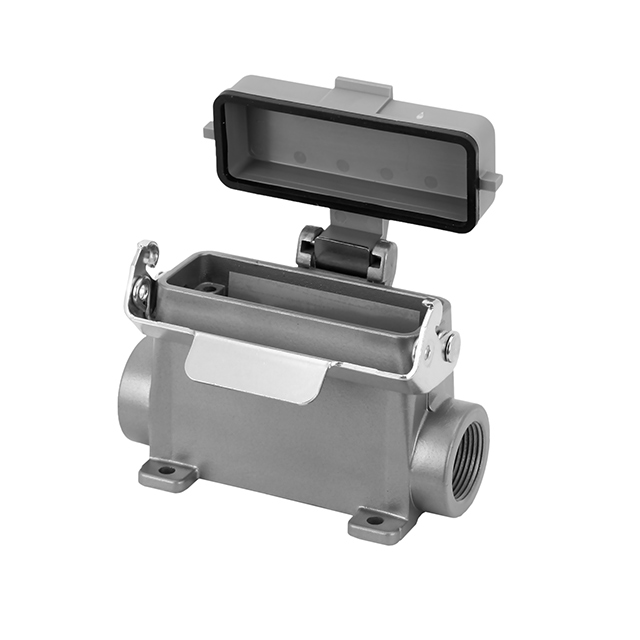

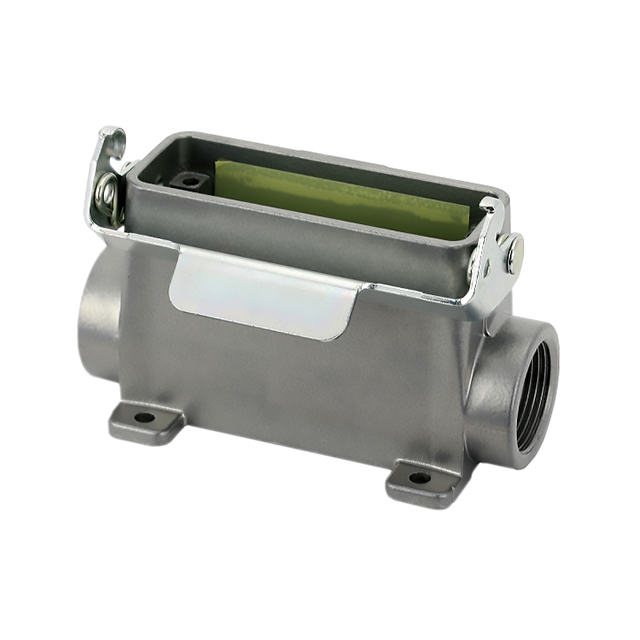

Amphenol Tuchel Industrial C14610N0258072	-40 C	100 °C	Aluminum Alloy Die Cast	IP65 - Dust Tight Water Resistant	Side Entry	Locking Clip (1) on Base Bottom	Cover	M20	101 mm	50 mm	57 mm	1.969 in	3.976 in	2.244 "	A16	Base - Box Mount
Amphenol Tuchel Industrial C14610N0256072	-40 C	100 °C	Aluminum Alloy Die Cast	IP65 - Dust Tight Water Resistant	Side Entry	Locking Clip (1) on Base Bottom		M20	101 mm	50 mm	57 mm	1.969 in	3.976 in	2.244 "	A16	Base - Box Mount
Amphenol Tuchel Industrial C14610N0256012	-40 C	100 °C	Aluminum Alloy Die Cast	IP65 - Dust Tight Water Resistant	Side Entry	Locking Clip (1) on Base Bottom	Feed Through	M20	101 mm	50 mm	57 mm	1.969 in	3.976 in	2.244 "	A16	Base - Box Mount
Amphenol Tuchel Industrial C14610N0255012	-40 C	100 °C	Aluminum Alloy Die Cast	IP65 - Dust Tight Water Resistant	Side Entry	Locking Clip (1) on Base Bottom		M20	101 mm	50 mm	57 mm	1.969 in	3.976 in	2.244 "	A16	Base - Box Mount
