305-046 Series
Manufacturer: EDAC Inc.
Beta
⌘K

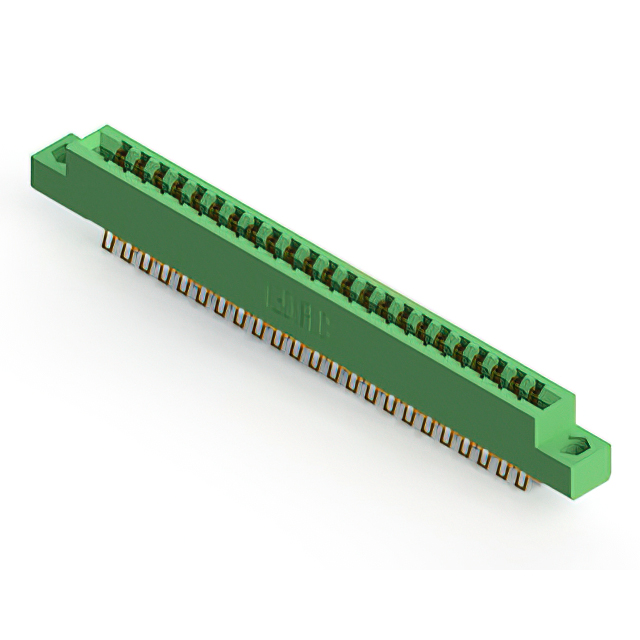

CARD EDGE CONNECTOR, DUAL SIDE, 1.57 MM, 46 CONTACTS, THROUGH HOLE MOUNT, STRAIGHT
| Part | Material - Insulation | Termination Rows [custom] | Pitch | Pitch | Number of Rows [custom] | Number of Positions/Bay/Row | Color | Operating Temperature [Min] | Operating Temperature [Max] | Gender | Number of Positions | Contact Finish | Contact Material | Termination | Flange Feature [diameter] | Flange Feature | Flange Feature [diameter] | Contact Finish Thickness | Contact Finish Thickness | Read Out | Card Thickness [Max] | Card Thickness [Min] | Contact Type | Card Type | Mounting Type | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 EDAC Inc. | Polyester Thermoplastic | 2 | 3.96 mm | 0.156 in | 2 | 23 | Green | -40 C | 105 ░C | Female | 46 | Gold | Copper Alloy | Solder | 0.116 " | Floating Bobbin Flush Mount | 2.95 mm | 0.25 Ám | 10 Áin | Dual | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Semi Bellows | Non Specified - Dual Edge | Panel Mount Through Hole | |
 EDAC Inc. | Polyester Thermoplastic | 2 | 3.96 mm | 0.156 in | 2 | 23 | Green | -40 C | 105 ░C | Female | 46 | Gold | Copper Alloy | Solder | 0.25 Ám | 10 Áin | Dual | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Semi Bellows | Non Specified - Dual Edge | Through Hole | ||||
 EDAC Inc. | Polyester Thermoplastic | 2 | 3.96 mm | 0.156 in | 2 | 23 | Green | -40 C | 105 ░C | Female | 46 | Gold | Copper Alloy | Solder | 4-40 Flush Mount Threaded Insert Top Opening | 0.25 Ám | 10 Áin | Dual | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Semi Bellows | Non Specified - Dual Edge | Board Edge Straddle Mount | Card Extender Card Guides | ||
 EDAC Inc. | Polyester Thermoplastic | 2 | 3.96 mm | 0.156 in | 2 | 23 | Green | -40 C | 105 ░C | Female | 46 | Gold | Copper Alloy | Solder | 0.128 " | Flush Mount Top Opening Unthreaded | 3.25 mm | 0.25 Ám | 10 Áin | Dual | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Semi Bellows | Non Specified - Dual Edge | Panel Mount Through Hole | |
 EDAC Inc. | Polyester Thermoplastic | 2 | 3.96 mm | 0.156 in | 2 | 23 | Green | -40 C | 105 ░C | Female | 46 | Gold | Copper Alloy | Solder | 4-40 Flush Mount Threaded Insert Top Opening | 0.25 Ám | 10 Áin | Dual | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Semi Bellows | Non Specified - Dual Edge | Board Edge Straddle Mount | Card Extender Card Guides | ||
 EDAC Inc. | Polyester Thermoplastic | 2 | 3.96 mm | 0.156 in | 2 | 23 | Green | -40 C | 105 ░C | Female | 46 | Gold | Copper Alloy | Solder Eyelet(s) | 4-40 Flush Mount Threaded Insert Top Opening | 0.25 Ám | 10 Áin | Dual | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Semi Bellows | Non Specified - Dual Edge | Panel Mount | |||
 EDAC Inc. | Polyester Thermoplastic | 2 | 3.96 mm | 0.156 in | 2 | 23 | Green | -40 C | 105 ░C | Female | 46 | Gold | Copper Alloy | Solder | 4-40 Flush Mount Threaded Insert Top Opening | 0.25 Ám | 10 Áin | Dual | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Semi Bellows | Non Specified - Dual Edge | Panel Mount Through Hole | |||
 EDAC Inc. | Polyester Thermoplastic | 2 | 3.96 mm | 0.156 in | 2 | 23 | Green | -40 C | 105 ░C | Female | 46 | Gold | Copper Alloy | Solder | 0.128 " | Flush Mount Top Opening Unthreaded | 3.25 mm | 0.25 Ám | 10 Áin | Dual | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Semi Bellows | Non Specified - Dual Edge | Panel Mount Through Hole | |
 EDAC Inc. | Polyester Thermoplastic | 2 | 3.96 mm | 0.156 in | 2 | 23 | Green | -40 C | 105 ░C | Female | 46 | Gold | Copper Alloy | Solder Eyelet(s) | 0.128 " | Flush Mount Top Opening Unthreaded | 3.25 mm | 0.25 Ám | 10 Áin | Dual | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Semi Bellows | Non Specified - Dual Edge | Panel Mount | |
 EDAC Inc. | Polyester Thermoplastic | 2 | 3.96 mm | 0.156 in | 2 | 23 | Green | -40 C | 105 ░C | Female | 46 | Gold | Copper Alloy | Solder | 0.156 " | Flush Mount Top Opening Unthreaded | 3.96 mm | 0.25 Ám | 10 Áin | Dual | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Semi Bellows | Non Specified - Dual Edge | Board Edge Straddle Mount | Card Extender |
