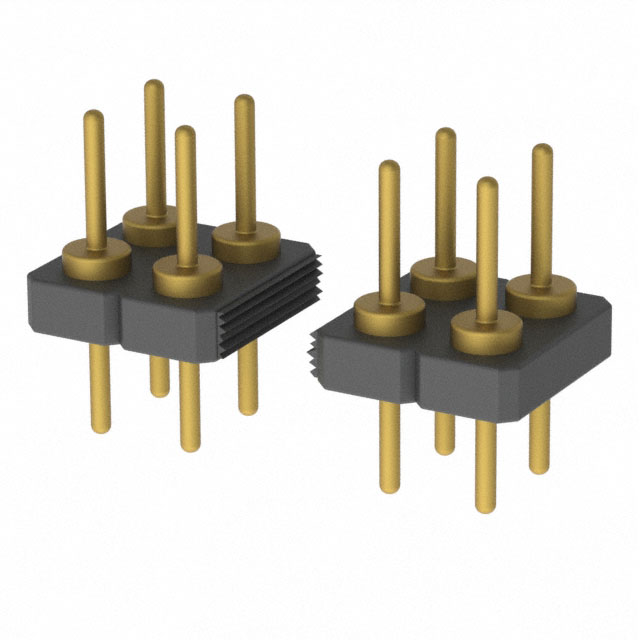

435-10 Series

Manufacturer: Mill-Max Manufacturing Corp.

Catalog

CONN HEADER VERT 12POS 2.54MM

Part	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Number of Positions	Shrouding	Connector Type	Contact Finish - Mating	Overall Contact Length	Contact Shape	Number of Positions Loaded	Contact Material	Insulation Height [z]	Insulation Height [z]	Contact Finish - Post	Pitch - Mating	Pitch - Mating	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Contact Type	Mounting Type	Termination	Fastening Type	Insulation Color	Contact Length - Mating	Contact Length - Mating	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Insulation Material	Number of Rows [custom]	Contact Length - Post	Contact Length - Post
Mill-Max Manufacturing Corp. 435-10-212-00-160000	10 Áin	0.25 çm	12	Unshrouded	Header	Gold	0.299 in 7.6 mm	Circular	All	Brass Alloy	1.27 mm	0.05 in	Gold	0.1 "	2.54 mm	0.1 in	2.54 mm	Male Pin	Through Hole	Solder	Push-Pull	Black	0.125 in	3.18 mm	0.25 µm	10 µin	Polycyclohexylenedimethylene Terephthalate (PCT)	2	0.104 in	2.64 mm
Mill-Max Manufacturing Corp. 435-10-218-00-160000	10 Áin	0.25 çm	18	Unshrouded	Header	Gold	0.299 in 7.6 mm	Circular	All	Brass Alloy	1.27 mm	0.05 in	Gold	0.1 "	2.54 mm	0.1 in	2.54 mm	Male Pin	Through Hole	Solder	Push-Pull	Black	0.125 in	3.18 mm	0.25 µm	10 µin	Polycyclohexylenedimethylene Terephthalate (PCT)	2	0.104 in	2.64 mm
Mill-Max Manufacturing Corp. 435-10-242-00-160000	10 Áin	0.25 çm	42	Unshrouded	Header	Gold	0.299 in 7.6 mm	Circular	All	Brass Alloy	1.27 mm	0.05 in	Gold	0.1 "	2.54 mm	0.1 in	2.54 mm	Male Pin	Through Hole	Solder	Push-Pull	Black	0.125 in	3.18 mm	0.25 µm	10 µin	Polycyclohexylenedimethylene Terephthalate (PCT)	2	0.104 in	2.64 mm
Mill-Max Manufacturing Corp. 435-10-270-00-160000	10 Áin	0.25 çm	70	Unshrouded	Header	Gold	0.299 in 7.6 mm	Circular	All	Brass Alloy	1.27 mm	0.05 in	Gold	0.1 "	2.54 mm	0.1 in	2.54 mm	Male Pin	Through Hole	Solder	Push-Pull	Black	0.125 in	3.18 mm	0.25 µm	10 µin	Polycyclohexylenedimethylene Terephthalate (PCT)	2	0.104 in	2.64 mm
Mill-Max Manufacturing Corp. 435-10-204-00-160000	10 Áin	0.25 çm	4	Unshrouded	Header	Gold	0.299 in 7.6 mm	Circular	All	Brass Alloy	1.27 mm	0.05 in	Gold	0.1 "	2.54 mm	0.1 in	2.54 mm	Male Pin	Through Hole	Solder	Push-Pull	Black	0.125 in	3.18 mm	0.25 µm	10 µin	Polycyclohexylenedimethylene Terephthalate (PCT)	2	0.104 in	2.64 mm
Mill-Max Manufacturing Corp. 435-10-236-00-160000	10 Áin	0.25 çm	36	Unshrouded	Header	Gold	0.299 in 7.6 mm	Circular	All	Brass Alloy	1.27 mm	0.05 in	Gold	0.1 "	2.54 mm	0.1 in	2.54 mm	Male Pin	Through Hole	Solder	Push-Pull	Black	0.125 in	3.18 mm	0.25 µm	10 µin	Polycyclohexylenedimethylene Terephthalate (PCT)	2	0.104 in	2.64 mm

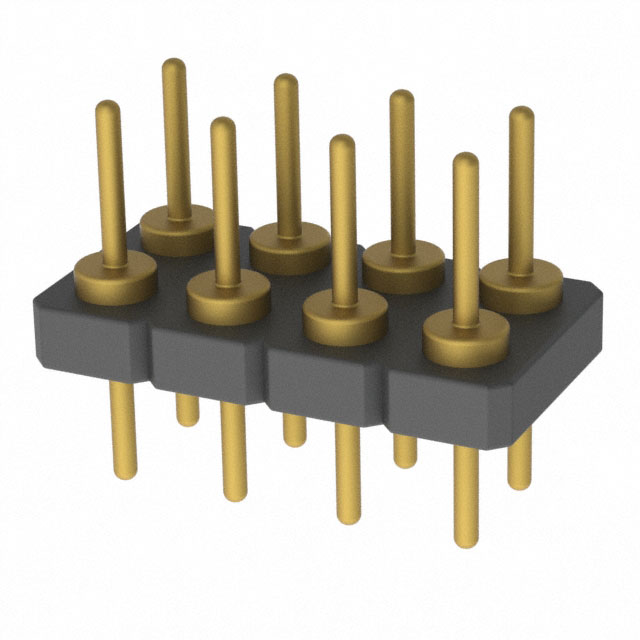

Mill-Max Manufacturing Corp. 435-10-208-00-160000	10 Áin	0.25 çm	8	Unshrouded	Header	Gold	0.299 in 7.6 mm	Circular	All	Brass Alloy	1.27 mm	0.05 in	Gold	0.1 "	2.54 mm	0.1 in	2.54 mm	Male Pin	Through Hole	Solder	Push-Pull	Black	0.125 in	3.18 mm	0.25 µm	10 µin	Polycyclohexylenedimethylene Terephthalate (PCT)	2	0.104 in	2.64 mm
Mill-Max Manufacturing Corp. 435-10-238-00-160000	10 Áin	0.25 çm	38	Unshrouded	Header	Gold	0.299 in 7.6 mm	Circular	All	Brass Alloy	1.27 mm	0.05 in	Gold	0.1 "	2.54 mm	0.1 in	2.54 mm	Male Pin	Through Hole	Solder	Push-Pull	Black	0.125 in	3.18 mm	0.25 µm	10 µin	Polycyclohexylenedimethylene Terephthalate (PCT)	2	0.104 in	2.64 mm
Mill-Max Manufacturing Corp. 435-10-228-00-160000	10 Áin	0.25 çm	28	Unshrouded	Header	Gold	0.299 in 7.6 mm	Circular	All	Brass Alloy	1.27 mm	0.05 in	Gold	0.1 "	2.54 mm	0.1 in	2.54 mm	Male Pin	Through Hole	Solder	Push-Pull	Black	0.125 in	3.18 mm	0.25 µm	10 µin	Polycyclohexylenedimethylene Terephthalate (PCT)	2	0.104 in	2.64 mm
Mill-Max Manufacturing Corp. 435-10-260-00-160000	10 Áin	0.25 çm	60	Unshrouded	Header	Gold	0.299 in 7.6 mm	Circular	All	Brass Alloy	1.27 mm	0.05 in	Gold	0.1 "	2.54 mm	0.1 in	2.54 mm	Male Pin	Through Hole	Solder	Push-Pull	Black	0.125 in	3.18 mm	0.25 µm	10 µin	Polycyclohexylenedimethylene Terephthalate (PCT)	2	0.104 in	2.64 mm
