HLMA-QL00 Series

Catalog

LED AMBER CLEAR SMD

Part	Height (Max) [z]	Lens Size [diameter]	Configuration	Lens Transparency	Color	Current - Test	Viewing Angle	Wavelength - Dominant	Mounting Type	Size / Dimension [x]	Size / Dimension [y]	Lens Color	Lens Style	Package / Case	Millicandela Rating	Voltage - Forward (Vf) (Typ)	Wavelength - Peak	Supplier Device Package

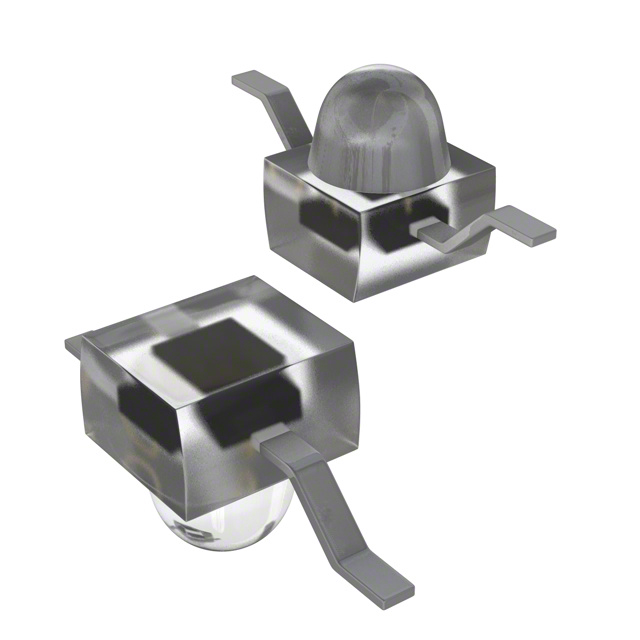

Broadcom Limited HLMA-QL00-S0031	2.92 mm	1.78 mm	Standard	Clear	Amber	20 mA	15 °	590 nm	Surface Mount	1.99 mm	2.21 mm	Colorless	Round with Domed Top	2-SMD Z-Bend	500 mcd	1.9 V	592 nm
Broadcom Limited HLMA-QL00-S0011	2.92 mm	1.78 mm	Standard	Clear	Amber	20 mA	15 °	590 nm	Surface Mount	2.09 mm	2.21 mm	Colorless	Round with Domed Top	2-SMD Gull Wing	500 mcd	1.9 V	592 nm	Dome Lens Type
Broadcom Limited HLMA-QL00-UV011	2.92 mm	1.78 mm	Standard	Clear	Amber	20 mA	15 °	590 nm	Surface Mount	1.99 mm	2.21 mm	Colorless	Round with Domed Top	2-SMD Gull Wing	825 mcd	1.9 V	592 nm

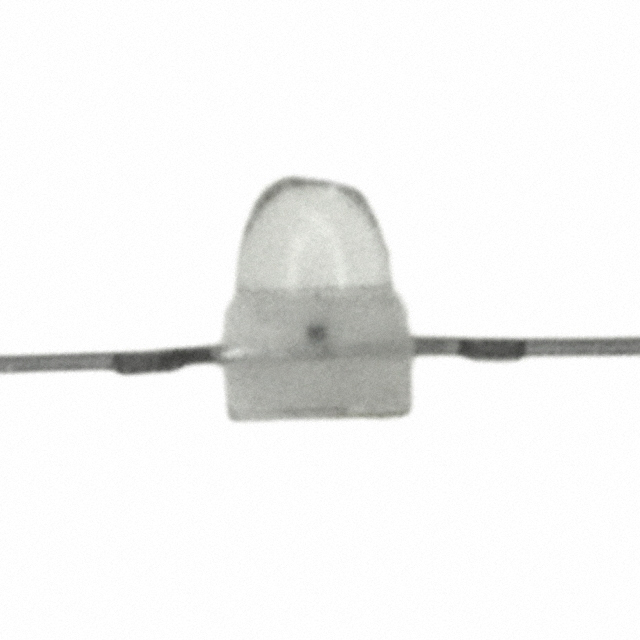

Broadcom Limited HLMA-QL00	2.92 mm	1.78 mm	Standard	Clear	Amber	20 mA	15 °	590 nm	Axial Through Hole	1.99 mm	2.21 mm	Colorless	Round with Domed Top	Axial Flat Leads	500 mcd	1.9 V	592 nm
Broadcom Limited HLMA-QL00-TVK11	2.92 mm	1.78 mm	Standard	Clear	Amber	20 mA	15 °	590 nm	Surface Mount	1.99 mm	2.21 mm	Colorless	Round with Domed Top	2-SMD Gull Wing	750 mcd	1.9 V	592 nm
