M13103 Series
Manufacturer: ALPHA WIRE
Beta
⌘K

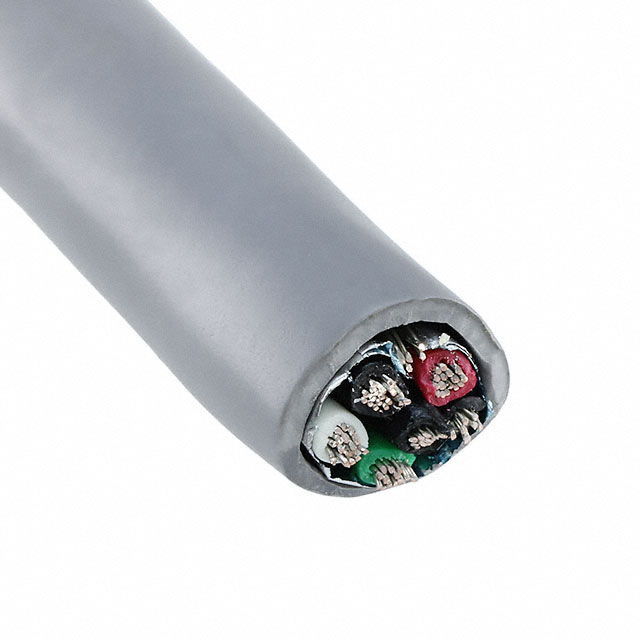

MULTI-PAIR 6COND 22AWG SLATE
| Part | Shield Coverage | Shield Material | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Jacket Color | Number of Conductors | Ratings | Conductor Insulation | Shield Type | Conductor Strand [custom] | Conductor Strand [custom] | Wire Gauge | Length | Length | Cable Type | Conductor Material | Voltage | Jacket (Insulation) Material | Operating Temperature [Max] | Operating Temperature [Min] | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ALPHA WIRE | 100 % | Aluminum | 0.271 in | 6.88 mm | Slate | 6 | UL Style 2919 | Polypropylene (PP) | Foil | 28 AWG | 7 | 22 AWG | 152.4 m | 500 ft | Multi-Pair | Copper Tinned | 300 VDC | Poly-Vinyl Chloride (PVC) | 80 °C | -20 ░C | 0.813 mm | 0.032 in |
