337-013 Series
Manufacturer: EDAC Inc.
Beta
⌘K
CARD EDGE CONNECTOR, SINGLE SIDE, 1.57 MM, 13 CONTACTS, THROUGH HOLE MOUNT, STRAIGHT
| Part | Material - Insulation | Termination Rows | Contact Type | Number of Positions | Number of Rows | Operating Temperature [Min] | Operating Temperature [Max] | Contact Finish | Mounting Type | Read Out | Number of Positions/Bay/Row | Color | Contact Finish Thickness | Contact Finish Thickness | Pitch | Pitch | Card Thickness [Max] | Card Thickness [Min] | Contact Material | Termination | Gender | Card Type | Flange Feature | Features | Flange Feature [diameter] | Flange Feature [diameter] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 EDAC Inc. | Polyester Thermoplastic | 1 | Cantilever | 13 | 1 | -40 C | 105 ░C | Gold | Through Hole | Single | 13 | Green | 0.25 Ám | 10 Áin | 3.96 mm | 0.156 in | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Copper Alloy | Solder | Female | Non Specified - Single Edge | 4-40 Flush Mount Threaded Insert Top Opening | |||

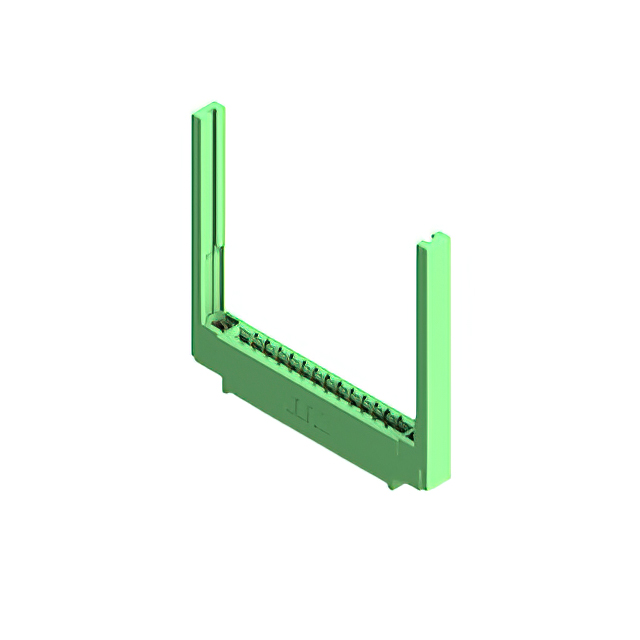

 EDAC Inc. | Polyester Thermoplastic | 1 | Cantilever | 13 | 1 | -40 C | 105 ░C | Gold | Through Hole | Single | 13 | Green | 0.25 Ám | 10 Áin | 3.96 mm | 0.156 in | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Copper Alloy | Solder | Female | Non Specified - Single Edge | 4-40 Threaded Insert Top Mount Opening | Card Guides | ||
 EDAC Inc. | Polyester Thermoplastic | 1 | Cantilever | 13 | 1 | -40 C | 105 ░C | Gold | Through Hole | Single | 13 | Green | 0.25 Ám | 10 Áin | 3.96 mm | 0.156 in | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Copper Alloy | Wire Wrap | Female | Non Specified - Single Edge | Floating Bobbin Top Mount Opening | 0.116 " | 2.95 mm | |
 EDAC Inc. | Polyester Thermoplastic | 1 | Cantilever | 13 | 1 | -40 C | 105 ░C | Gold | Through Hole | Single | 13 | Green | 0.25 Ám | 10 Áin | 3.96 mm | 0.156 in | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Copper Alloy | Wire Wrap | Female | Non Specified - Single Edge | 0.128 " | 3.25 mm | ||
 EDAC Inc. | Polyester Thermoplastic | 1 | Cantilever | 13 | 1 | -40 C | 105 ░C | Gold | Through Hole | Single | 13 | Green | 0.25 Ám | 10 Áin | 3.96 mm | 0.156 in | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Copper Alloy | Solder | Female | Non Specified - Single Edge | Floating Bobbin Flush Mount | 0.116 " | 2.95 mm | |
 EDAC Inc. | Polyester Thermoplastic | 1 | Cantilever | 13 | 1 | -40 C | 105 ░C | Gold | Right Angle Through Hole | Single | 13 | Green | 0.25 Ám | 10 Áin | 3.96 mm | 0.156 in | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Copper Alloy | Wire Wrap | Female | Non Specified - Single Edge | 4-40 Threaded Insert Top Mount Opening | |||
 EDAC Inc. | Polyester Thermoplastic | 1 | Cantilever | 13 | 1 | -40 C | 105 ░C | Gold | Through Hole | Single | 13 | Green | 0.25 Ám | 10 Áin | 3.96 mm | 0.156 in | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Copper Alloy | Wire Wrap | Female | Non Specified - Single Edge | M3 Threaded Insert Top Mount Opening | |||
 EDAC Inc. | Polyester Thermoplastic | 1 | Cantilever | 13 | 1 | -40 C | 105 ░C | Gold | Through Hole | Single | 13 | Green | 0.25 Ám | 10 Áin | 3.96 mm | 0.156 in | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Copper Alloy | Wire Wrap | Female | Non Specified - Single Edge | Side Mount Opening Unthreaded | 0.128 " | 3.25 mm | |
 EDAC Inc. | Polyester Thermoplastic | 1 | Cantilever | 13 | 1 | -40 C | 105 ░C | Gold | Through Hole | Single | 13 | Green | 0.25 Ám | 10 Áin | 3.96 mm | 0.156 in | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Copper Alloy | Solder | Female | Non Specified - Single Edge | Flush Mount Top Opening Unthreaded | 0.128 " | 3.25 mm | |
 EDAC Inc. | Polyester Thermoplastic | 1 | Cantilever | 13 | 1 | -40 C | 105 ░C | Gold | Through Hole | Single | 13 | Green | 0.25 Ám | 10 Áin | 3.96 mm | 0.156 in | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Copper Alloy | Solder | Female | Non Specified - Single Edge | 4-40 Threaded Insert Top Mount Opening |
