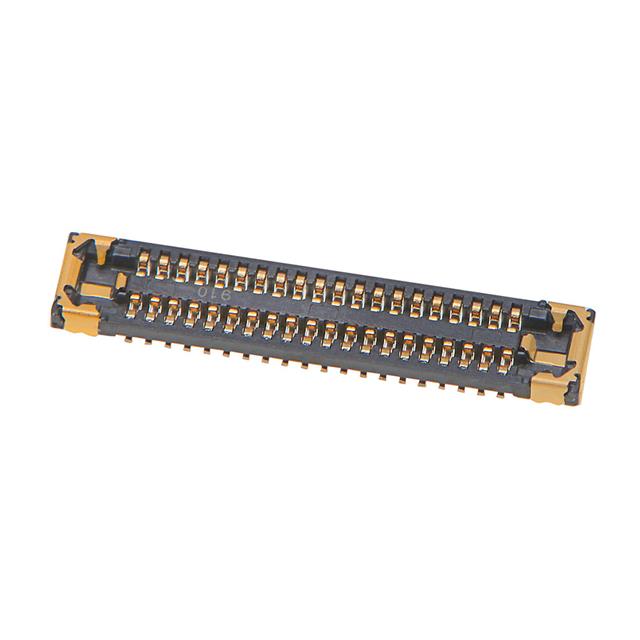

SlimStack Board-to-Board Receptacle, 0.35mm Pitch, ACB6+ Series, 0.60mm Mated Height, 1.90mm Mated Width, 54 Circuits
SlimStack Board-to-Board Receptacle, 0.35mm Pitch, ACB6+ Series, 0.60mm Mated Height, 1.90mm Mated Width, 54 Circuits
SlimStack Board-to-Board Receptacle, 0.35mm Pitch, ACB6+ Series, 0.60mm Mated Height, 1.90mm Mated Width, 54 Circuits
| Part | Height Above Board | Height Above Board | Mounting Type | Pitch [x] | Pitch [x] | Contact Finish | Features | Contact Finish Thickness | Contact Finish Thickness | Mated Stacking Heights | Number of Rows | Number of Positions |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Molex | 0.57 mm | 0.022 in | Surface Mount | 0.35 mm | 0.014 in | Gold | Solder Retention | 3.94 µin | 0.1 Ám | 0.6 mm | 2 | 50 |
Molex | 0.57 mm | 0.022 in | Surface Mount | 0.35 mm | 0.014 in | Gold | Solder Retention | 3.94 µin | 0.1 Ám | 0.6 mm | 2 | 40 |
Molex | 0.57 mm | 0.022 in | Surface Mount | 0.35 mm | 0.014 in | Gold | Solder Retention | 3.94 µin | 0.1 Ám | 0.6 mm | 2 | 54 |
