8468MN Series

Catalog

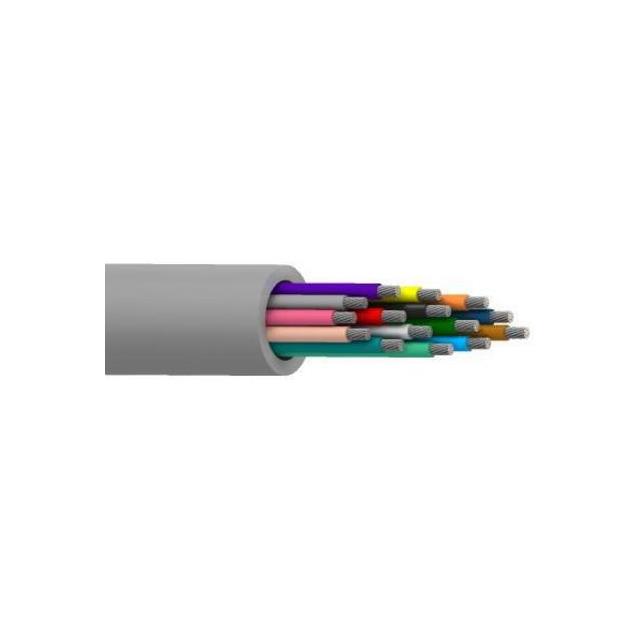

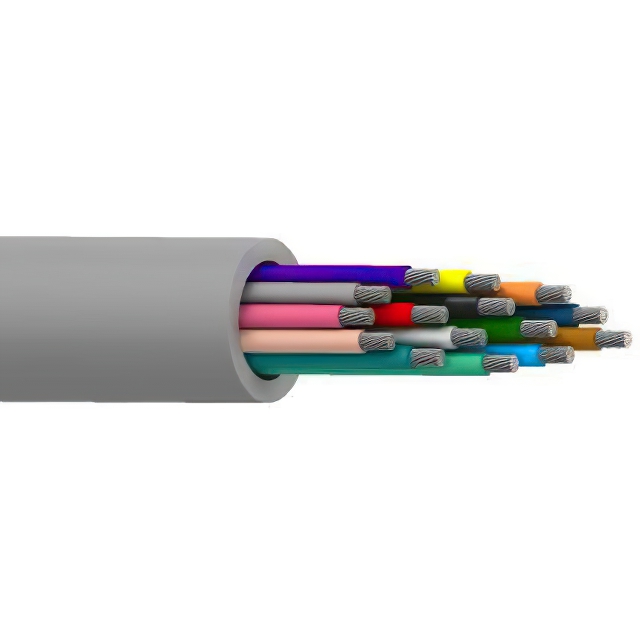

CABLE 15COND 18AWG GRAY

Part	Usage	Conductor Strand [custom]	Conductor Strand [custom]	Length [x]	Length [x]	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Cable Type	Conductor Material	Wire Gauge	Operating Temperature [Max]	Operating Temperature [Min]	Conductor Insulation	Number of Conductors	Jacket (Insulation) Material	Jacket Color	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Voltage	Length	Length	Ratings
Belden Inc. 8468MN 008100	Audio Control Instrumentation	41	34	100 ft	30.5 m	0.406 mm	0.016 in	Multi-Conductor	Copper Tinned	18 AWG	80 °C	-20 ░C	Polypropylene (PP)	15	Poly-Vinyl Chloride (PVC)	Gray	0.347 in	8.81 mm
Belden Inc. 8468MN 0041000	Audio Control Instrumentation	41	34			0.406 mm	0.016 in	Multi-Conductor	Copper Tinned	18 AWG	80 °C	-20 ░C	Polypropylene (PP)	15	Poly-Vinyl Chloride (PVC)	Yellow	0.347 in	8.81 mm	300 VDC	304.8 m	1000 ft	UL Style 2937
Belden Inc. 8468MN 0081000	Audio Control Instrumentation	41	34			0.406 mm	0.016 in	Multi-Conductor	Copper Tinned	18 AWG	80 °C	-20 ░C	Polypropylene (PP)	15	Poly-Vinyl Chloride (PVC)	Gray	0.347 in	8.81 mm	300 VDC	304.8 m	1000 ft	UL Style 2937
Belden Inc. 8468MN 006100	Audio Control Instrumentation	41	34	100 ft	30.5 m	0.406 mm	0.016 in	Multi-Conductor	Copper Tinned	18 AWG	80 °C	-20 ░C	Polypropylene (PP)	15	Poly-Vinyl Chloride (PVC)	Blue	0.347 in	8.81 mm	300 VDC			UL Style 2937
Belden Inc. 8468MN 0061000	Audio Control Instrumentation	41	34			0.406 mm	0.016 in	Multi-Conductor	Copper Tinned	18 AWG	80 °C	-20 ░C	Polypropylene (PP)	15	Poly-Vinyl Chloride (PVC)	Blue	0.347 in	8.81 mm	300 VDC	304.8 m	1000 ft	UL Style 2937
