ATS-01B Series

Manufacturer: Advanced Thermal Solutions Inc.

Catalog

Catalog

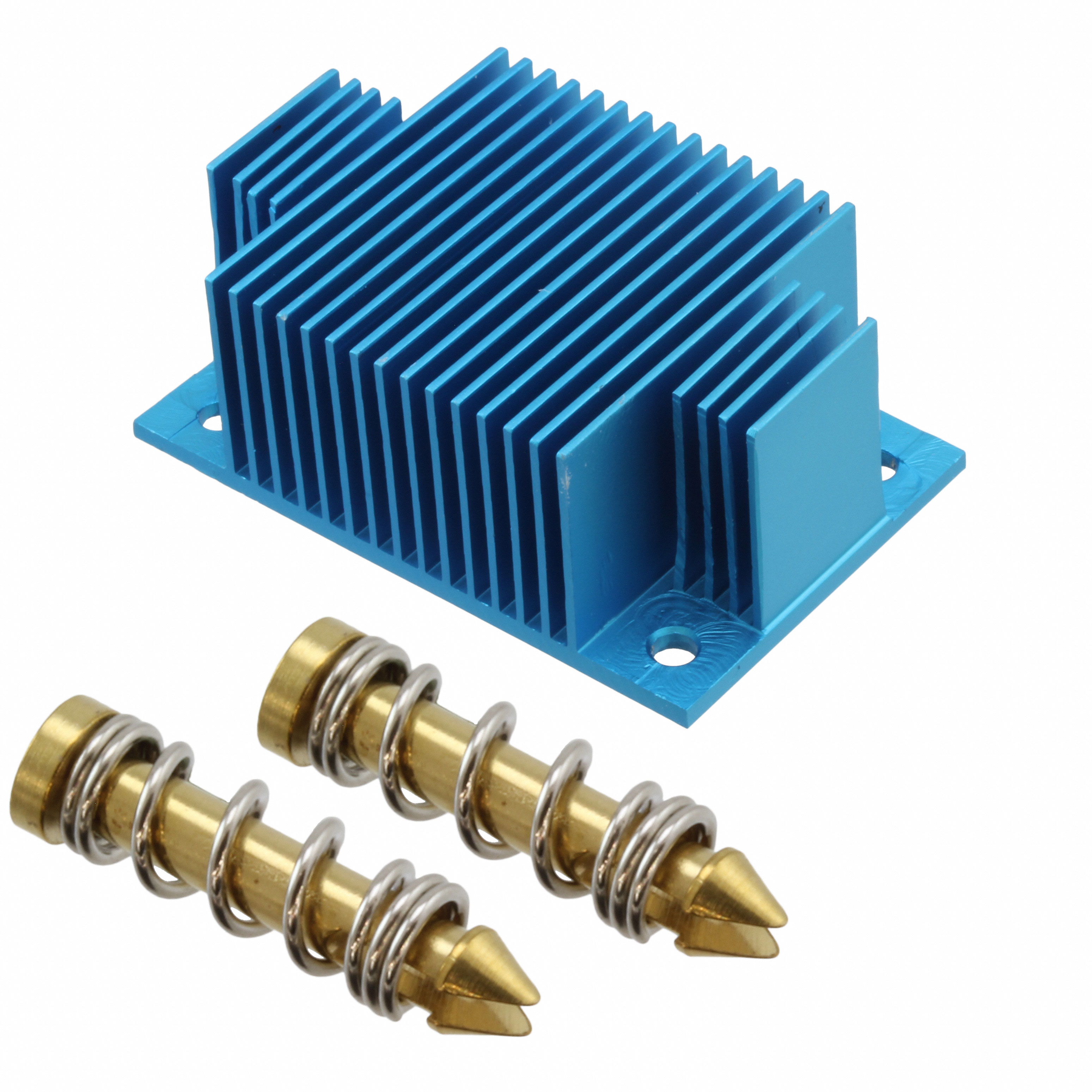

HEATSINK 36.83X57.6X22.86MM

...

Part	Fin Height [z]	Fin Height [z]	Material Finish	Length	Length	Thermal Resistance @ Forced Air Flow	Width [y]	Width [y]	Type	Shape [custom]	Shape [custom]	Attachment Method	Material	Package Cooled	Fin Height	Fin Height	Shape	Length [x]	Width [x]	Width [x]	Length [x]	Width	Width	Fin Height [custom]	Fin Height [custom]
Advanced Thermal Solutions Inc. ATS-01B-38-C1-R0	0.9 in	22.86 mm	Blue Anodized	1.45 "	36.83 mm	6.4 °C/W	57.6 mm	2.267 in	Top Mount	Rectangular	Fins	Push Pin	Aluminum	ASIC BGA CPU LGA
Advanced Thermal Solutions Inc. ATS-01B-58-C3-R0			Blue Anodized		35 mm	10.25 °C/W	35 mm	1.378 "	Top Mount			Push Pin	Aluminum	ASIC BGA CPU LGA	25 mm	0.984 in	Fins Square	1.378 "
Advanced Thermal Solutions Inc. ATS-01B-15-C2-R0			Blue Anodized			7.44 °C/W			Top Mount			Push Pin	Aluminum	ASIC BGA CPU LGA	25 mm	0.984 in	Fins Square	1.969 in	50 mm	1.969 in	50 mm
Advanced Thermal Solutions Inc. ATS-01B-83-C3-R0	1.181 in	30 mm	Blue Anodized	1.181 in	0.03 m	8.76 °C/W			Top Mount			Push Pin	Aluminum	ASIC BGA CPU LGA			Fins Square		30 mm	1.181 in
Advanced Thermal Solutions Inc. ATS-01B-59-C1-R0	1.181 in	30 mm	Blue Anodized		35 mm	7.91 °C/W	35 mm	1.378 "	Top Mount			Push Pin	Aluminum	ASIC BGA CPU LGA			Fins Square	1.378 "
Advanced Thermal Solutions Inc. ATS-01B-67-C2-R0			Blue Anodized			20.3 °C/W			Top Mount			Push Pin	Aluminum	ASIC BGA CPU LGA			Fins Square	1.772 in			45 mm	1.772 in	45 mm	0.394 "	10 mm
Advanced Thermal Solutions Inc. ATS-01B-19-C1-R0	0.79 in	20 mm	Blue Anodized	2.126 in	54 mm	9.75 °C/W			Top Mount			Push Pin	Aluminum	ASIC BGA CPU LGA			Fins Square		54 mm	2.126 in
Advanced Thermal Solutions Inc. ATS-01B-71-C3-R0	1.181 in	30 mm	Blue Anodized			6.77 °C/W			Top Mount			Push Pin	Aluminum	ASIC BGA CPU LGA			Fins Square	1.772 in			45 mm	1.772 in	45 mm
Advanced Thermal Solutions Inc. ATS-01B-74-C2-R0	0.59 in	15 mm	Blue Anodized		25 mm	20.35 °C/W			Top Mount			Push Pin	Aluminum	ASIC BGA CPU LGA			Fins Square	0.984 in	25 mm	0.984 "
Advanced Thermal Solutions Inc. ATS-01B-209-C2-R0			Blue Anodized			6.27 °C/W			Top Mount			Push Pin	Aluminum	ASIC BGA CPU LGA			Fins Square	2.756 in	70 mm	2.756 "	70 mm			0.394 "	10 mm
