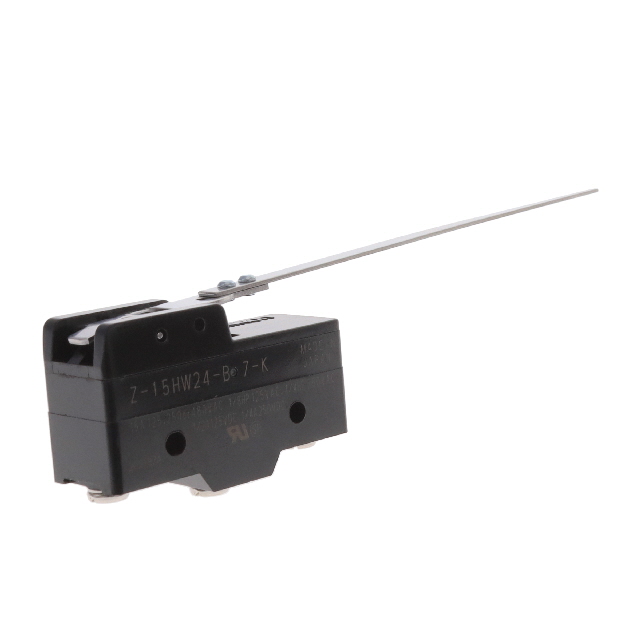

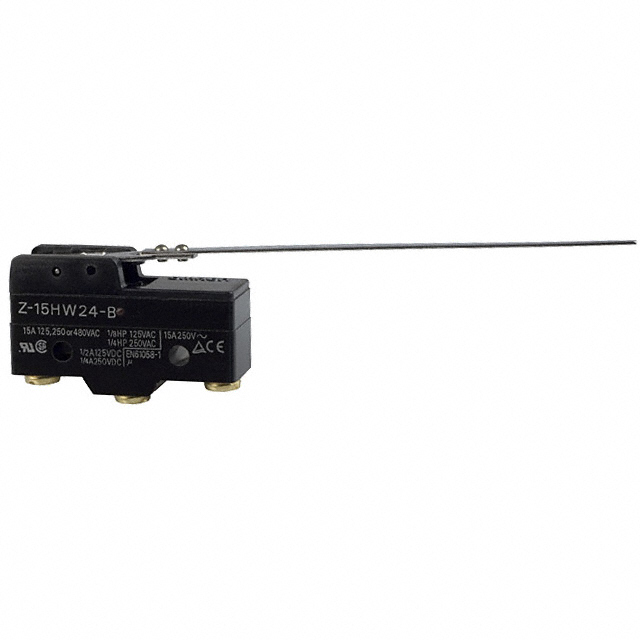

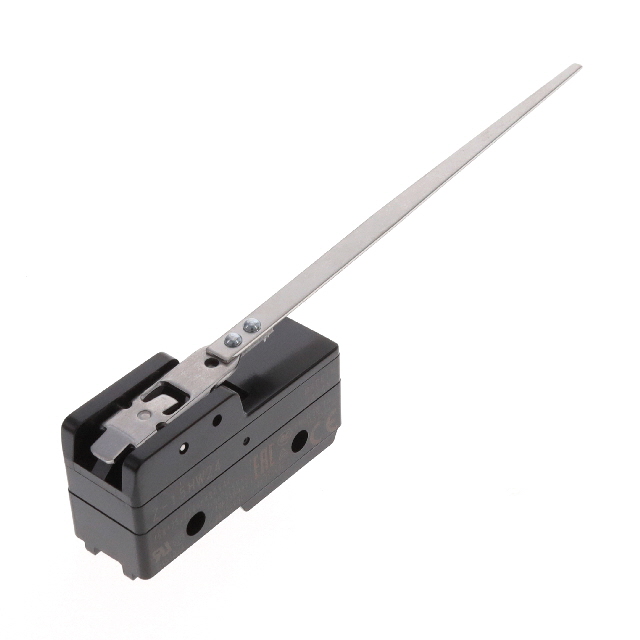

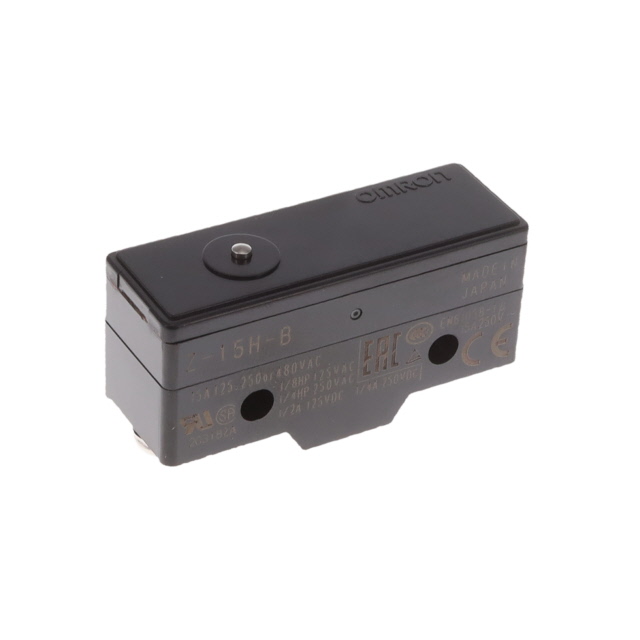

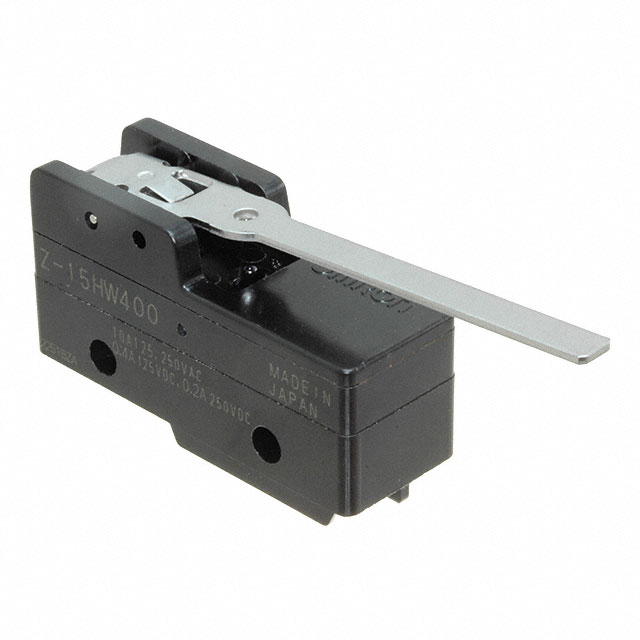

Z Series

Manufacturer: Omron Automation and Safety

Catalog

BASIC / SNAP ACTION SWITCHES BASIC SWITCH

Part	Operating Position	Operating Position	Differential Travel	Differential Travel	Ingress Protection	Circuit	Mechanical Life	Mounting Type	Operating Force [Max]	Operating Force [Min]	Voltage Rating - DC	Current Rating (Amps)	Voltage Rating - AC	Pretravel	Pretravel	Operating Temperature [Min]	Operating Temperature [Max]	Electrical Life	Overtravel [custom]	Overtravel [custom]	Termination Style	Switch Function	Actuator Type	Release Force	Features	Operating Force	Differential Travel
Omron Automation and Safety Z-15HD-B	21.5 mm	0.846 in	0.001 in	0.025 mm	IP00	SPDT	20000000 Cycles	Chassis Mount	285 gf	200 gf	30 V	2 A 15 A	125 V	0.3 mm	0.012 in	-25 °C	80 °C	500000 Cycles	0.062 "	1.6 mm	Screw Terminal	On-Mom	Round (Pin Plunger)	114 gf
Omron Automation and Safety Z-15GW35-B					IP40	SPDT	20000000 Cycles	Chassis Mount			30 V	6 A 15 A	125 V			-25 °C	80 °C	500000 Cycles			Screw Terminal	On-Mom
Omron Automation and Safety Z-15HNJS55-MR 1M					IP62	SPDT	1000000 Cycles	Chassis Mount			30 V	2 A 15 A	125 V	25 mm	0.984 in	-15 °C	80 °C	100000 Cycles			Cable Leads	On-Mom	Spring Wire		Cable Length 1m	15 gf
Omron Automation and Safety Z-15GL-B	17.4 mm	0.685 in		0.05 in	IP00	SPDT	10000000 Cycles	Chassis Mount			30 V	6 A 15 A	125 V			-25 °C	80 °C	500000 Cycles	0.062 "	1.6 mm	Screw Terminal	On-Mom	Leaf Lever	14 gf		141 gf	1.3 mm
Omron Automation and Safety Z-15GS55					IP62	SPDT		Chassis Mount			30 V	6 A 15 A	125 V			-15 °C	80 °C				Solder Lug	On-Mom	Round (Pin Plunger)

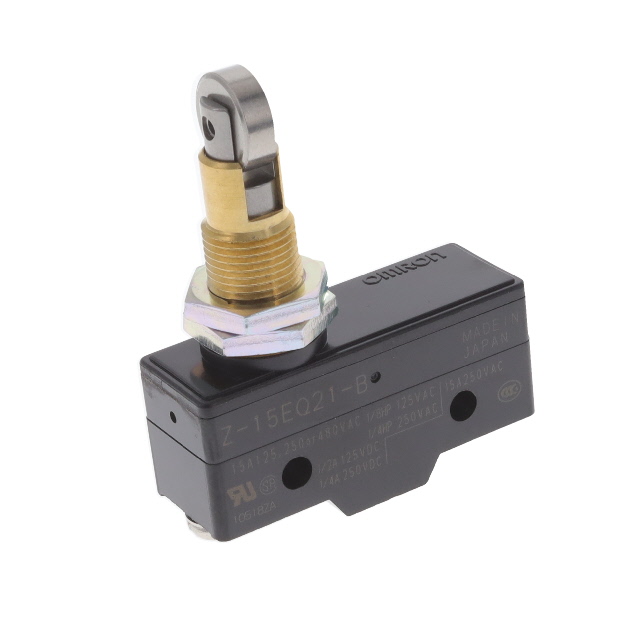

Omron Automation and Safety Z-15EQ21-B	33.4 mm	1.313 in		0.005 in	IP00	SPDT	300000 Cycles	Panel Mount	800 gf	625 gf	30 V	15 A	125 V	0.8 mm	0.03 "	-25 °C	80 °C	100000 Cycles	0.141 "	3.6 mm	Screw Terminal	On-Mom	Cross Roller Plunger	114 gf			0.13 mm
Omron Automation and Safety Z-10FW1Y55-BC					IP62	SPDT	500000 Cycles	Chassis Mount			30 V	10 A	125 V			-15 °C	80 °C	100000 Cycles			Screw Terminal	On-Mom
Omron Automation and Safety Z-15HD	21.5 mm	0.846 in	0.001 in	0.025 mm	IP00	SPDT	20000000 Cycles	Chassis Mount	285 gf	200 gf	30 V	2 A 15 A	125 V	0.3 mm	0.012 in	-25 °C	80 °C	500000 Cycles	0.062 "	1.6 mm	Solder Lug	On-Mom	Round (Pin Plunger)	114 gf
Omron Automation and Safety Z-01H-B	15.9 mm	0.625 in	0.002 in	0.05 mm	IP00	SPDT	20000000 Cycles	Chassis Mount			30 V	100 mA	125 V	0.5 mm	0.02 in	-25 °C	80 °C	500000 Cycles	0.005 "	0.13 mm	Screw Terminal	On-Mom	Round (Pin Plunger)	80 gf		0.25 kgf
Omron Automation and Safety Z-15G-C					IP00	SPDT	20000000 Cycles	Chassis Mount			30 V	6 A 15 A	125 V			-25 °C	80 °C	500000 Cycles			Solder Lug	On-Mom	Round (Pin Plunger)
