1337427 Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K

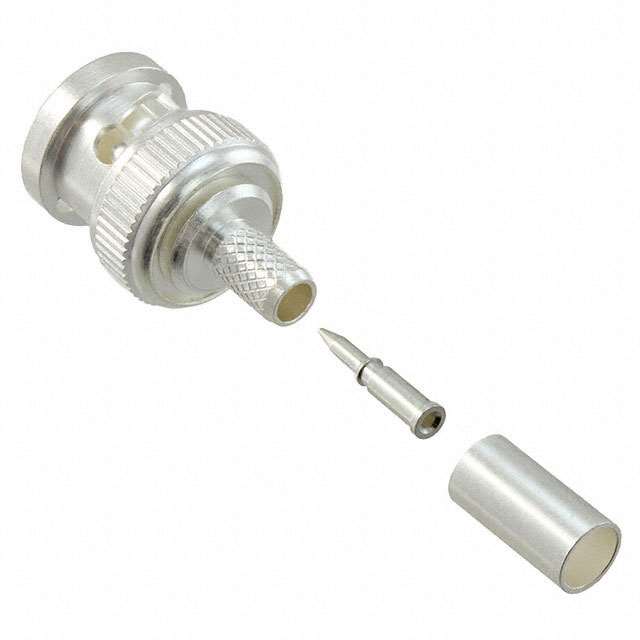

CONN BNC PLUG STR 50 OHM SOLDER
| Part | Body Material | Body Finish | Insertion Loss | Operating Temperature [Min] | Operating Temperature [Max] | Dielectric Material | Voltage Rating | Center Contact Plating | Includes | Mating Cycles | Number of Ports | Housing Color | Cable Group | Frequency - Max [Max] | Center Contact Material | Fastening Type | Connector Type | Mounting Type | Impedance | Contact Termination | Connector Style | Shield Termination |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | Brass | Silver | 0.2 dB | -65 ░C | 165 °C | Polytetrafluoroethylene (PTFE) | 500 V | Silver | 1 Connector 1 Contact 1 Ferrule | 500 | 1 | Silver | 141A Belden 9907 RG-58C | 4 GHz | Brass | Bayonet Lock | Plug Male Pin | Free Hanging (In-Line) | 50 Ohms | Solder | BNC | Crimp |
