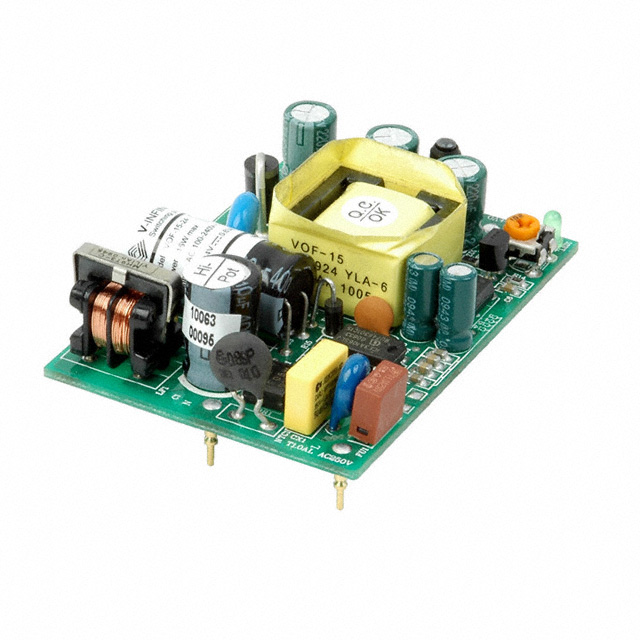

VOF-15 Series

Manufacturer: CUI Inc.

Catalog

AC/DC CONVERTER 24V 15W

Part	Type	Features	Package / Case	Mounting Type	Power (Watts)	Current - Output (Max) [Max]	Load Regulation	Operating Temperature [Max]	Approval Agency	Standard Number	Voltage - Output 1	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Line Regulation	Applications	Number of Outputs	Efficiency	Load Regulation
CUI Inc. VOF-15-24	Open Frame	Universal Input	4-DIP Module	Through Hole	15 W	630 mA	±1%	60 °C	CB Scheme EN IEC SIQ TUV UL	55024 60950-1 61000-3-2 61000-3-3	24 V	23.1 mm	1.91 "	70 mm	2.76 "	0.91 in	48.6 mm	0.5 %	ITE (Commercial)	1
CUI Inc. VOF-15-5	Open Frame	Universal Input	4-DIP Module	Through Hole	15 W	3 A	±1%	60 °C	CB Scheme EN IEC SIQ TUV UL	55024 60950-1 61000-3-2 61000-3-3	5 V	23.1 mm	1.91 "	70 mm	2.76 "	0.91 in	48.6 mm	0.5 %	ITE (Commercial)	1	75 %
CUI Inc. VOF-15-15	Open Frame	Universal Input	4-DIP Module	Through Hole	15 W	1 A	±1%	60 °C	CB Scheme EN IEC SIQ TUV UL	55024 60950-1 61000-3-2 61000-3-3	15 V	23.1 mm	1.91 "	70 mm	2.76 "	0.91 in	48.6 mm	0.5 %	ITE (Commercial)	1	80 %
CUI Inc. VOF-15-48	Open Frame	Universal Input	4-DIP Module	Through Hole	15 W	310 mA	±1%	60 °C	CB Scheme EN IEC SIQ TUV UL	55024 60950-1 61000-3-2 61000-3-3	48 V	23.1 mm	1.91 "	70 mm	2.76 "	0.91 in	48.6 mm	0.5 %	ITE (Commercial)	1	83 %
CUI Inc. VOF-15-12	Open Frame	Universal Input	4-DIP Module	Through Hole	15 W	1.25 A	±1%	60 °C	CB Scheme EN IEC SIQ TUV UL	55024 60950-1 61000-3-2 61000-3-3	12 V	23.1 mm	1.91 "	70 mm	2.76 "	0.91 in	48.6 mm	0.5 %	ITE (Commercial)	1	80 %
CUI Inc. VOF-15-3.3	Open Frame	Universal Input	4-DIP Module	Through Hole	15 W	3 A		60 °C	CB Scheme EN IEC SIQ TUV UL	55024 60950-1 61000-3-2 61000-3-3	3.3 V	23.1 mm	1.91 "	70 mm	2.76 "	0.91 in	48.6 mm	0.6 %	ITE (Commercial)	1	70 %	1.2 %
