21670 Series
Manufacturer: Pflitsch
Beta
⌘K

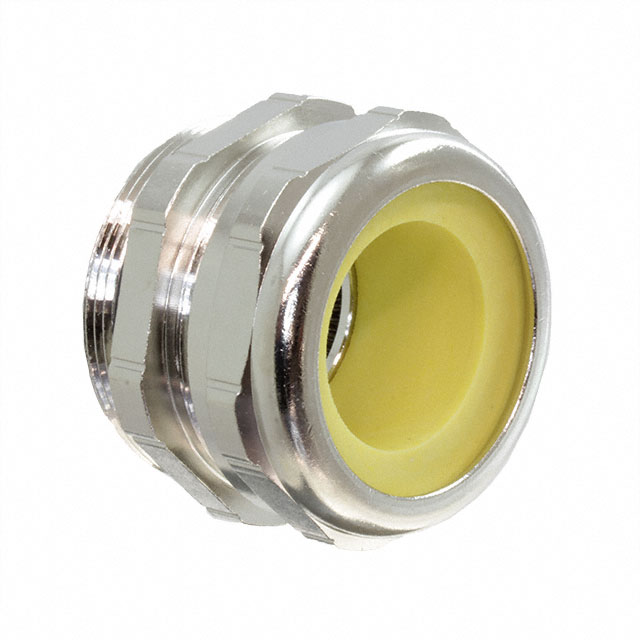

CABLE GLAND 23.88-27.94MM PG36
| Part | Panel Hole Size | Panel Hole Size | Includes | Outside Cable Diameter (Min) [Min] [diameter] | Outside Cable Diameter (Min) | Thread Size | Outside Cable Diameter (Max) [Max] [diameter] | Outside Cable Diameter (Max) [Max] [diameter] | Material | Color | Operating Temperature [Min] | Operating Temperature [Max] | Thread Length | Thread Length | Type | Ingress Protection |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Pflitsch | 1.85 in | 47 mm | Sealing Ring | 0.94 in | 23.88 mm | PG36 | 1.1 in | 27.94 mm | Brass Nickel Plated | Silver | -40 C | 300 °C | 8.89 mm | 0.35 in | Cable Gland | IP68 - Dust Tight Waterproof NEMA 4X |
