315-048 Series

Manufacturer: EDAC Inc.

Catalog

CARD EDGE CONNECTOR, DUAL SIDE, 1.57 MM, 48 CONTACTS, THROUGH HOLE MOUNT, STRAIGHT

Part	Material - Insulation	Termination Rows [custom]	Gender	Operating Temperature [Min]	Operating Temperature [Max]	Contact Material	Read Out	Contact Type	Mounting Type	Termination	Card Type	Card Thickness [Max]	Card Thickness [Min]	Color	Number of Positions/Bay/Row	Number of Rows [custom]	Flange Feature	Contact Finish	Number of Positions	Pitch	Pitch	Contact Finish Thickness	Contact Finish Thickness	Features	Flange Feature [diameter]	Flange Feature [diameter]

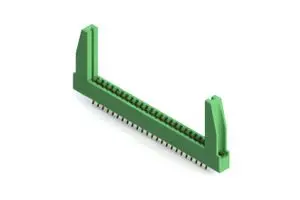

EDAC Inc. 315-048-556-278	Polyester Thermoplastic	2	Female	-40 C	105 ░C	Copper Alloy	Dual	Semi Bellows	Board Edge Straddle Mount	Solder	Non Specified - Dual Edge	0.07 in 1.78 mm	0.054 in 1.37 mm	Green	24	2	4-40 Flush Mount Threaded Insert Top Opening	Gold	48	3.96 mm	0.156 in	0.25 Ám	10 Áin	Card Extender Card Guides
EDAC Inc. 315-048-520-202	Polyester Thermoplastic	2	Female	-40 C	105 ░C	Copper Alloy	Dual	Semi Bellows	Panel Mount Through Hole	Solder	Non Specified - Dual Edge	0.07 in 1.78 mm	0.054 in 1.37 mm	Green	24	2	Flush Mount Top Opening Unthreaded	Gold	48	3.96 mm	0.156 in	0.25 Ám	10 Áin		3.25 mm	0.128 "
EDAC Inc. 315-048-555-268	Polyester Thermoplastic	2	Female	-40 C	105 ░C	Copper Alloy	Dual	Semi Bellows	Board Edge Straddle Mount	Solder	Non Specified - Dual Edge	0.07 in 1.78 mm	0.054 in 1.37 mm	Green	24	2	4-40 Flush Mount Threaded Insert Top Opening	Gold	48	3.96 mm	0.156 in	0.25 Ám	10 Áin	Card Extender Card Guides
EDAC Inc. 315-048-500-201	Polyester Thermoplastic	2	Female	-40 C	105 ░C	Copper Alloy	Dual	Semi Bellows	Free Hanging (In-Line)	Solder Eyelet(s)	Non Specified - Dual Edge	0.07 in 1.78 mm	0.054 in 1.37 mm	Green	24	2		Gold	48	3.96 mm	0.156 in	0.25 Ám	10 Áin
EDAC Inc. 315-048-500-207	Polyester Thermoplastic	2	Female	-40 C	105 ░C	Copper Alloy	Dual	Semi Bellows	Panel Mount	Solder Eyelet(s)	Non Specified - Dual Edge	0.07 in 1.78 mm	0.054 in 1.37 mm	Green	24	2	Flush Mount M3 Threaded Insert Top Opening	Gold	48	3.96 mm	0.156 in	0.25 Ám	10 Áin
EDAC Inc. 315-048-520-201	Polyester Thermoplastic	2	Female	-40 C	105 ░C	Copper Alloy	Dual	Semi Bellows	Through Hole	Solder	Non Specified - Dual Edge	0.07 in 1.78 mm	0.054 in 1.37 mm	Green	24	2		Gold	48	3.96 mm	0.156 in	0.25 Ám	10 Áin
EDAC Inc. 315-048-555-203	Polyester Thermoplastic	2	Female	-40 C	105 ░C	Copper Alloy	Dual	Semi Bellows	Board Edge Straddle Mount	Solder	Non Specified - Dual Edge	0.07 in 1.78 mm	0.054 in 1.37 mm	Green	24	2	Floating Bobbin Flush Mount	Gold	48	3.96 mm	0.156 in	0.25 Ám	10 Áin	Card Extender	2.95 mm	0.116 "
EDAC Inc. 315-048-555-207	Polyester Thermoplastic	2	Female	-40 C	105 ░C	Copper Alloy	Dual	Semi Bellows	Board Edge Straddle Mount	Solder	Non Specified - Dual Edge	0.07 in 1.78 mm	0.054 in 1.37 mm	Green	24	2	Flush Mount M3 Threaded Insert Top Opening	Gold	48	3.96 mm	0.156 in	0.25 Ám	10 Áin	Card Extender
EDAC Inc. 315-048-521-278	Polyester Thermoplastic	2	Female	-40 C	105 ░C	Copper Alloy	Dual	Semi Bellows	Panel Mount Through Hole	Solder	Non Specified - Dual Edge	0.07 in 1.78 mm	0.054 in 1.37 mm	Green	24	2	4-40 Flush Mount Threaded Insert Top Opening	Gold	48	3.96 mm	0.156 in	0.25 Ám	10 Áin
EDAC Inc. 315-048-520-204	Polyester Thermoplastic	2	Female	-40 C	105 ░C	Copper Alloy	Dual	Semi Bellows	Panel Mount Through Hole	Solder	Non Specified - Dual Edge	0.07 in 1.78 mm	0.054 in 1.37 mm	Green	24	2	Flush Mount Top Opening Unthreaded	Gold	48	3.96 mm	0.156 in	0.25 Ám	10 Áin		3.96 mm	0.156 "
