31897 Series
Manufacturer: TE Connectivity Raychem Cable Protection
Beta
⌘K

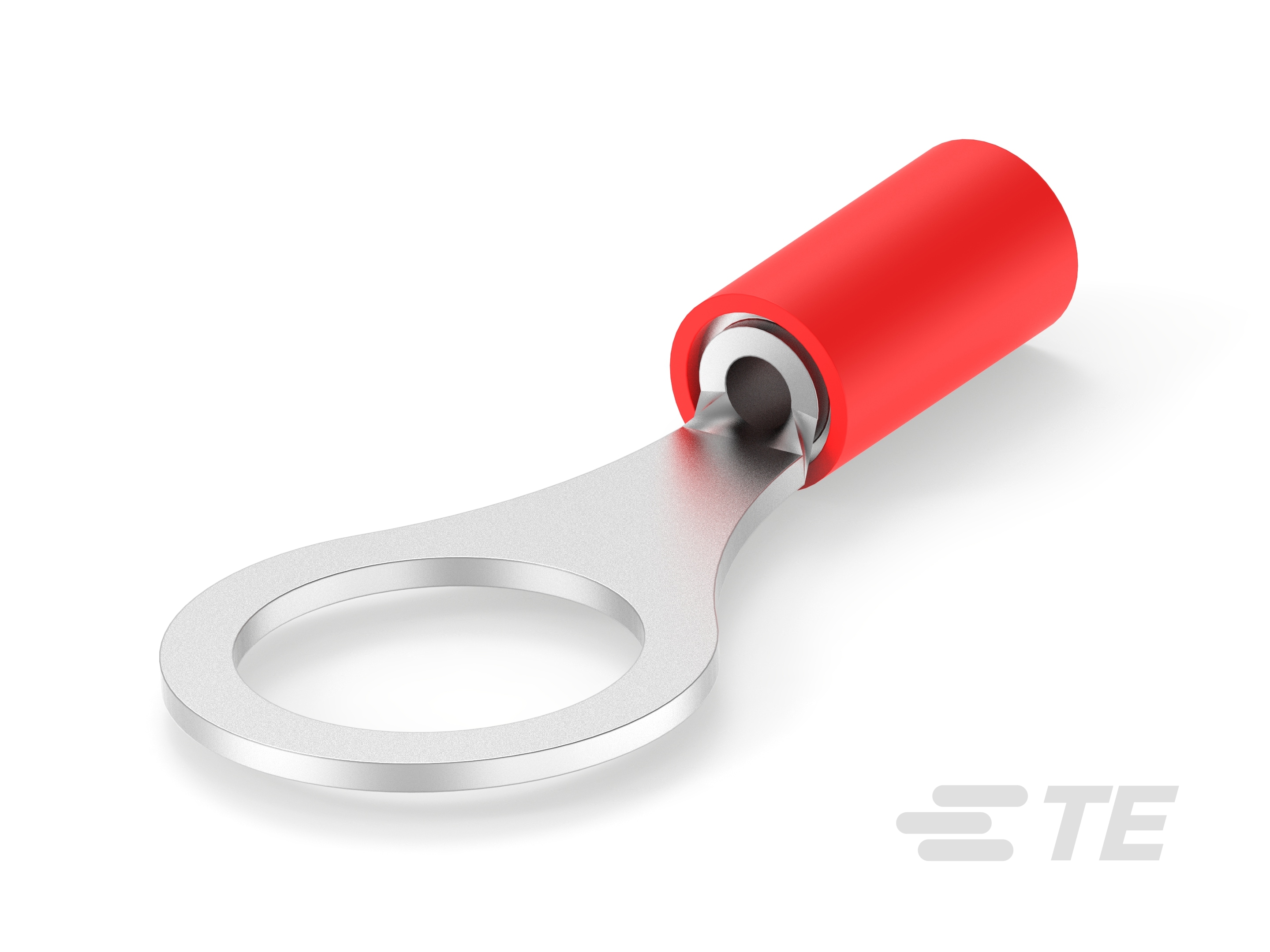

PIDG 22-16 22-18MIL R 3/8;TAPE
| Part | Terminal Type | Wire Gauge [Max] | Wire Gauge [Min] | Material - Insulation | Length - Overall [x] | Length - Overall [x] | Features | Mounting Type | Insulation Diameter [Max] [diameter] | Insulation Diameter [Min] [diameter] | Insulation Diameter [Max] [diameter] | Insulation Diameter [Min] [diameter] | Contact Material | Contact Finish | Stud/Tab Size | Termination | Color | Width - Outer Edges [custom] | Width - Outer Edges [custom] | Insulation | Thickness | Thickness |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity Raychem Cable Protection | Circular | 22 AWG | 16 AWG | Nylon Polyamide (PA) | 1.218 in | 30.94 mm | Serrated Termination | Free Hanging (In-Line) | 0.14 in | 0.105 in | 3.56 mm | 2.67 mm | Copper | Tin | 3/8 Stud | Crimp | Red | 13.49 mm | 0.531 " | Insulated | 0.031 in | 0.79 mm |
