796642 Series

Manufacturer: TE Connectivity AMP Connectors

Catalog

CONN SHROUDED HEADER (4 SIDES) M 10 POS 5MM SOLDER ST TOP ENTRY THRU-HOLE BOX

Part	Material Flammability Rating	Contact Tail Length	Contact Tail Length	Contact Material	Insulation Height	Insulation Height	Termination Style	Type	Color	Number of Positions	Operating Temperature [Min]	Operating Temperature [Max]	Contact Mating Finish	Positions Per Level	Header Orientation	Mounting Type	Pitch	Pitch	Number of Levels	Voltage - UL	Positions Per Level [custom]
TE Connectivity AMP Connectors 1-796642-0	UL94 V-0	0.138 in	3.5 mm	Copper Alloy	0.472 "	12 mm	Solder	Header Male Pins Shrouded (4 Side)	Green	10	-40 C	110 °C	Tin	10	Vertical	Through Hole	0.197 in	5 mm	1	300 V
TE Connectivity AMP Connectors 796642-3							Solder	Header Male Pins Shrouded (4 Side)	Green		-40 C	110 °C	Tin	3	Vertical	Through Hole	0.197 in	5 mm	1	300 V
TE Connectivity AMP Connectors 796642-7	UL94 V-0	0.138 in	3.5 mm	Copper Alloy	0.472 "	12 mm	Solder	Header Male Pins Shrouded (4 Side)	Green	7	-40 C	110 °C	Tin		Vertical	Through Hole	0.197 in	5 mm	1	300 V	7
TE Connectivity AMP Connectors 2-796642-2	UL94 V-0	0.138 in	3.5 mm	Copper Alloy	0.472 "	12 mm	Solder	Header Male Pins Shrouded (4 Side)	Green	22	-40 C	110 °C	Tin	22	Vertical	Through Hole	0.197 in	5 mm	1	300 V

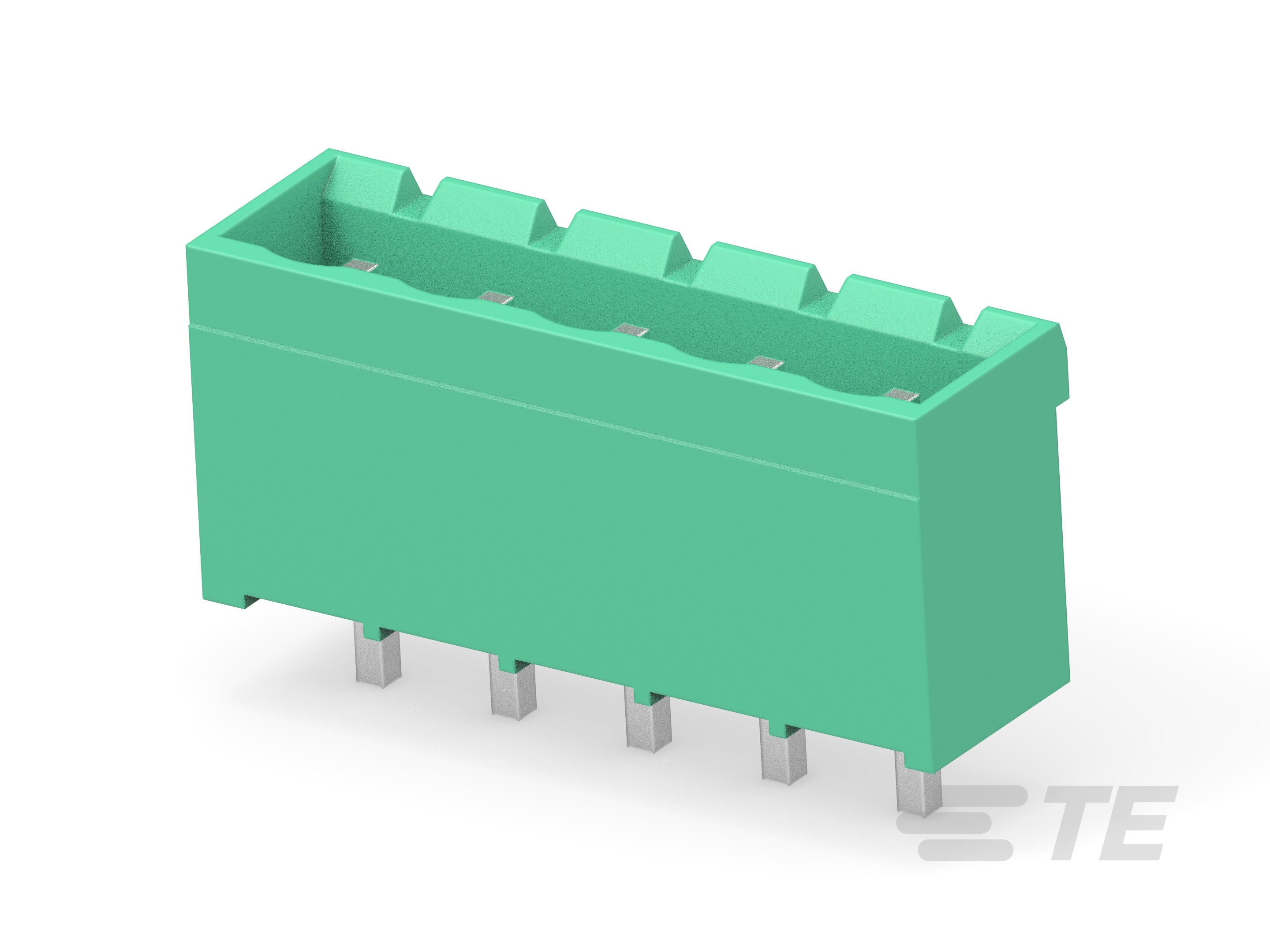

TE Connectivity AMP Connectors 796642-5	UL94 V-0	0.138 in	3.5 mm	Copper Alloy	0.472 "	12 mm	Solder	Header Male Pins Shrouded (4 Side)	Green	5	-40 C	110 °C	Tin	5	Vertical	Through Hole	0.197 in	5 mm	1	300 V

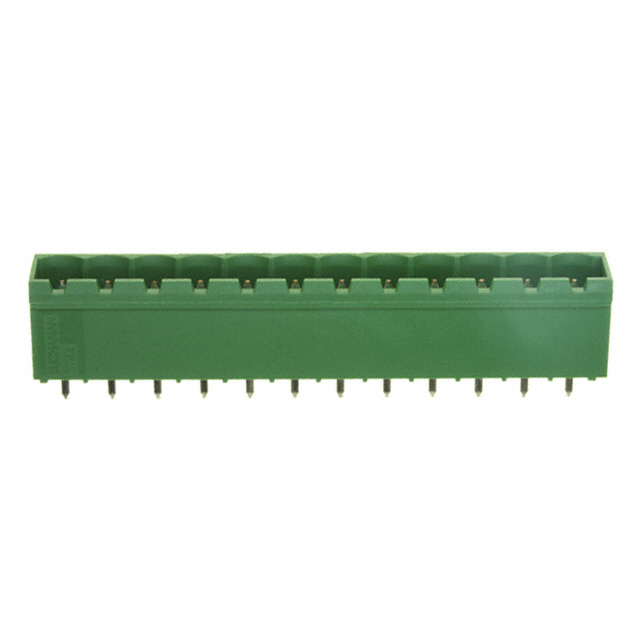

TE Connectivity AMP Connectors 1-796642-2	UL94 V-0	0.138 in	3.5 mm	Copper Alloy	0.472 "	12 mm	Solder	Header Male Pins Shrouded (4 Side)	Green	12	-40 C	110 °C	Tin	12	Vertical	Through Hole	0.197 in	5 mm	1	300 V

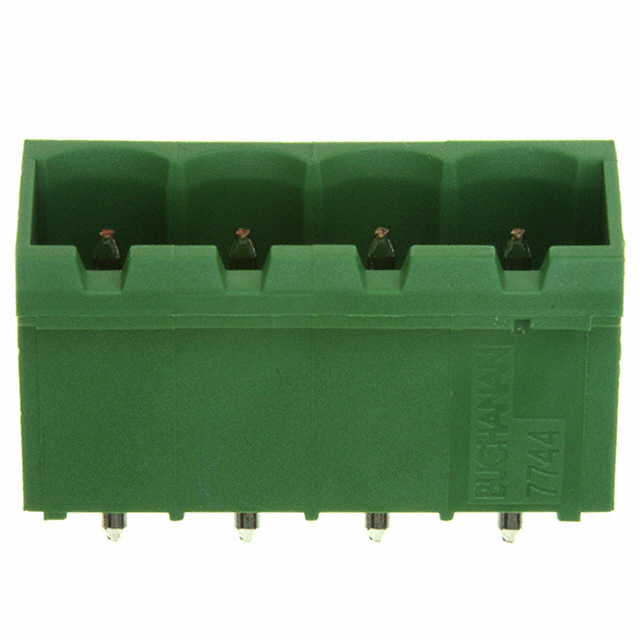

TE Connectivity AMP Connectors 796642-4	UL94 V-0	0.138 in	3.5 mm	Copper Alloy	0.472 "	12 mm	Solder	Header Male Pins Shrouded (4 Side)	Green	4	-40 C	110 °C	Tin	4	Vertical	Through Hole	0.197 in	5 mm	1	300 V

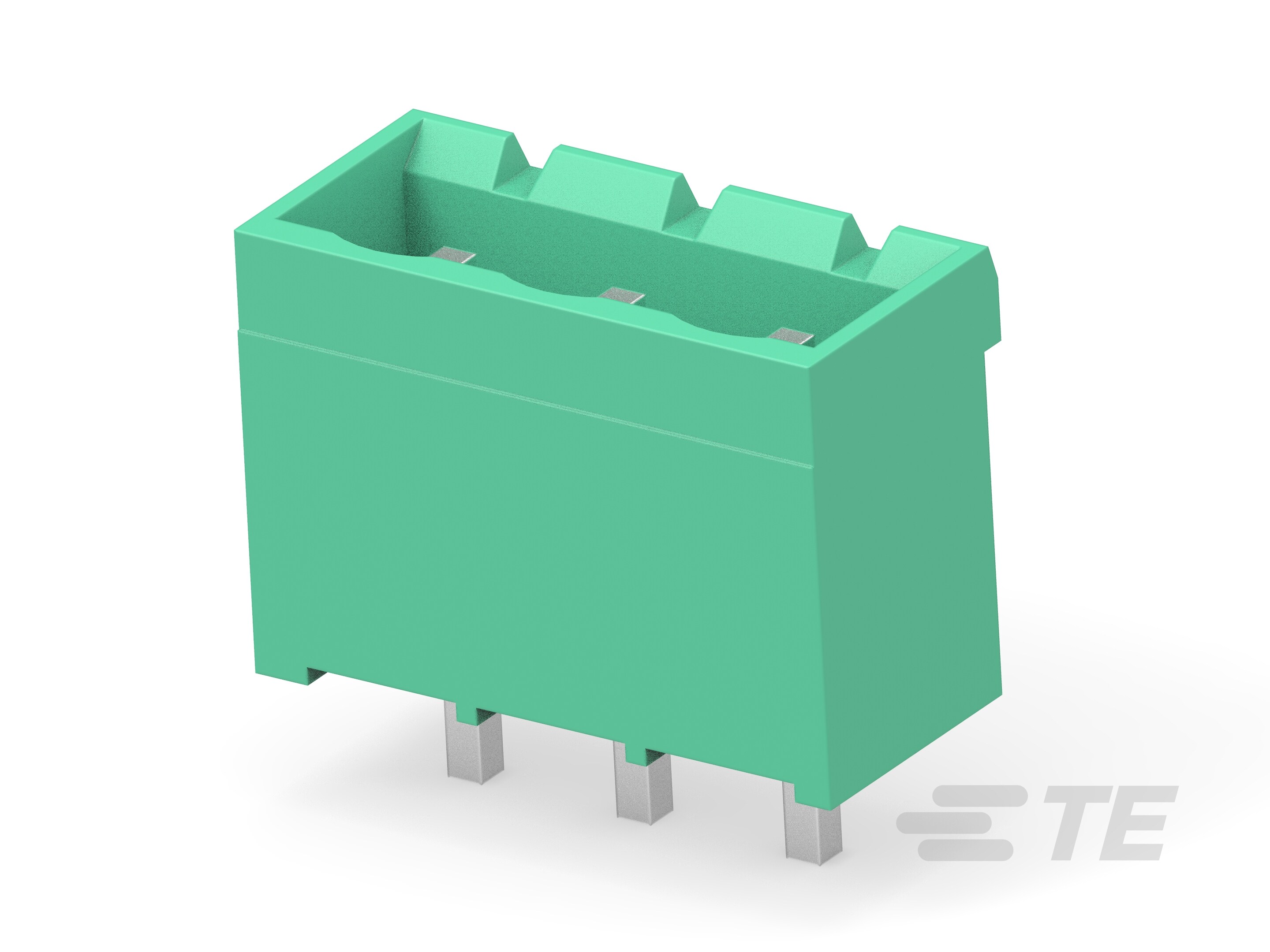

TE Connectivity AMP Connectors 796642-3	UL94 V-0	0.138 in	3.5 mm	Copper Alloy	0.472 "	12 mm	Solder	Header Male Pins Shrouded (4 Side)	Green		-40 C	110 °C	Tin	3	Vertical	Through Hole	0.197 in	5 mm	1	300 V

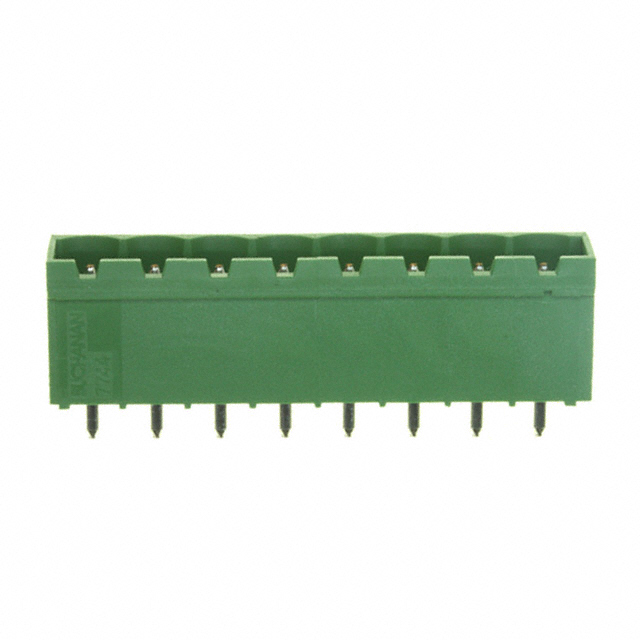

TE Connectivity AMP Connectors 796642-8	UL94 V-0	0.138 in	3.5 mm	Copper Alloy	0.472 "	12 mm	Solder	Header Male Pins Shrouded (4 Side)	Green	8	-40 C	110 °C	Tin	8	Vertical	Through Hole	0.197 in	5 mm	1	300 V
TE Connectivity AMP Connectors 1-796642-7	UL94 V-0	0.138 in	3.5 mm	Copper Alloy	0.472 "	12 mm	Solder	Header Male Pins Shrouded (4 Side)	Green		-40 C	110 °C	Tin	17	Vertical	Through Hole	0.197 in	5 mm	1	300 V
