842-009 Series
Manufacturer: EDAC Inc.
Beta
⌘K

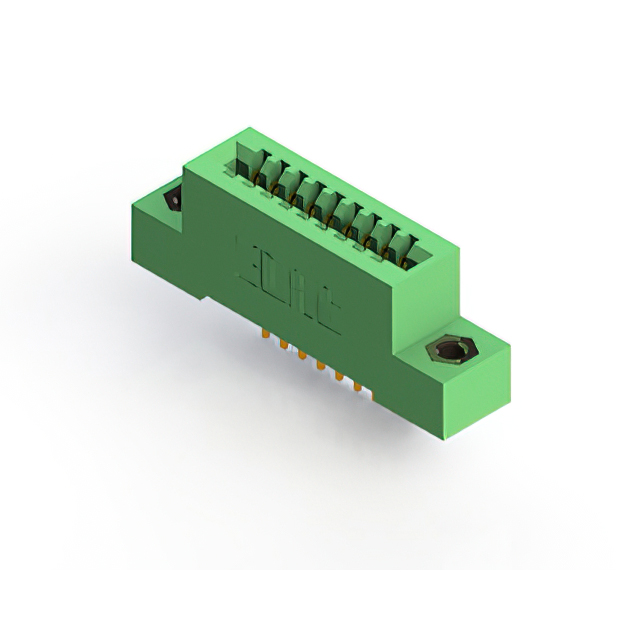

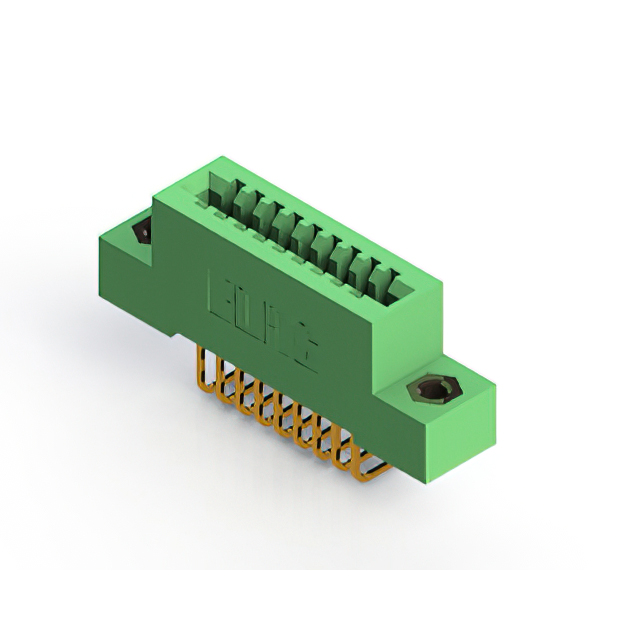

CONN EDGE SINGLE FML 9POS 0.100
| Part | Termination Rows | Material - Insulation | Color | Number of Rows | Operating Temperature [Max] | Operating Temperature [Min] | Number of Positions | Mounting Type | Gender | Card Type | Contact Material | Flange Feature | Flange Feature [diameter] | Flange Feature [diameter] | Pitch | Pitch | Number of Positions/Bay/Row | Contact Finish | Contact Finish Thickness | Contact Finish Thickness | Card Thickness [Max] | Card Thickness [Min] | Termination | Read Out | Contact Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 EDAC Inc. | 1 | Diallyl Phthalate (DAP) | Green | 1 | 125 °C | -40 C | 9 | Right Angle Through Hole | Female | Non Specified - Single Edge | Copper Alloy | Flush Mount Side Opening Unthreaded | 0.128 " | 3.25 mm | 0.1 " | 2.54 mm | 9 | Gold | 0.25 Ám | 10 Áin | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Solder | Single | Cantilever |
 EDAC Inc. | 1 | Diallyl Phthalate (DAP) | Green | 1 | 125 °C | -40 C | 9 | Through Hole | Female | Non Specified - Single Edge | Copper Alloy | 0.1 " | 2.54 mm | 9 | Gold | 0.25 Ám | 10 Áin | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Wire Wrap | Single | Cantilever | |||
 EDAC Inc. | 1 | Diallyl Phthalate (DAP) | Green | 1 | 125 °C | -40 C | 9 | Through Hole | Female | Non Specified - Single Edge | Copper Alloy | Flush Mount Side Opening Unthreaded | 0.128 " | 3.25 mm | 0.1 " | 2.54 mm | 9 | Gold | 0.25 Ám | 10 Áin | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Solder | Single | Cantilever |
 EDAC Inc. | 1 | Diallyl Phthalate (DAP) | Green | 1 | 125 °C | -40 C | 9 | Right Angle Through Hole | Female | Non Specified - Single Edge | Copper Alloy | Flush Mount M3 Threaded Insert Top Opening | 0.1 " | 2.54 mm | 9 | Gold | 0.25 Ám | 10 Áin | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Solder | Single | Cantilever | ||
 EDAC Inc. | 1 | Diallyl Phthalate (DAP) | Green | 1 | 125 °C | -40 C | 9 | Through Hole | Female | Non Specified - Single Edge | Copper Alloy | Floating Bobbin Flush Mount | 0.116 " | 2.95 mm | 0.1 " | 2.54 mm | 9 | Gold | 0.25 Ám | 10 Áin | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Solder | Single | Cantilever |
 EDAC Inc. | 1 | Diallyl Phthalate (DAP) | Green | 1 | 125 °C | -40 C | 9 | Through Hole | Female | Non Specified - Single Edge | Copper Alloy | Flush Mount M3 Threaded Insert Top Opening | 0.1 " | 2.54 mm | 9 | Gold | 0.25 Ám | 10 Áin | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Wire Wrap | Single | Cantilever | ||
 EDAC Inc. | 1 | Diallyl Phthalate (DAP) | Green | 1 | 125 °C | -40 C | 9 | Through Hole | Female | Non Specified - Single Edge | Copper Alloy | Flush Mount Top Opening Unthreaded | 0.128 " | 3.25 mm | 0.1 " | 2.54 mm | 9 | Gold | 0.25 Ám | 10 Áin | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Wire Wrap | Single | Cantilever |
 EDAC Inc. | 1 | Diallyl Phthalate (DAP) | Green | 1 | 125 °C | -40 C | 9 | Through Hole | Female | Non Specified - Single Edge | Copper Alloy | 0.1 " | 2.54 mm | 9 | Gold | 0.25 Ám | 10 Áin | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Wire Wrap | Single | Cantilever | |||
 EDAC Inc. | 1 | Diallyl Phthalate (DAP) | Green | 1 | 125 °C | -40 C | 9 | Through Hole | Female | Non Specified - Single Edge | Copper Alloy | 4-40 Flush Mount Threaded Insert Top Opening | 0.1 " | 2.54 mm | 9 | Gold | 0.25 Ám | 10 Áin | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Solder | Single | Cantilever | ||
 EDAC Inc. | 1 | Diallyl Phthalate (DAP) | Green | 1 | 125 °C | -40 C | 9 | Through Hole | Female | Non Specified - Single Edge | Copper Alloy | 4-40 Flush Mount Threaded Insert Top Opening | 0.1 " | 2.54 mm | 9 | Gold | 0.25 Ám | 10 Áin | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Wire Wrap | Single | Cantilever |
