EAST3226 Series

Catalog

LED RGB CLEAR SMD

Part	Color	Lens Style	Millicandela Rating [custom]	Millicandela Rating [custom]	Millicandela Rating [custom]	Package / Case	Package / Case	Size / Dimension [y]	Size / Dimension [x]	Viewing Angle	Mounting Type	Current - Test	Lens Color	Configuration	Voltage - Forward (Vf) (Typ)	Lens Transparency	Height (Max) [z]	Lens Size [y]	Lens Size [x]	Wavelength - Dominant	Wavelength - Peak

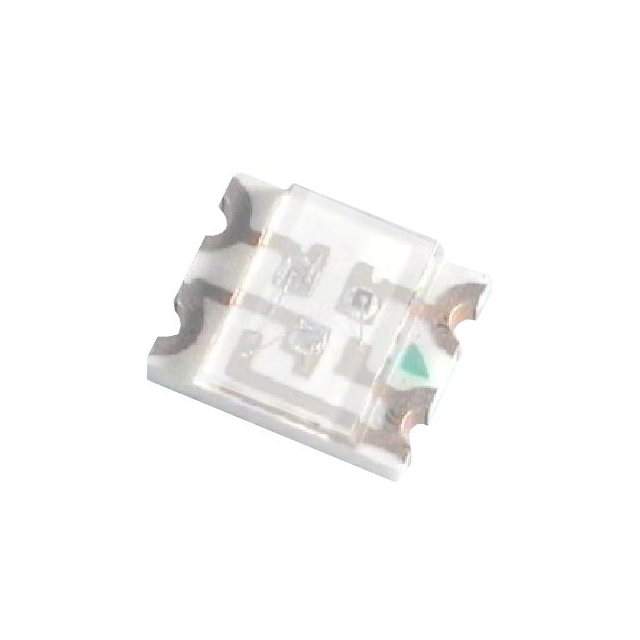

Everlight Electronics Co Ltd EAST3226RGBA0	Blue Green Red	Rectangle with Flat Top	180 mcd	70 mcd	140 mcd	1210	3225 Metric	2.6 mm	3.2 mm	120 °	Surface Mount	20mA Blue 20mA Green 20mA Red	Colorless	Common Anode	2 V 3.3 V 3.3 V	Clear	1.1 mm	2.6 mm	2 mm	470 nm 525 nm 624 nm	468 nm 518 nm 632 nm
