8230 Series

Catalog

FIXED IND 39UH 180MA 3.6 OHM TH

Part	Package / Case	Q @ Freq	Shielding	Material - Core	Type	Frequency - Self Resonant	Tolerance	Current Rating (Amps)	Inductance Frequency - Test	Mounting Type	DC Resistance (DCR) [Max]	Inductance	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [diameter]	Size / Dimension [diameter]	Operating Temperature [Min]	Operating Temperature [Max]	Q @ Freq [custom]	Q @ Freq [custom]	DC Resistance (DCR)

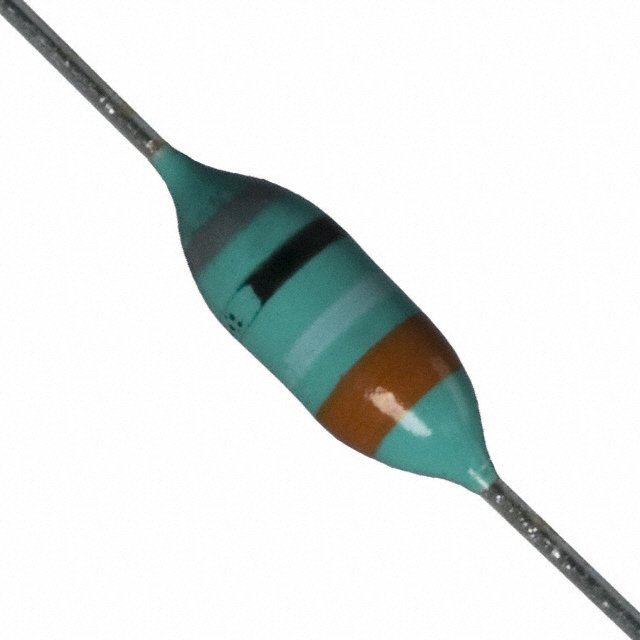

Bourns Inc. 8230-58-RC	Axial	2.5 MHz 45	Unshielded	Ferrite	Drum Core Wirewound	22 MHz	10 %	0.18 A	2.5 MHz	Through Hole	3.6 Ohm	39 µH	0.3 in	7.62 mm	0.12 "	3.05 mm	-55 C	105 ░C

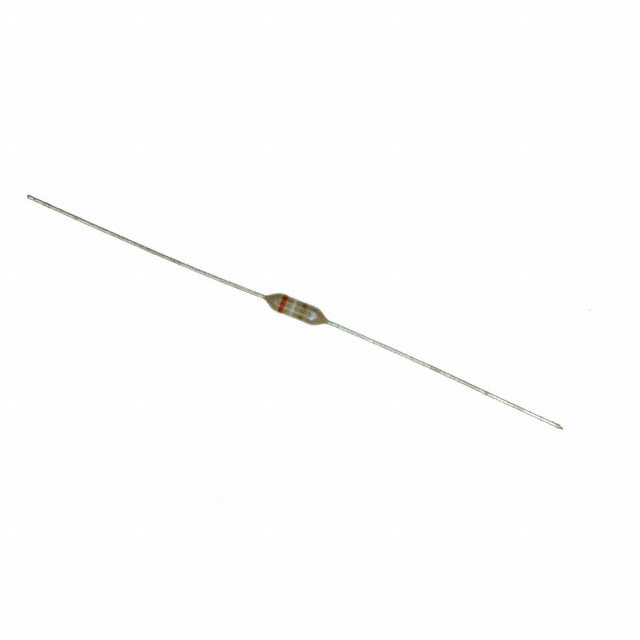

Bourns Inc. 8230-34	Axial		Unshielded	Ferrite	Drum Core Wirewound	82 MHz	10 %	350 mA	7.9 MHz	Through Hole	1 Ohm	3.9 µH	0.3 in	7.62 mm	0.12 "	3.05 mm	-55 C	105 ░C	45	7.9 MHz
Bourns Inc. 8230-02-RC	Axial	25 MHz 35	Unshielded	Phenolic	Wirewound	550 MHz	10 %	1.01 A	25 MHz	Through Hole	120 mOhm	180 nH	0.3 in	7.62 mm	0.12 "	3.05 mm	-55 C	105 ░C

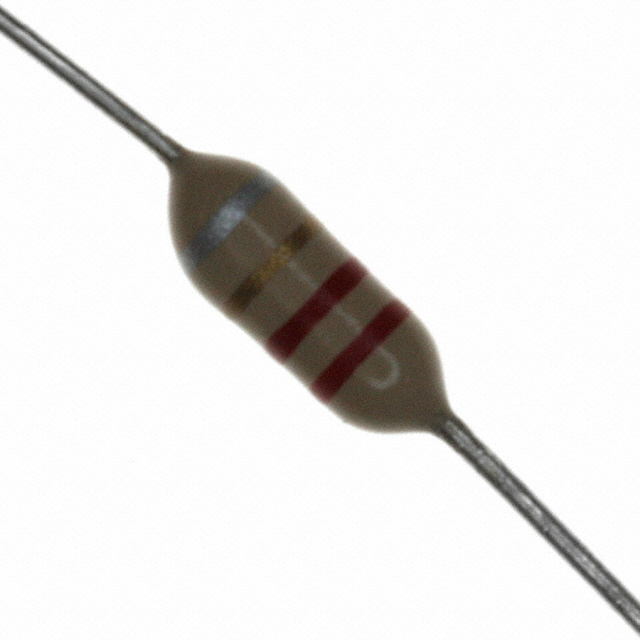

Bourns Inc. 8230-28-RC	Axial		Unshielded	Ferrite	Drum Core Wirewound	115 MHz	10 %	0.55 A	7.9 MHz	Through Hole	400 mOhm	2.2 µH	0.3 in	7.62 mm	0.12 "	3.05 mm	-55 C	105 ░C	30	7.9 MHz

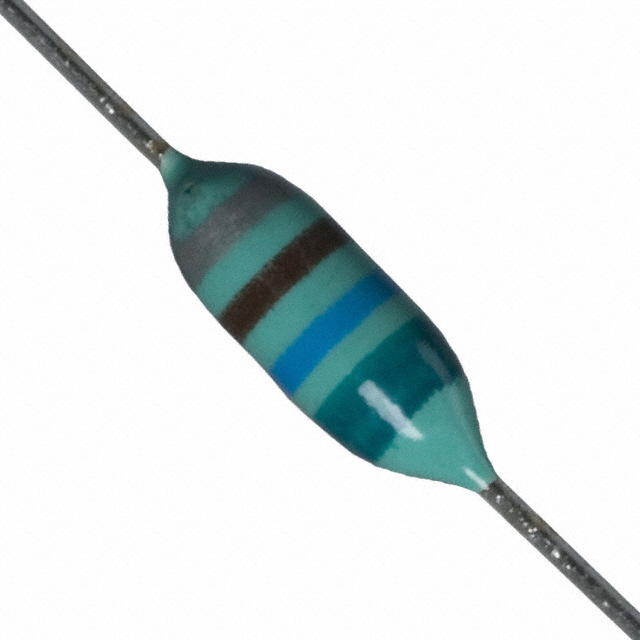

Bourns Inc. 8230-86	Axial	30 790 kHz	Unshielded	Ferrite	Drum Core Wirewound	5 MHz	10 %	48 mA	790 kHz	Through Hole	46 Ohm	560 µH	0.3 in	7.62 mm	0.12 "	3.05 mm	-55 C	105 ░C
Bourns Inc. 8230-62-RC	Axial	2.5 MHz 45	Unshielded	Ferrite	Drum Core Wirewound	18 MHz	10 %	0.145 A	2.5 MHz	Through Hole	5.7 Ohm	56 µH	0.3 in	7.62 mm	0.12 "	3.05 mm	-55 C	105 ░C

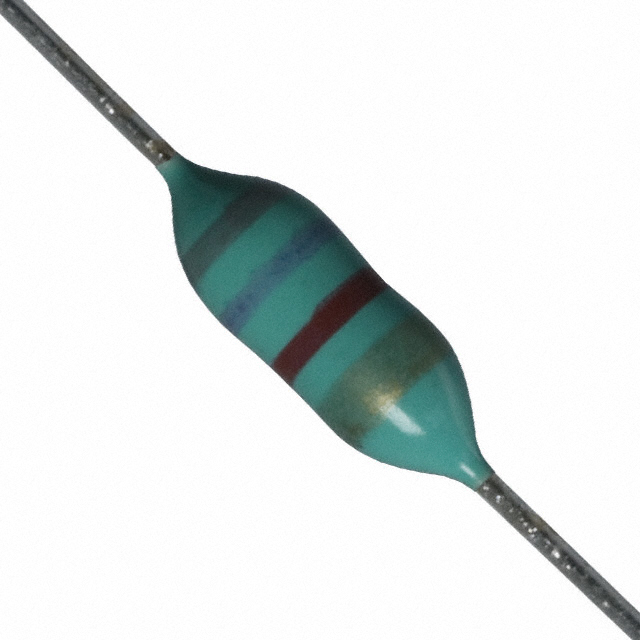

Bourns Inc. 8230-06	Axial	25 MHz 33	Unshielded	Phenolic	Wirewound	430 MHz	10 %	875 mA	25 MHz	Through Hole	160 mOhm	270 nH	0.3 in	7.62 mm	0.12 "	3.05 mm	-55 C	105 ░C

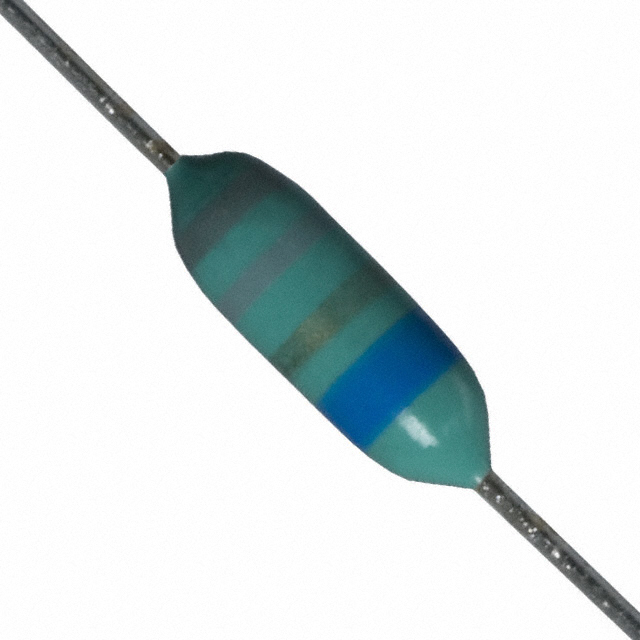

Bourns Inc. 8230-40	Axial	7.9 MHz 50	Unshielded	Ferrite	Drum Core Wirewound	60 MHz	10 %	0.245 A	7.9 MHz	Through Hole	2 Ohm	6.8 µH	0.3 in	7.62 mm	0.12 "	3.05 mm	-55 C	105 ░C

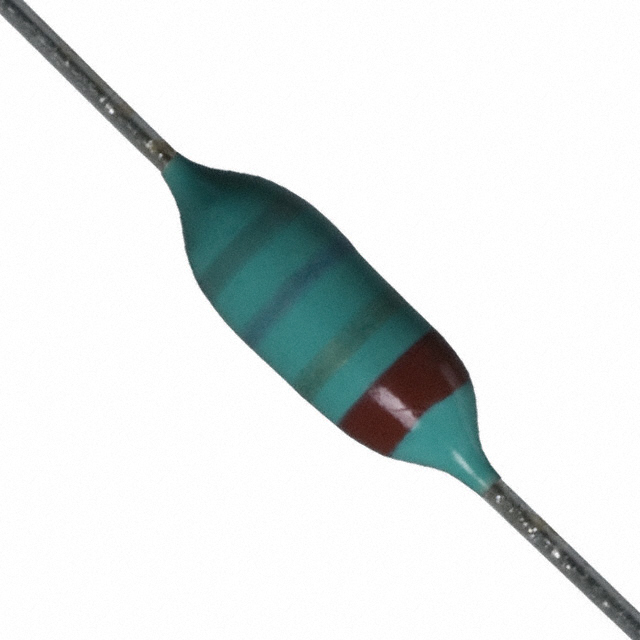

Bourns Inc. 8230-30-RC	Axial	37	Unshielded	Ferrite	Drum Core Wirewound	100 MHz	10 %	495 mA	7.9 MHz	Through Hole	500 mOhm	2.7 µH	0.3 in	7.62 mm	0.12 "	3.05 mm	-55 C	105 ░C

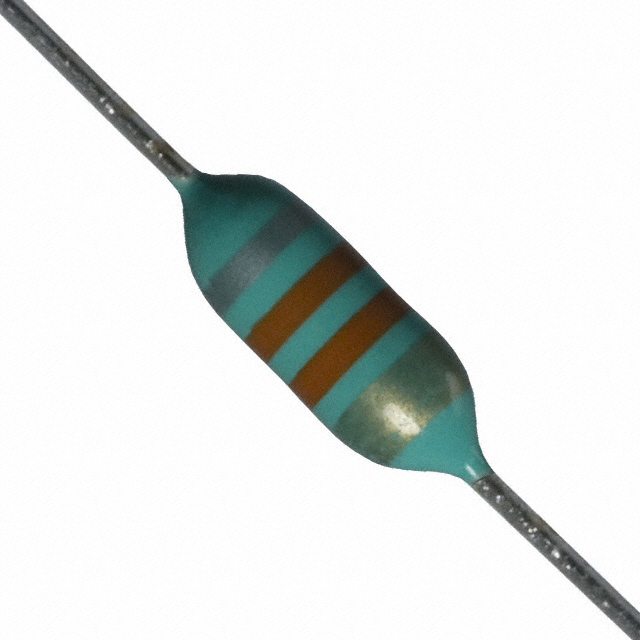

Bourns Inc. 8230-08-RC	Axial	30	Unshielded	Phenolic	Wirewound	410 MHz	10 %	780 mA	25 MHz	Through Hole		330 nH	0.3 in	7.62 mm	0.12 "	3.05 mm	-55 C	105 ░C			200 mOhm
